WHEEL LOADER ZL30

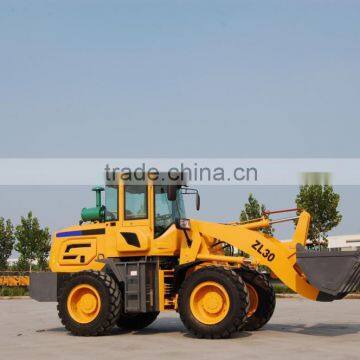

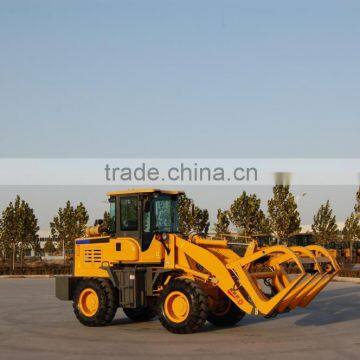

1.Machine photos:
2. Main specification:
Performance |
Rated Load |
2800 kg |
|
Total weight |
7000 kg |
|
Rated Bucket Capacity |
1.5 m3 |
|
Max.Gradeability |
30° |
|
Dumping Height |
3500mm |
|
Overall Dimemsions(LxWxH) |
6400x2180x2900mm |
|
Min.Turning Radius |
4800mm |
Engine |
Model |
YTO(YTR4108)/CUMMINS(4BTA3.9-C100) |
|
Type |
In-line,Water-colled,Four-stroke,Direct injection, four- cylinder |
|
Rated Power |
74.9kw/74kw |
|
Rated Speed |
2400 rpm |
Transmission |
Gear box |
Counter shaft power shift |
|
Torque converter |
XN280 |
|
Gear Shift |
2 forward,2 reverse |
|
Max.Speed |
30 km/h |
Drive Axle |
Model of Axle |
Hub Reduction Axle |
|
Wheel Base |
2400 mm |
Hydraulic System |
System Working Pressure |
16 Mpa |
|
Raising Time |
≤ 4.5 s |
|
Total Cycle Time |
≤ 9.0 s |
|
function of leveling automatically |
Yes |
Brake system |
Service Brake |
Hydraulic,Expansion-shoe Brake on 4 wheels |
|
Parking Brake |
No parking brake |
Tyre |
Type Specification |
16/70-24 |
|
Front Tyre Pressure |
0.3 Mpa |
|
Rear Tyre Pressure |
0.28 Mpa |
3. Our some the other machinery photos:
4. Production range:
We are power engineering machinery manufacturer in China, we produce the Excavator, Backhoe loader,Concrete pump, Concrete pump truck and the spare parts(Track shoe,Track chain,Idler,Sprocket,Track roller,Carrier roller,Pin,Bushings,Bucket,Narrow bucket,4-1 Bucket,Quick hitch,Quick coupling plate,Log grapple).
We produce many parts buy ourselves, so we can low the cost and make sure the high stable quality, and can give you the best price. Choose our company as your partner is your better choice now, we have the power and experience to make both of us good profit.
Now,On the world,JCB Backhoe loader is the FIRST, our Backhoe loader is the SECOND! We do all the things follow JCB !
Andy
FAX:0086 635 5663777 / 5846000 TEL:0086 155 6355 7938 / 158 6438 7938
EMAILl: Lau# SKYPE: Laugroup QQ: 864876253 Whatsapp: 0086 155 6355 7938
Shandong Rhinoceros Engineering Machinery Co.,Ltd
Website:
Video link:/u/UMTM4MTA2MjIw/videos
5. Some our customers photos:
