1000kg 4wd Articulated Hydraulic Mini Wheel Loader With Heavy Duty Axle and Different Optional Attachments

1000kg 4wd Articulated Hydraulic Mini Wheel Loader With Heavy Duty Axle and Different Optional Attachments photo-1

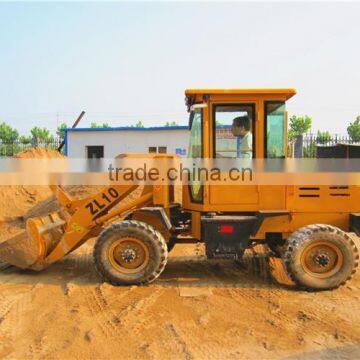

1000kg 4wd Articulated Hydraulic Mini Wheel Loader With Heavy Duty Axle and Different Optional Attachments photo-2
1000kg 4wd Articulated Hydraulic Mini Wheel Loader With Heavy Duty Axle and Different Optional Attachments photo-3
1000kg 4wd Articulated Hydraulic Mini Wheel Loader With Heavy Duty Axle and Different Optional Attachments photo-4

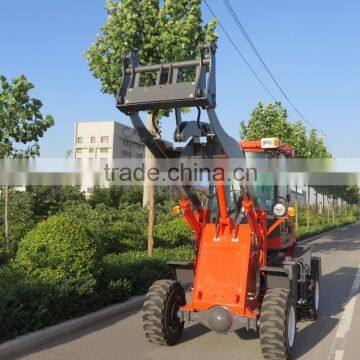

1000kg 4wd Articulated Hydraulic Mini Wheel Loader With Heavy Duty Axle and Different Optional Attachments photo-5

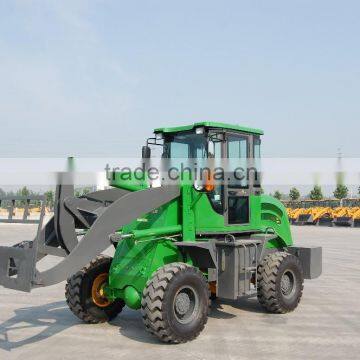

1000kg 4wd Articulated Hydraulic Mini Wheel Loader With Heavy Duty Axle and Different Optional Attachments photo-6
US$ 11,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
RHINOCEROS
Model Number:
ZL10
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO SEA PORT
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name RHINOCEROS
Model Number ZL10
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 4800x1600x2470mm
Rated Load 1000kg
Certification CE ISO
Warranty one year
After-sales Service Provided Overseas third-party support available

WHEEL LOADER ZL10



1.Machine photos:

1000kg 4wd articulated hydraulic mini wheel loader with heavy duty axle and different optional attachments1000kg 4wd articulated hydraulic mini wheel loader with heavy duty axle and different optional attachments1000kg 4wd articulated hydraulic mini wheel loader with heavy duty axle and different optional attachments

1000kg 4wd articulated hydraulic mini wheel loader with heavy duty axle and different optional attachments1000kg 4wd articulated hydraulic mini wheel loader with heavy duty axle and different optional attachments1000kg 4wd articulated hydraulic mini wheel loader with heavy duty axle and different optional attachments



2. Main specification:

Performance

Rated Load

1000 kg



Total weight

2700 kg



Rated Bucket Capacity

0.4 m3



Max.Gradeability

30°



Dumping Height

2700mm



Overall Dimemsions(LxWxH)

4800x1600x2470



Min.Turning Radius

3900mm

Engine

Model

changchai L28 diesel engine



Type

In-line,Water-colled,Four-stroke,Direct injection, single- cylinder



Rated Power

20 kw



Rated Speed

2200 rpm

Transmission

Gear box

countershaft powershift gearbox



Torque converter

Stick Shift,without TC



Gear Shift

2 forward,1 reverse



Max.Speed

25 km/h

Drive Axle

Model of Axle

Isuzu Axle



Wheel Base

1950 mm

Hydraulic System

System Working Pressure

16 Mpa



Raising Time

 4.5 s



Total Cycle Time

 9.0 s



function of leveling automatically

Yes

Brake system

Service Brake

Hydraulic,Expansion-shoe Brake on 4 wheels



Parking Brake

Drum-Type Shoe Brake

Tyre

Type Specification

8.25-16



Front Tyre Pressure

0.3 Mpa



Rear Tyre Pressure

0.28 Mpa



3. Our some the other machinery photos:

1000kg 4wd articulated hydraulic mini wheel loader with heavy duty axle and different optional attachments1000kg 4wd articulated hydraulic mini wheel loader with heavy duty axle and different optional attachments1000kg 4wd articulated hydraulic mini wheel loader with heavy duty axle and different optional attachments1000kg 4wd articulated hydraulic mini wheel loader with heavy duty axle and different optional attachments1000kg 4wd articulated hydraulic mini wheel loader with heavy duty axle and different optional attachments

1000kg 4wd articulated hydraulic mini wheel loader with heavy duty axle and different optional attachments1000kg 4wd articulated hydraulic mini wheel loader with heavy duty axle and different optional attachments

1000kg 4wd articulated hydraulic mini wheel loader with heavy duty axle and different optional attachments



4. Production range:

We are power engineering machinery manufacturer in China, we produce the Excavator, Backhoe loader, Loader, Skid steer loader, Concrete pump, Concrete pump truck and the spare parts(Track shoe,Track chain,Idler,Sprocket,Track roller,Carrier roller,Pin,Bushings,Bucket,Narrow bucket,4-1 Bucket,Quick hitch,Quick coupling plate,Log grapple).



We produce many parts buy ourselves, so we can low the cost and make sure the high stable quality, and can give you the best price. Choose our company as your partner is your better choice now, we have the power and experience to make both of us good profit.
