SKID STEER LOADER 45
1. Skid steer loader Specification:
ITEM |
DATABASE |
Maker/Model |
XINCHAI490 |
Net power |
37KW/2450rpm |
Type |
4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
Displacement(L) |
3.168 |
Rated operating capacity(kg) |
700 |
Tipping load(kg) |
1400 |
Bucket capacity(m3) |
0.4 |
Operationg weight(kg) |
2800 |
Max. travel speed(km/h) |
12 |
Hydraulic pump flow(L/min) |
62.5 |
Fuel/Hyd oil tank capacity(L) |
50/50 |
Tires |
10/16.5NHS |
Overall dimensions(mm) |
2900×1740×2050 |
Height at maximum extension(mm) |
3670 |
Height to bucket hinge pin(mm) |
2900 |
Width with bucket(mm) |
1740 |
Track width(mm) |
1450 |
Wheelbase(mm) |
991 |
Ground clearance(mm) |
185 |
Dump angle |
40° |
Dumping height(mm) |
2300 |
Maximum Reach(mm) |
710 |
Rollback at ground |
26° |
Angle of departure |
20° |
Pump |
Germany Rexroth |
Motor |
Italy BONDIOLI |
Gear pump/Cylinder |
Italy BONDIOLI |
Multi Valve/Pilot valve |
Italy BONDIOLI |
Adjust balance valve |
USA SAUER |
Quick hitch |
Italy DNP |

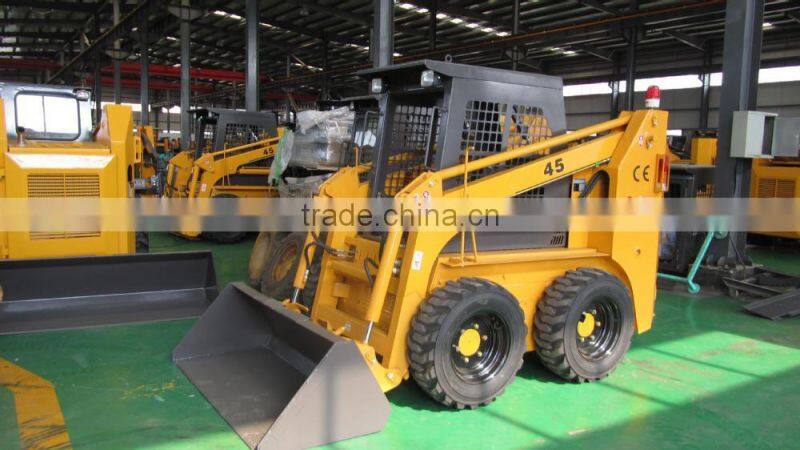

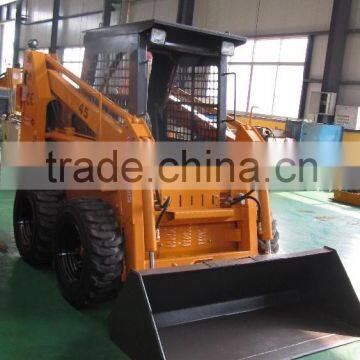

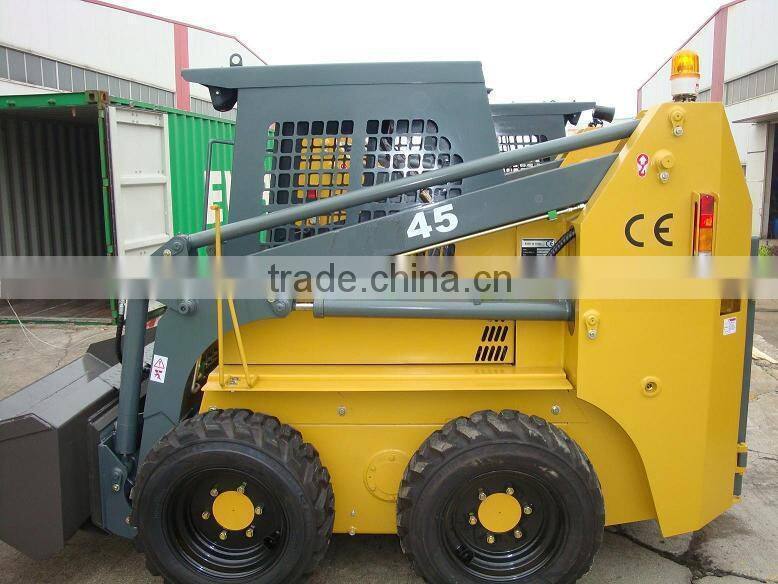

2. Skid steer loader photos:
3. Standard skid steer loader:
Deluxe enclosed operator cab
Hydraulic joystick controls
Standard bucket
Prehest starting assist system for extreme cold weather
Auxiliary hydraulic couplers
4.Optional for skid steer loader:
1. Air conditioner ( +USD800) Cab fitted with a heater as standard(+USD160)
2. Speed transmission system(+USD3300)

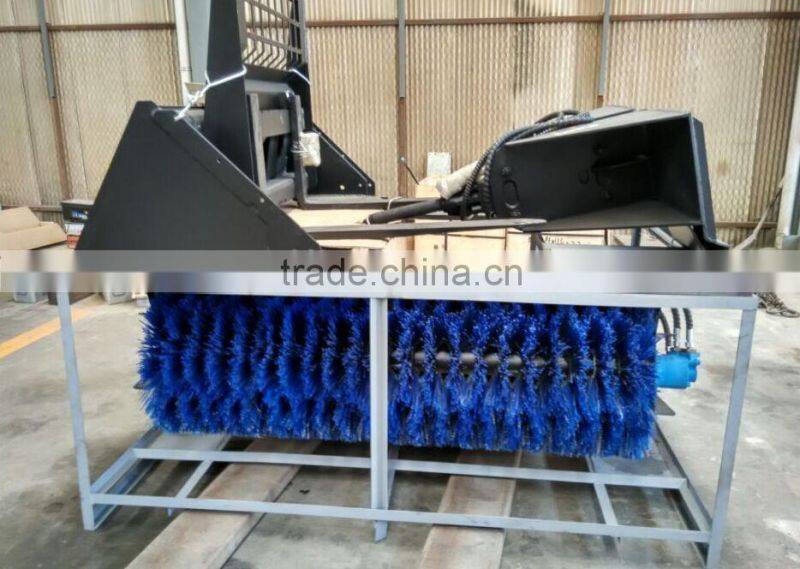

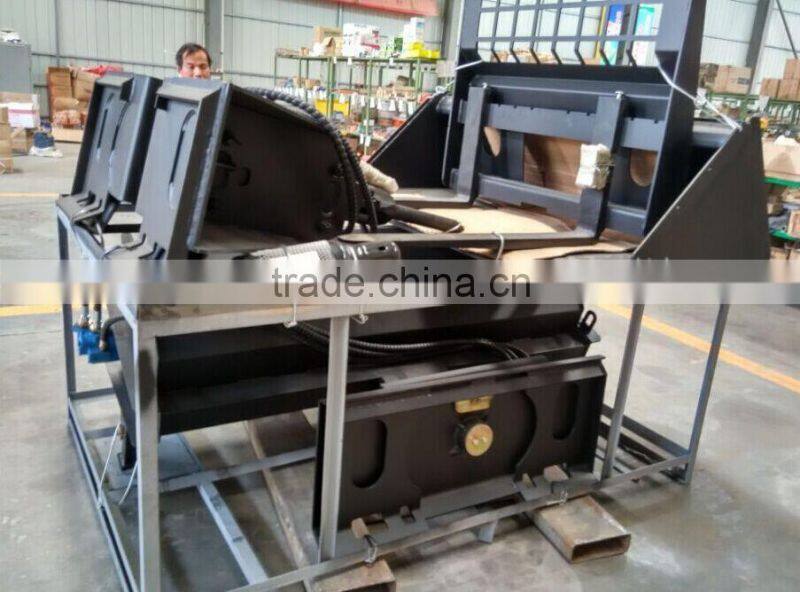

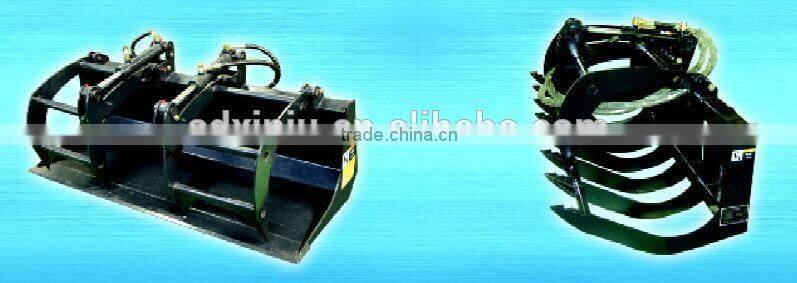

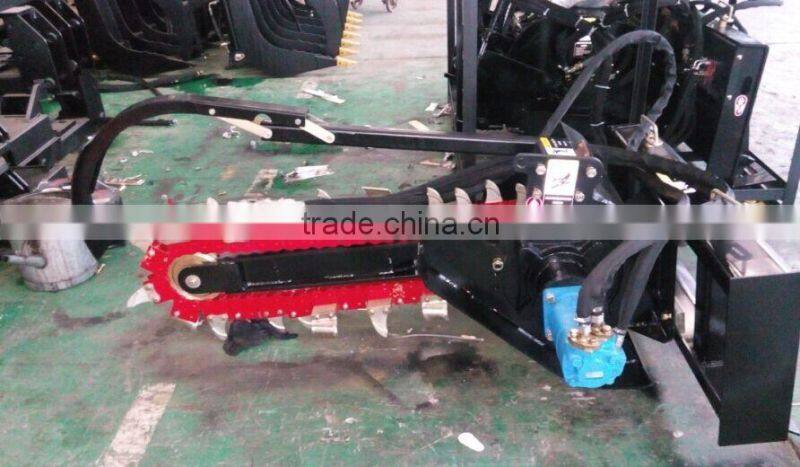

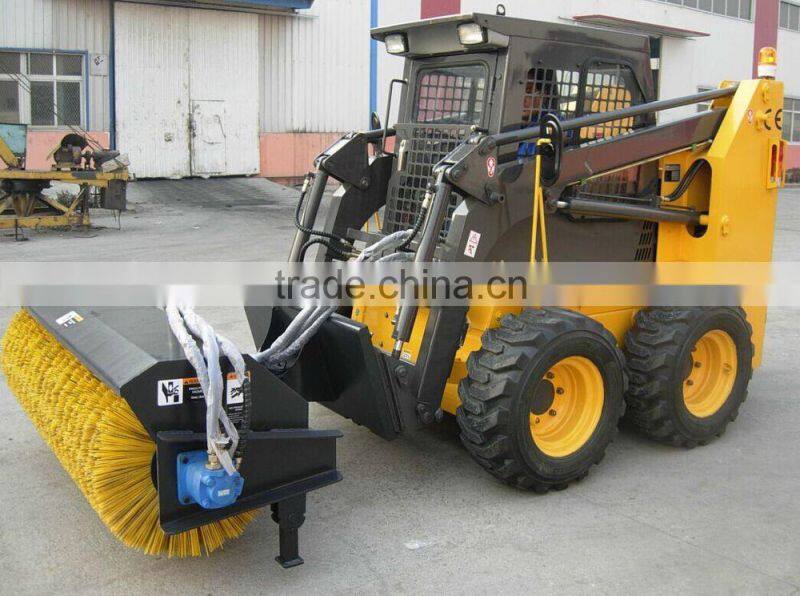

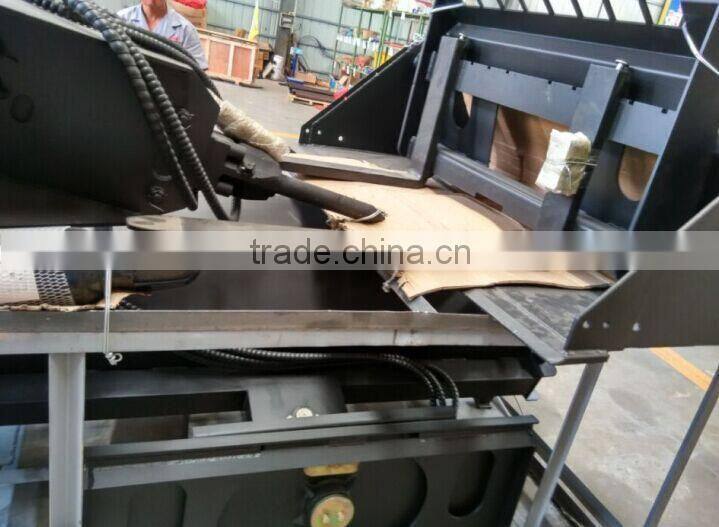

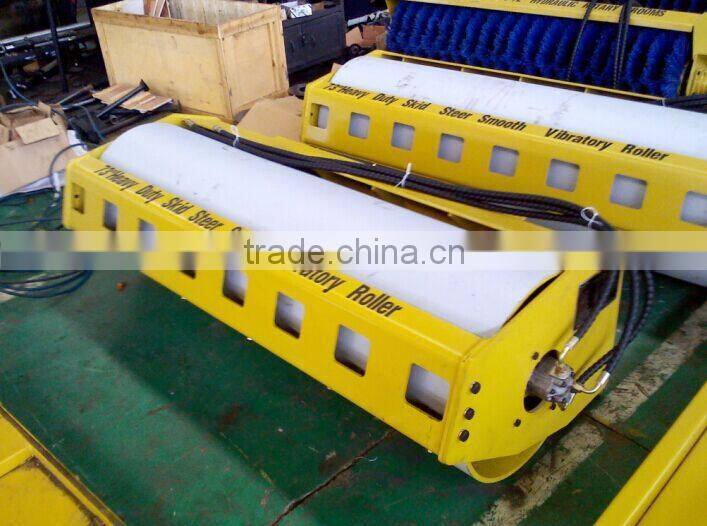

Attachments:Breaker,Angle blade,Auger,Sweeper,Pallet fork, Combinition bucket,Mower,Asphalt cutter,and so on

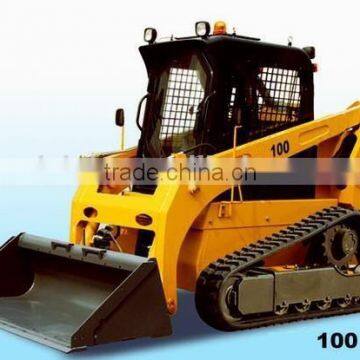

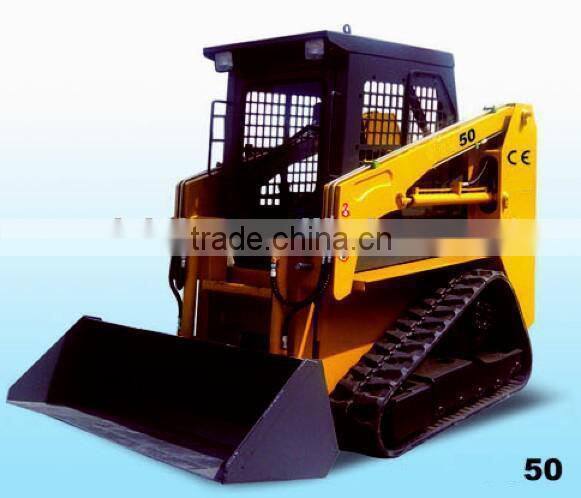

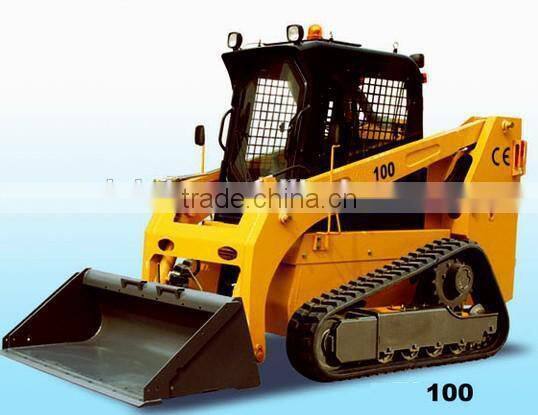

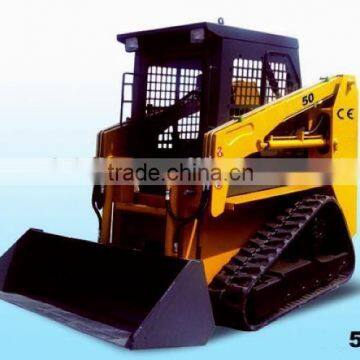

5.Track skid steer loader for your choose:

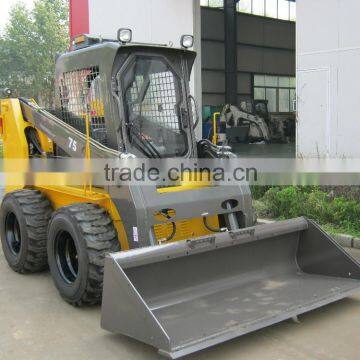

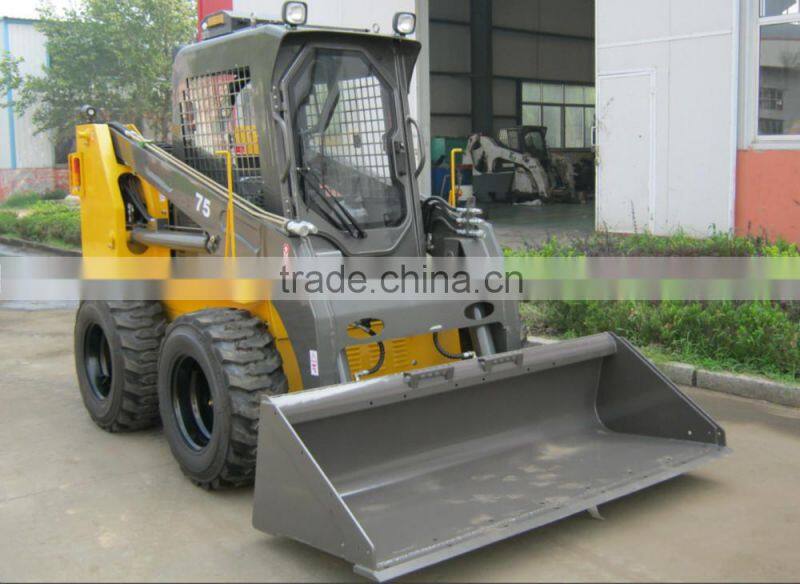

6. Our the other skid steer loader photos:
