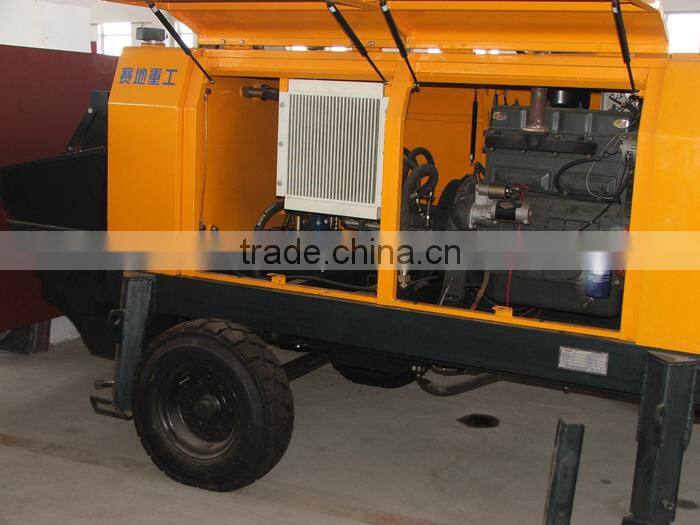

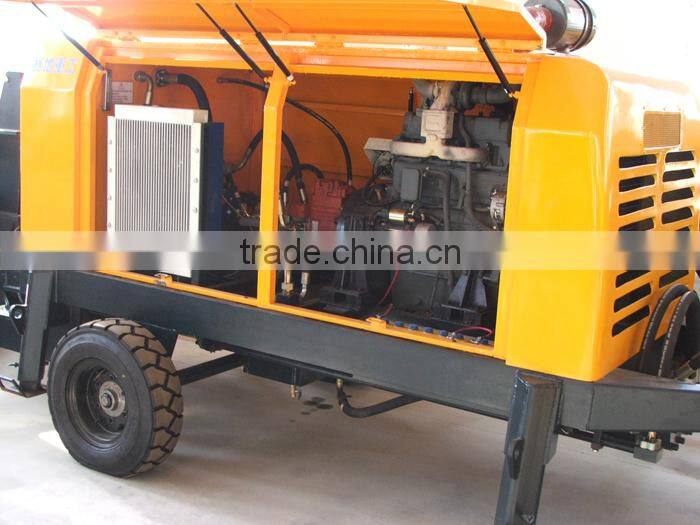

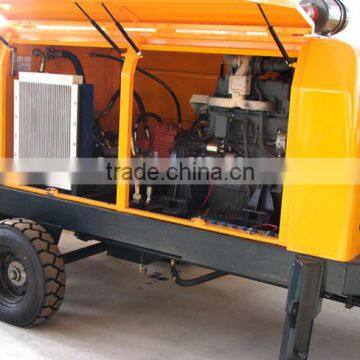

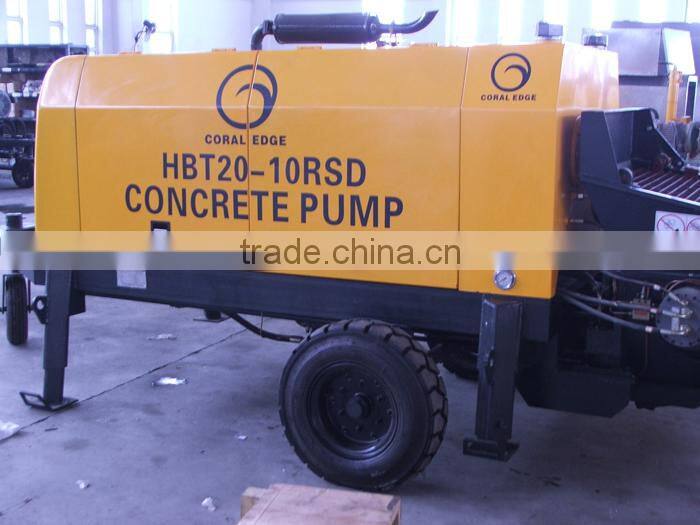

20 30 40 60 80m3/h small mini diesel concrete pump electric towed trailer concrete pump for sale in china
HBT 20, HBT30, HBT40, HBT50, HBT60, HBT80

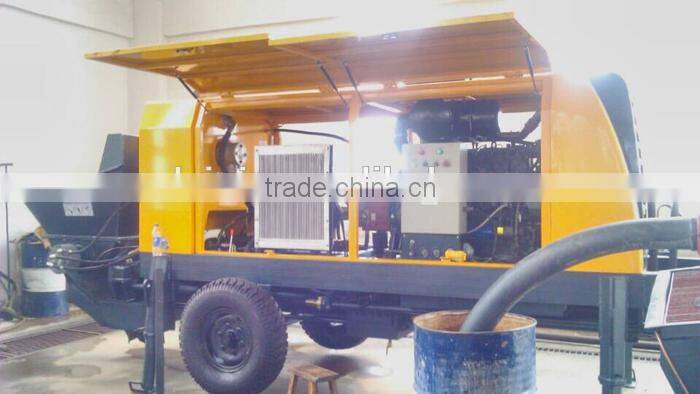

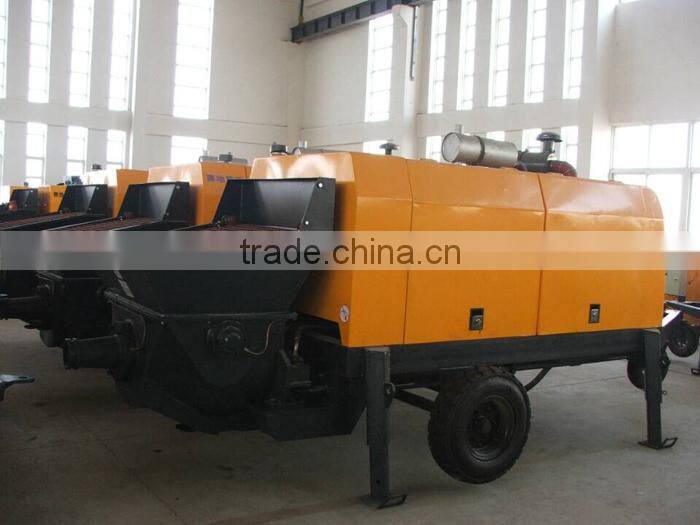

Towed concrete pump
1. Max. theoretical concrete output(m³/h): 21
2. Theoretical vertical conveying height(m): 55
3. Theoretical Horizontal transmission distance(m): 350
4. Engline: weichai
5. Rated power(kw): 40
6. Hydraulic oil tank volume(L): 120
7. Overall dimension(L×W×H) : 4300×1670×1680
Technical parameters:
Model No./Concrete pump |
HBT20 |
Max. theoretical concrete output(m³/h) |
Low pressure 21/high pressure 12 |
Max. theoretical concrete pumping pressure(Mpa) |
Low pressure 5.5 /high pressure 10 |
Theoretical vertical conveying height(m) |
Low pressure55 /high pressure 130 |
Theoretical Horizontal transmission distance(m) |
350 |
Allowing the concrete slump(mm) |
100-230 |
Max. Aggregate particles(mm) |
25/30 |

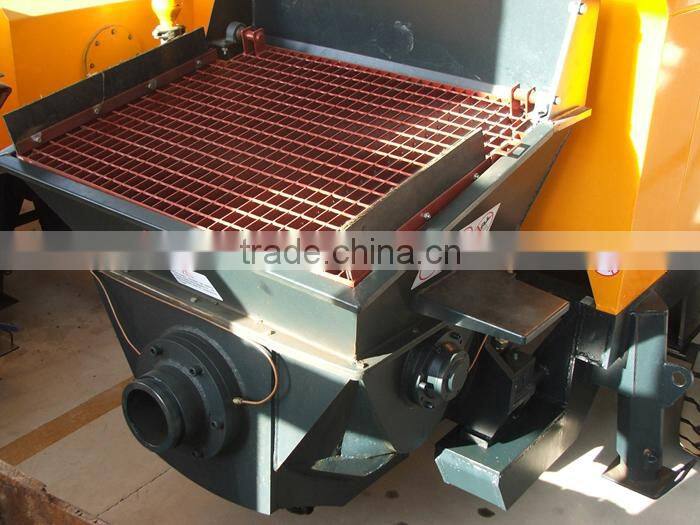

Hopper volume(m³) |
0.4 |
Filling height(mm) |
1100 |
Rated power(kw) |
40 |
Hydraulic system |
Double circuit opening system |
Hydraulic oil tank volume(L) |
120 |
The radiator cooling |
Air cooling system |

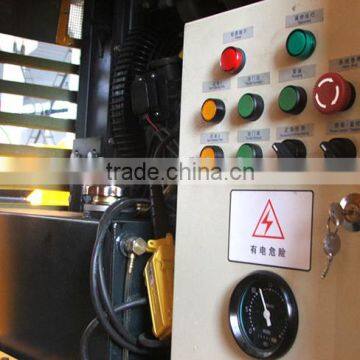

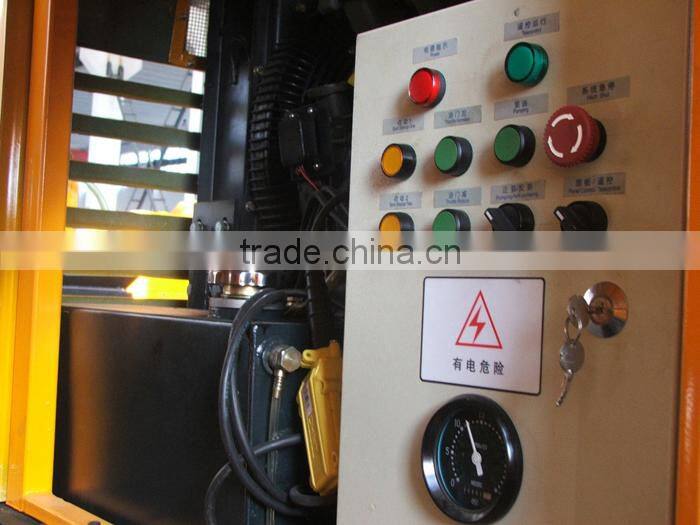

Electric control |
PLC |
Concrete tube conveying diameter(mm) |
Φ76/Φ89 |
Overall dimension(L×W×H)(mm) |
4300×1670×1680 |
Total weight(kg) |
2500 |
Hydraulic pump type |
Ram pump |
Besides the towed concrete pump,we also produce the concrete pump truck. please contact me for more information
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers,
Each machine is carefully tested before send to customer.
Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: Two units can be in a 40HQ, but if you order one unit, also need a 40HQ. The machine wheels will be taken off and install a special made steel wheel, in order to lower the height. Then the machine can be drive in and out the container. The steel wheel is offered for free.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply.
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year. There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
How to contact us ?
For more information, Pls type the message here and send the inquiry, click “send” now. I will reply to you right now.
