7000kg Backhoe Loader Small Construction Backhoe Loader

7000kg Backhoe Loader Small Construction Backhoe Loader photo-1

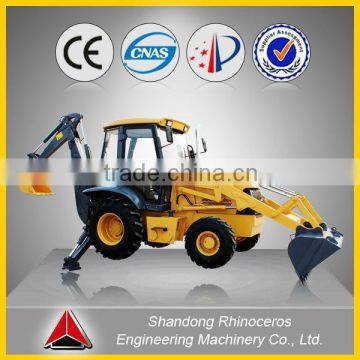

7000kg Backhoe Loader Small Construction Backhoe Loader photo-2

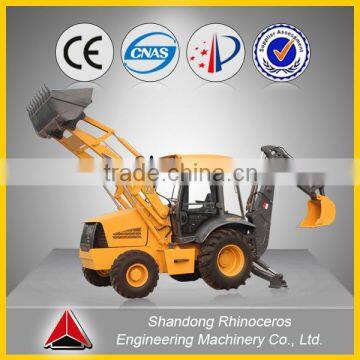

7000kg Backhoe Loader Small Construction Backhoe Loader photo-3

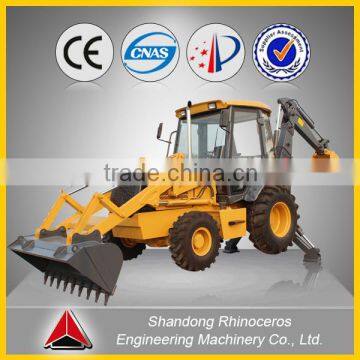

7000kg Backhoe Loader Small Construction Backhoe Loader photo-4

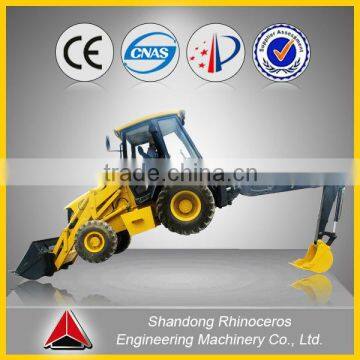

7000kg Backhoe Loader Small Construction Backhoe Loader photo-5

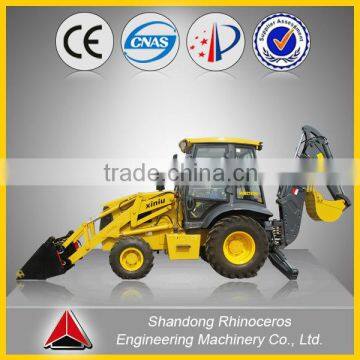

7000kg Backhoe Loader Small Construction Backhoe Loader photo-6
US$ 33,000 - 34,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
Rhinoceros/XINIU
Model Number:
XNWZ74180-4L backhoe loader
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name Rhinoceros/XINIU
Model Number XNWZ74180-4L backhoe loader
Place of Origin Shandong, China
Type Backhoe Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 7400*2170*2950mm
Rated Load 1800Kg
Certification CE&ISO&TUV
Warranty 2000 working hours
After-sales Service Provided Engineers available to service machinery overseas

7000kg backhoe loader with spare parts for sale

Product Application:

1.ORIGINAL CUMMINS ENGINE (60kw), Low fuel consumption, low noise and strong power, more efficient and economical, the emission meet to EURO 3 standard.
2.Imported PERMCO brand -high quality, long service.
3.EATON Pilot joystick handler, ensure the accuracy and flexibility of each movement.
4.International famous brand front & rear axles same to CARRARO helps steer easily, efficient hydraulic torque converter provides ease and great comfort of operation.

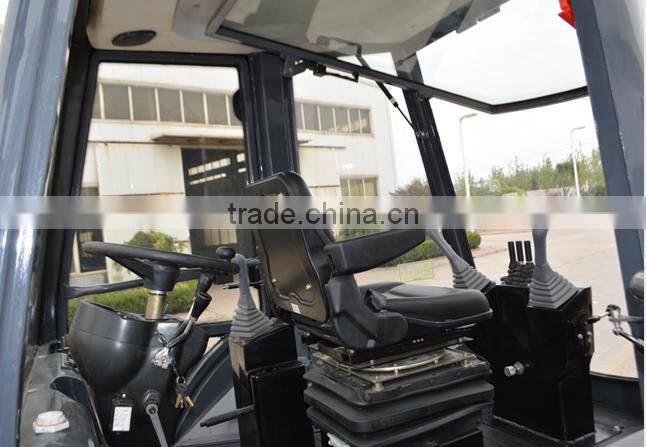

5.The super cab is designed with principle of ergonomics to provide the operator a low-noise environment, and possesses fine shock absorption.

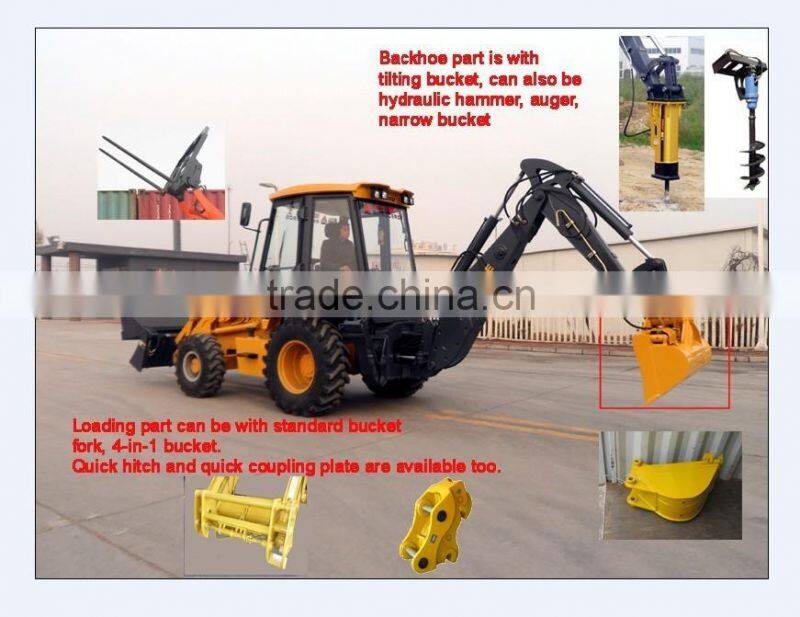

6.Hydraulic accessories option: 4-in-1 bucket, quick coupling plate, driller, forklift, quick hitch, hydraulic hammer, narrow bucket, tilting bucket.

7000kg backhoe loader small construction backhoe loader

Detail Information:

General information

Total weight

7000 kg

Overall dimension

7400x2170x2950 mm

Turning radius

3500 mm

Backhoe bucket capacity

0.25-0.3cbm (800kgs)

Loading bucket capacity

1.0 cbm (2200kgs)

Engine

Model

YTO/ CUMMINS

No. of cylinders, type

4 cylinders in line, water cooled

Bore and stroke

95x115 (mm)

Displacement

3.3L

Rated power/rotating speed

51.5kw/ 60kw

Transmission system

Hydraulic torque converter

XN280

Drive Method (2 x 4 or 4 x 4)

4x4

Speed

First forward

6 km/h

Second forward

14.5 km/h

First reverse

6 km/h

Second reverse

14.5 km/h

Axle

Axle type

Hub reduction axle

Front axle track

2110 mm

Rear axel track

1800 mm

Hydraulic system

Hydraulic Motor

SHENGHENG BRAND

Model

3020

Flow rate

80 L/min

Working pressure

22.5 Mpa

Pilot joystick handler

EATON brand

Multitandem valve

TAIFENG / RUILONG brand

Electrical system

Voltage

12 V

Alternator capacity

4 kw

Battery capacity

210 Ah

Front wheels (size & ply rating)

21.5-16

Rear wheels (size & ply rating)

15-24

Diesel fuel tank

125 L

Hydraulic system fluid

132 L

Backhoe part

Backhoe bucket width

560 mm

Backhoe bucket weight

185 kg

Maximum outrigger width (extended)

2900 mm

Minimum outrigger width (transport)

2020 mm

Loader part



Bucket width

2030 mm

Bucket weight

350 kg



7000kg backhoe loader small construction backhoe loader



7000kg backhoe loader small construction backhoe loader



7000kg backhoe loader small construction backhoe loader

  • With original CUMMINS engine,
  • 4 by 4 wheel drive
  • motor system use EATON brand from USA
  • pilot joystick easy control
  • beautiful cab similar to JCB 3cx
  • with A/C for option
  • good quality stable performance
  • many accessories could install on the machine, such as hydraulic hammer, quick hitch, forks, narrow buckets...
  • Best Factory price!

7000kg backhoe loader small construction backhoe loader



7000kg backhoe loader small construction backhoe loader



7000kg backhoe loader small construction backhoe loader



7000kg backhoe loader small construction backhoe loader

7000kg backhoe loader small construction backhoe loader

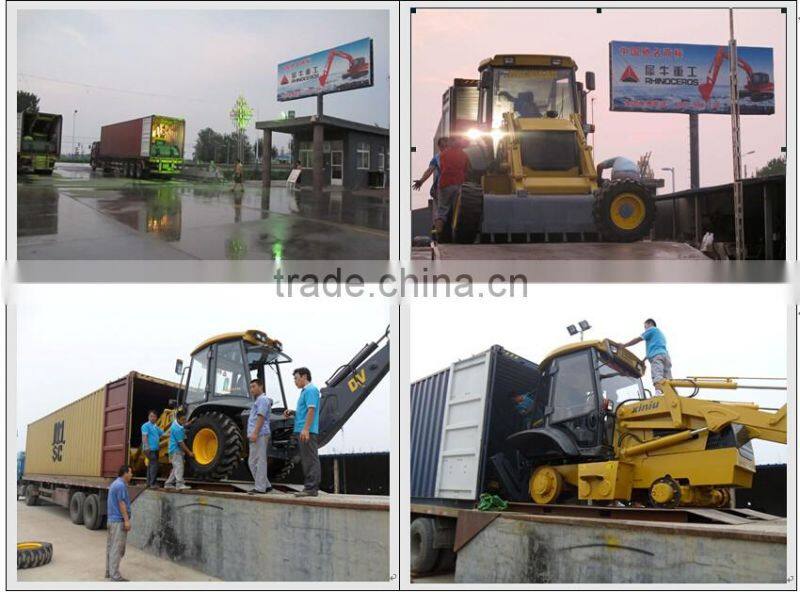

Packaging & Shipping

1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.

2. Spare parts or wearing parts will be packed in wooden box or paper carton.
3. Standard shipping method is by container, most of our excavator and backhoe loader can be loaded in container.

7000kg backhoe loader small construction backhoe loader

Our Services:

We try our best to making your experience with us a positive one and therefore we stand behind everything we sell.

This item comes with 1 years or 1200 working hours manufacturers warranty whichever comes first.

Pre-sale service:
Call us no matter cooperate or not. you may get unexpected harvest. We would discuss the future development of this line together according to many years experience on selling and producing which could help to enlarge the profits and improvement for both of us.
Studying the customer's requirement carefully, we would help customer to choose the most suitable machine and will offer you the relative samples and suggestions promotely and considerately, according to customer's production scale and technical requirements.

Selling service:
Promotely and paintely answer customer's questions. put our heart and soul into service for customer, including supply some suggestions on choosing the place, how to save cost, and play the maxium value of our machine

After-sale Service:

1. our technicians will provide on-site service to customers in china. We will supply the whole day online service to foreign customers. According to foreign customer's requirement, we will arrange technicians go abroad to install or maintenance the machine if necessary.

2. within the warranty period and the machine parts damage under normal using condition, we will offer free new ones for replacement.

3. after the expiry of warranty, we can renewal of the contract, which can enjoy the same service as that during the warranty period.

Certifications:

7000kg backhoe loader small construction backhoe loader

Company Information:

7000kg backhoe loader small construction backhoe loader



Photos of our customer:

7000kg backhoe loader small construction backhoe loader

RHINOCEROS PRODUCT:

7000kg backhoe loader small construction backhoe loader

All of our products include:

1) crawler excavator: 6t, 7t, 8.4t, 13.5ton;

2) wheel excavator: 5t, 6t, 7t, 8t 10t 15ton, 2wheel driven or 4 wheel driven;
3) backhoe loader XNWZ74180, 7ton, similar to JCB 3cx but much cheaper;XN780 ,6 ton;XN880,8 ton
4) concrete pump, 22m 25m and 28 meters sizes.
All products good quality with CE ISO certification, and we sold in a very economic price
