Specifications

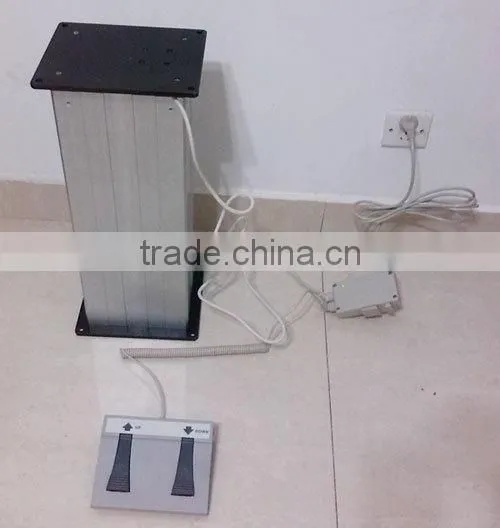

Lifting Column with footswitch1.load:1000N,3000N,4000N
2. stroke:120mm,200mm,250mm,300mm
3. CE certificate

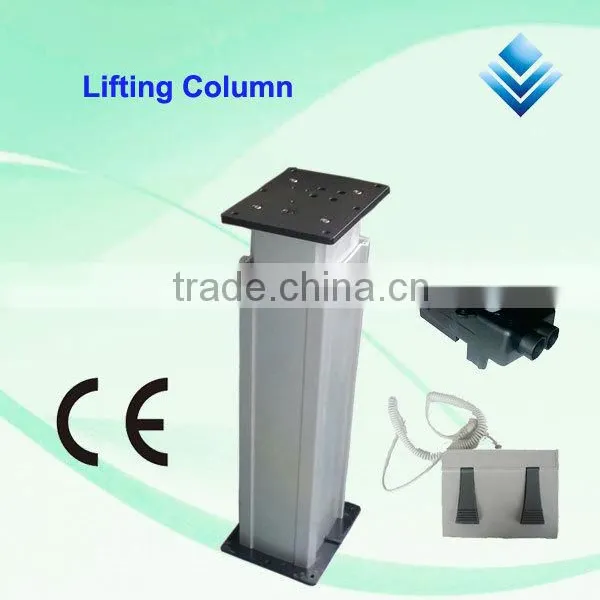

lifting column
RS-LC2 Lifting Column is a system is for lifting and lowering an object, such as a vehicle.
Such a system includes at least two mobile lifting columns with: a displaceable frame with a standing mast part; a carrier displaceable along the mast part for engaging the object to be lifted;
a drive for moving the carrier along the mast part;
a control for controlling at least the drive;
Specification: of our lifting column factory:
24VDC lifting column, 12V DC lift column
stroke of lifting column: 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm
Load capacity: 2000N, 6000N lifting colum
No load lifting speed : 13 mm /s when 2000N lift, 3mm/s when 6000N lifting
10% duty type
Ambient temperature: -25 °C ~ 65 °C
IP 43 lifting column
actuators with built-in limit switches (could not adjustable after production)
Low noise: db<45 (A)
CE Certification lifting column
Description |
LC SERIES ELECTRIC LIFTING COLUMN |
|||
Composition |
Rotor, Lead Screw, Aluminium Tube, Plastic Case |
|||
Model No. |
LC1000 |
LC3000 |
LC4000 |
LC6000 |
Max Thrust |
1000N |
3000N |
4000N |
6000N |
Standard Stroke |
50-600(MM) |
50-600(MM) |
50-600(MM) |
50-600(MM) |
Min. Install Dimension |
175+Stroke(MM) |
175+Stroke(MM) |
175+Stroke(MM) |
175+Stroke(MM) |
Max Pull |
750N |
2500N |
3000N |
4500N |
Self-Lock |
750N |
2000N |
3000N |
4000N |
Max Speed |
30mm/s |
18mm/s |
13mm/s |
6.5mm/s |
Limit Switch |
Built-in |
Built-in |
Built-in |
Built-in |
Carton size |
44.5X32.5X20cm |
44.5X32.5X20cm |
44.5X32.5X20cm |
44.5X32.5X20cm |
