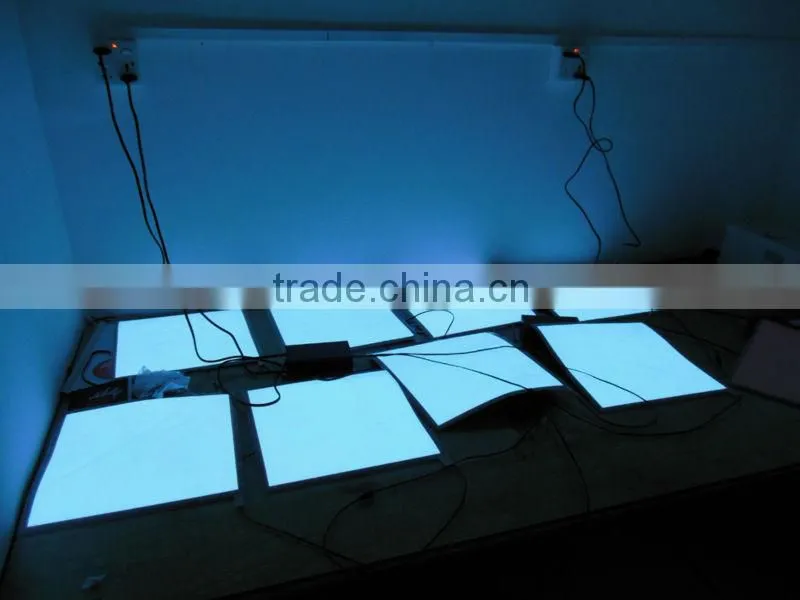

1 X 2M High brightness white color El backlight with AC110-240V Super quality inverter

Electroluminescence(EL) is an optical phenomenon and electrical phenomenon in which a material emits light in response to the passage of an electric current or to a strong electric field. It is a new generation products in global lighting and display industry. The Brightness per unit area EL increases with increased voltage and frequency.

Electroluminescence(EL) can be full area lighting as backlight, also able to be with vivid animation for advertisement. It is capable of constant lighting, flash, light control, and sound control, and produces novel and cheerful effect.

EL Backlight Panel Main features:

1. No heat generated, low power needed.

2. Gives gentle soft lights.

3. Light weight,waterproof, flexible and able to roll .

4. Customize size, shape, and color.

5. Fast delivery, easy to assemble.

Specification:

Size: A6, A5, A4, A3, A2, A1 ,A0 ,1m X 2m and we also can make your custom design

Best Applied Voltage: 100~120VAC

Best Applied Frequency: 800HZ~1200HZ

Power(100vrms/800Hz): 50W/sq m(±5)

Brightness(100vrm/800Hz): Above 70cd /sq m

Operating Temperature: -30°C~50°C(Nor.)/ 80°C(Max)

Storage Temperature: -30°C~70°C

Operating Humidity: 0%~90%

Bend Radius: 0.25"-Normal 2nd Generation Foil-Foldable

Normal Edge Seal: 0.04" (1mm)

Min. Edge Seal: 0.02" (0.5mm)

Lead Pulling: 0.5kg 10sec.

Soldering Heat Resistance: 250°C 3sec>3mm distance from EL panel with extra force applied.

Half Lifetime: 5,000hours or more depending on the display's environment, driving condition and duty cycle.

Bending range: Rolled in diameter of 10cm (Min)

Visibility: Visible under smoky and foggy situation.

Packing: Carton/wooden case+bubble pack

Others: wide viewing angle

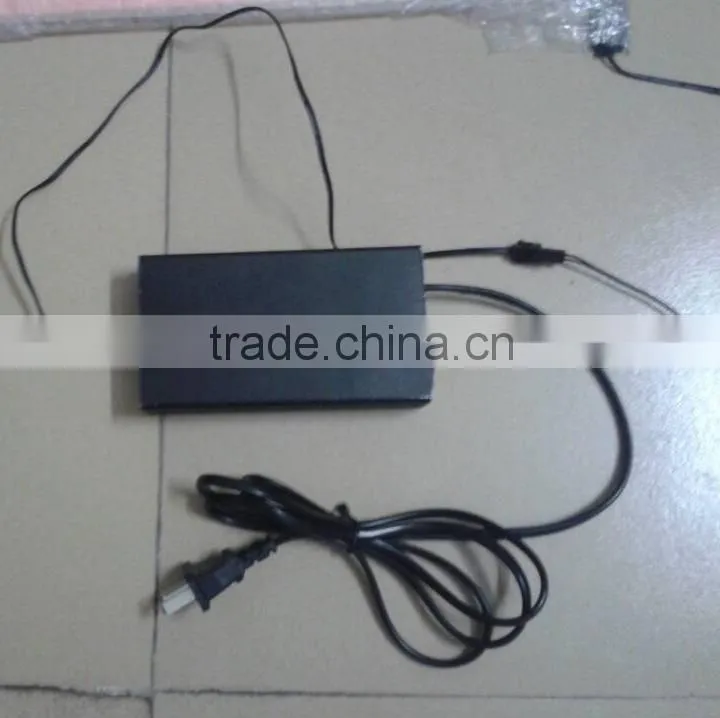

Accessory-Inverter:

All EL products needs an Inverter to power it. These inverters start with 3Volts, 5Volts, 6Volts, 12Volts or 110~240Volts power supply and then transfer the voltage around 100Volts and frequency around 800HZ that makes the Electro-Luminescent Phosphor in the EL glow brightly.

Application Fields:

1)Backlight source supplier;

2)Light box;

3)Digital products screen;

4)Advertisement lighting;

5)Indoor and outdoor decoration.
