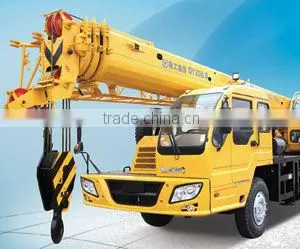

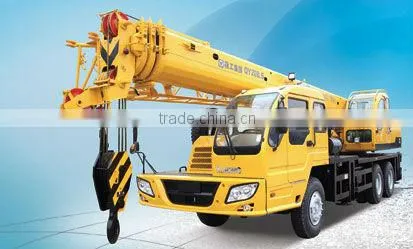

Help CenterQY20B.5
Related Products
Specifications
More excellent performance,More reliable quality,More energy-efficient and environmental friendly,Easier to operateDimension |
Unit |
QY20B.5 |
|---|---|---|
Overall length |
mm |
12400 |
Overall width |
mm |
2500 |
Overall height |
mm |
3300 |
Weight |
||
Total weight in travel |
kg |
26020 |
Front axle load |
kg |
6900 |
Rear axle load |
kg |
19120 |
Power |
||
Engine model |
SC8DK260Q3, WD615.327 |
|
Engine rated power |
kW/(r/min) |
192/2200 198/2200 |
Engine rated torque |
N.m/(r/min) |
1100/1400 1150/1400 |
Travel |
||
Max. travel speed |
km/h |
75 |
Min. turning diameter |
m |
20 |
Min. ground clearance |
mm |
270 |
Approach angle |
° |
21 |
Departure angle |
° |
11 |
Max. grade ability |
% |
35 |
Fuel consumption for 100km |
L |
≈35 |
Main performance |
||
Max. rated total lifting capacity |
t |
20 |
Min. rated working radius |
mm |
3000 |
Turning radius at turntable tail |
m |
3.385 |
Max. lifting torque |
kN.m |
860 |
Base boom |
m |
10.06 |
Fully extended boom |
m |
32.76 |
Fully extended boom+jib |
m |
42.12 |
Longitudinal outrigger span |
m |
4.97 |
Lateral outrigger span |
m |
5.4 |
Working speed |
||
Boom luffing time |
s |
75 |
Boom full extension time |
s |
95 |
Max. swing speed |
r/min |
3 |
Max. speed of main winch (single rope) |
m/min |
100 |
Max. speed of aux. winch (single rope) |
m/min |
100 |
