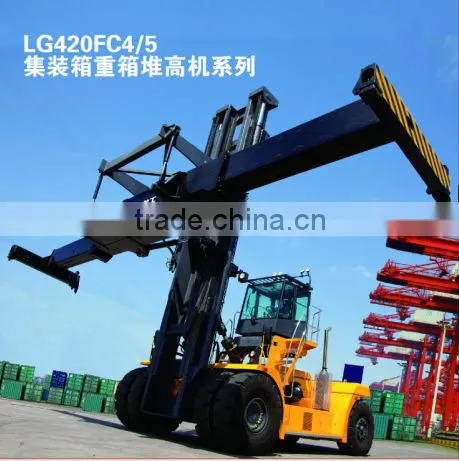

China Brand New Stacker Crane for Sale
- shangshai
You May Like
Product Details
Condition | New | Place of Origin | Shanghai, China | |
Brand Name | Lonking | Model Number | LG420FC5 | |
Dimension(L*W*H) | 10400*6042*4660mm | Certification | ISO/GOST/CE | |
Warranty | 1 year/2000 working hours, 1year/2000 working hours | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Power Type: SCANIA DC1250ARated Capacity: 38000kg
Max.Travelling speed: 24km/h
Max.lIfting speed:210/2600mm/s
We're the Best Construction Machinery Supplier in China,please feel free to contact us and visit our factory in Shanghai!
Lonking Stacker LG420FC5 Specifications:
Item | LG420FC5 | |
---|---|---|
Rated Payload | Kg | 38000-35000 |
Max. Layers of Stacking | 4×9'6'' 4.5×8'6'' | |
Mast Tilting Angle(Forward/Backward) | ° | 3°/10° |
Max. Travel Speed (with Load) | Km/h | 24 |
Max.Lift Speed(with/without Load) | mm/s | 210/260 |
Max. Lowering Speed (with Load) | mm/s | 400 |
Max. Gradeability (with Load) | % | 30 |
Min. Turning Radius | mm | 7500 |
Front Axle Load (with/without Load) | Kg | 99800/43800 |
Rear Axle Load (with /without Load) | Kg | 8000/26000 |
Max.Traction Force | KN(2Km/h) | 280 |
Operating Weight | Kg | 69800 |
Number of Wheels (Front/Rear) | 4/2 | |
Tire Type | 18.00-25-40PR | |
Engine Manufacturer / Model | SCANIA DC12 50A | |
Rated Power | KW(hp)/rpm | 272(370)/2100 |
Peak Torque | Nm/rpm | 1572/1500 |
Transmission | DANA(CLARK) TE27 | |
Gear(Foward/Reverse) | 4/4 | |
Axle | KESSLER D102 | |
Fuel Tank Volume | L | 450 |
Hydraulic Oil Tank Volume | L | 590 |
Item | LG420FC5 |
---|---|
A(Overall Length) | 10400mm |
B(Wheel base) | 5500mm |
C(Load Center Distance) | 1220mm |
D(Track Width, Rear) | 2612mm |
E(Track Width, Front) | 3030mm |
F(Overall Width of the Machine) | 4150mm |
G(Overall Width of the Lifting Device) | 6042mm |
H(Overall Height of Machine) | 4660mm |
H1(The Min.Height from the Ground to the Lock) | 2340mm |
H2(Mast Heigh t at Upright) | 9747mm |
H3(Max. Lifting Height) | 13850mm |
H4(Overall Height When the Mas t is Ful ly Extended) | 16050mm |
Our Team Culture:
Top Brand Lonking In China:
Founded in 1993, Lonking Holdings Limited ("Lonking") is one of the largest construction &logistic machinery manufacturers in China. It has 19 wholly owned subsidiaries and four production bases respectively located in Fujian, Shanghai, Jiangxi and He'nan, covering over 3 million square meters. Top Brand Lonking In China:
Lonking manufactures wheel loaders, hydraulic excavators, road rollers, forklifts, motor graders and skid steer loaders. The company also develops and produces core components, including gearboxes, torque converters, axle, hydraulic components, gear pipes and driver shaft among others.
In 2011, 46,000 units of Lonking wheel loaders were sold, covering Chinese wheel loader market share of over 20%, ranking top in the industry; 16,000units of Lonking forklift were sold, ranks top 5 among Chinese forklift brands.
Lonking aims to continue developing energy efficient and environmental-friendly products and gives it share in the property of global economy and progress of humanity.
Production Base Introduction
Four Production Bases
1. Longyan is the birthplace of Lonking. Over the last 16 years, the Longyan site has been gradually developed and expanded into a modern R&D and production site for export products, with a production area of 900000 m2 covering the production of wheel loader, axle, transmission, hydraulic components, casting and forging among other components.
2. In 1999, Lonking set foot in Shanghai and built a one million square meter modern industrial park integrating R&D and production of wheel loaders, excavators, forklift, road rollers, motor graders and other major components. The park's investment scale, R&D capability, production, quality control equipment, product performance and living environment are absolutely world class.
3. In 2003, Lonking established an industrial park for the production of gears, pumps, valves and other main accessories in Gao'an City of Jiangxi province. Covering an area of 300,000m2, the industrial park serves as an important production hub for Lonking.
4. In March 2007, Lonking acquired Baiyun Electro Mechanical formed a production hub in Zhengzhou City of He'nan Province. This marks the beginning of Lonking's Development Strategy for the Central China.
Part Product Range
Lonking has established its own subsidaries to produce drive axles, gearboxes, and hydraulic components. Due to the strong R&D, testing and production capacities of its subsidaries, Lonking can fulfill customers' expectations of parts quality and availability.
