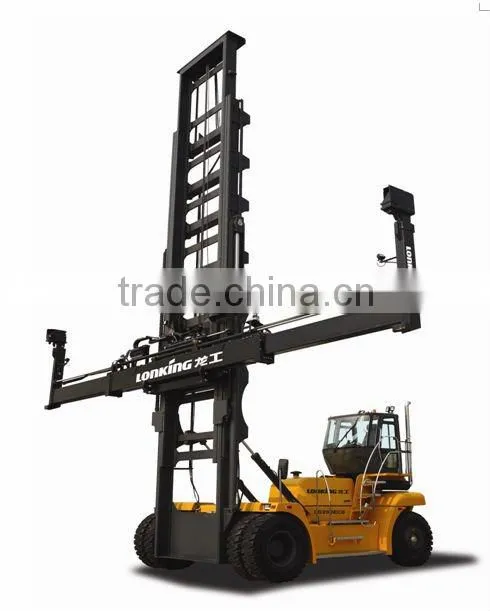

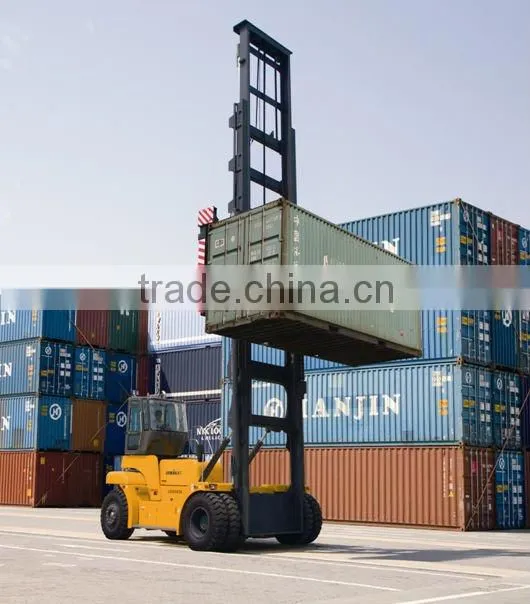

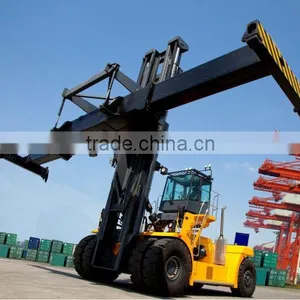

Help CenterEmpty Container Stacker
Related Products
Specifications
Model Number LG 260EC8Power Type Diesel
Load capacity 9000kg
Overall LxHxW 6655X3900X4060
Rated power 174kw
Load capacity(Kg)...............................................9000
Load centers(mm).............................................1220
Max. lift height(mm)..........................................21600
Max. lifting floors..........................7 floors(9’6”)8 floors(8’6”)
Mast abliquity(front/back)........................................2°/4°
Min.turning radius (mm)...........................................6000
Front gauge(mm).................................................3270
Rear track(mm).................................................2330
Max. grade ability(fully load)%........................................28
Whole weight(Kg)..............................................42500
Wheel base(mm)...................................................4500
Front axle load(fully load/idle load)(Kg).............................42000/28500
Rear axle load(fully load/idle load)(Kg)..............................9500/14000
Max. traction KN(2Km/h).........................................128
Tire quantity(front/back)...........................................4/2
Tire Model......................................14.00x24-28PR
Engine..........................................VOLVO TAD 720VE
Power rating(KW(hp)/rpm)..............................174(237)/2300
Max. Torque(Nm/rpm).......................................854/1400
Gear box............................................DANA TE-17000
Gear(front/back)...............................................3/3
Trans axle..............................................KESSLER D81
Load lifting device.......................................................ELME
Fuel capacity(L)...............................................400
Oil tank capacity(L).............................................430
Outside Measurement:
Overall length(mm)...................................................6840
Overall width(mm)...................................................4135
Height(Mast vertical)(mm)....................................11720
Cabin height(mm).............................................3950
Height(mast raising)(mm)....................................22015
Speed(fully load/idle load)
Max.running speed(fully load)(Km/h).....................................30
Max.lifting speed(fully load/idle load)(mm/s)...........................600/700
Max.descent speed(fully load)(mm/s)..................................600
1. Engine: VOLVO TAD 720VE Made in Sweden
2. Transaxle: Kessler Brand Made in German
3. Gear Box: DANA Brand Made in USA
4. Operating Grip: HC Brand Made in Italy
5. Braking System: MICO Made in USA
6. Load lifting device: ELME Made in Sweden
7. Liquid Crystal display watch: Made in USA
