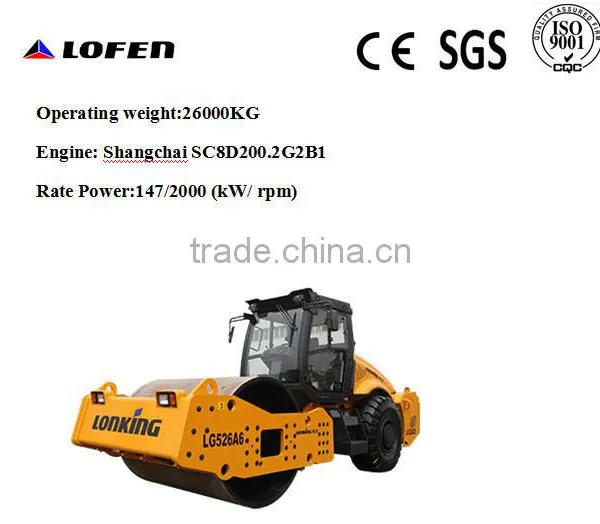

Lonkng LG526A6 26ton Road Roller for Sale

Name: Lonkng LG526A6 26ton Road Roller for Sale
Brand: Lonking
SKU: 126321541

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Single Drum Roller

Place of Origin:

Shanghai, China

Shanghai Long Fen Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Single Drum Roller

Place of Origin Shanghai, China

Brand Name Lonking

Model Number LG526A6

Power(W) 147/2000

Dimension(L*W*H) 6512x2380x3070

Weight 26000kg

After-sales Service Provided Engineers available to service machinery overseas

Specifications

A Series Single Drum Vibratory Rollers
Front & Rear Light For Night Operation
Rops/Fops Panoramic Cabin / Tiltable Column

Weight Load	Model		LG526A6
	Operating Weight (kg)		26000
	Distributed Weight for Drum(kg)		12500
	Distributed Weight for RearWheel(kg)		13500
Compact Performance	Static Linear Load for Drum(N/cm)		580
	Frequency(HZ)		28/33
	Nominal Amplitude(mm)		2.1/1.0
	Centrifugal Force(kN)		425/305
Maneuverability Perfomance	Diameter of Drum(mm)		1600
	Width of Drum(mm) (W2)		2130
	Rim Thickness of Drum(mm)		36+20
	LengthxWidthxHeight(mm)(LxW1xH)		6512x2380x3070
	Min .Ground Clearance(mm) (h)		420
	Min .Steering Radius(mm)		7500
	Wheelbase(mm) (L1)		3465
	Travel Speed(km/h)	Forward	2.5/5/8.2
	Travel Speed(km/h)	Reverse	2.5/5
	Gradeability		30%
	Steering Angle		35±1°
	Swing Angle		±10°
	Tyre Specification		20.5-25 16PR
Engine	Manufacturer		Shangchai
	Model		SC8D200.2G2B1
	Rated Power(kW/rpm)		147/2000
	Min Fuel Consumption(g/kW•h)		223
Capacity	Storage Battery (V/Ah)		12Vx120Ahx2
	Fuel Tank(L)		350
	Hydraulic Tank(L)		120
Others	Drive Type		Mechanical
	Vibration System		Close-loop Hydraulic Vibration System
	Service Brake		Air Booster Caliper Rear Axle Brake
	Parking Brake		Shaft Controlling Brake of Gear Box
