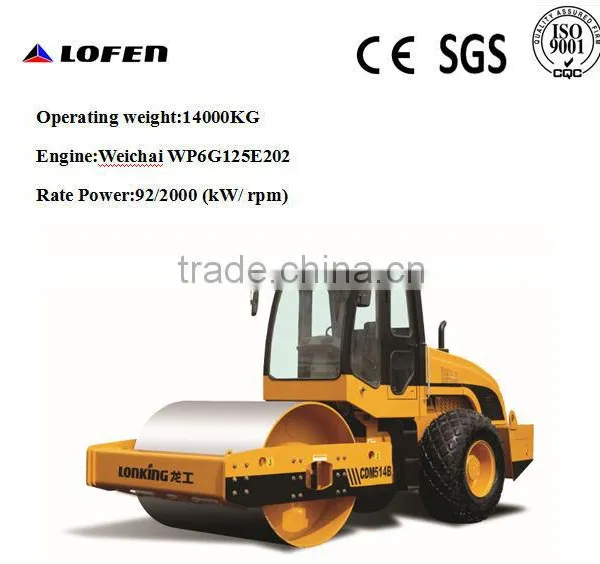

Lonking New 14ton Single Drum Road Roller for Sale

Name: Lonking New 14ton Single Drum Road Roller for Sale
Brand: Longking
SKU: 126321497

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Single Drum Roller

Place of Origin:

Shanghai, China

Shanghai Long Fen Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Single Drum Roller

Place of Origin Shanghai, China

Brand Name Longking

Model Number LG514B

Power(W) 92kw

Dimension(L*W*H) 6081x2300x3210

Weight 14000kg

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Front & Rear Light for Night Operation
Panoramic Cabin / Tiltable Column
Close-loop Hydraulic Vibration System

Weight Load	Model		CDM514B
	Operating Weight (kg)		14000
	Distributed Weight for Drum(kg)		7000
	Distributed Weight for RearWheel(kg)		7000
Compact Performance	Static Linear Load for Drum(N/cm)		330
	Frequency(HZ)		28
	Nominal Amplitude(mm)		1.8/0.9
	Centrifugal Force(kN)		290/160
Maneuverability Perfomance	Diameter of Drum(mm)		1520
	Width of Drum(mm) (W2)		2120
	Rim Thickness of Drum(mm)		30
	LengthxWidthxHeight(mm)(LxW1xH)		6081x2300x3210
	Min .Ground Clearance(mm) (h)		400
	Min .Steering Radius(mm)		6300
	Wheelbase(mm) (L1)		3100
	Travel Speed(km/h)	Forward	2.1/3.9/8.4
		Reverse	2.1/3.9
	Gradeability		30%
	Steering Angle		30±1°
	Swing Angle		±10°
	Tyre Specification		23.1-26 8PR
Engine	Manufacturer		Weichai
	Model		WP6G125E202
	Rated Power(kW/rpm)		92/2000
	Min Fuel Consumption(g/kW•h)		235
Capacity	Storage Battery (V/Ah)		12Vx120Ahx2
	Fuel Tank(L)		250
	Hydraulic Tank(L)		140
Others	Drive Type		Mechanical
	Vibration System		Open-loop Hydraulic Vibration System
	Service Brake		Air Booster Caliper Rear Axle Brake
	Parking Brake		Shaft Controlling Brake of Gear Box
