Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Compactor > High Quality Small Road Roller ,Static Road Roller ,Dfferent Types Road Roller CMD514B

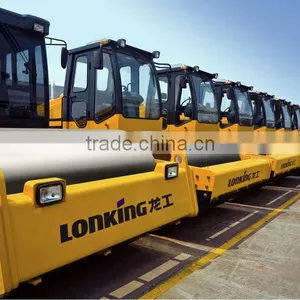

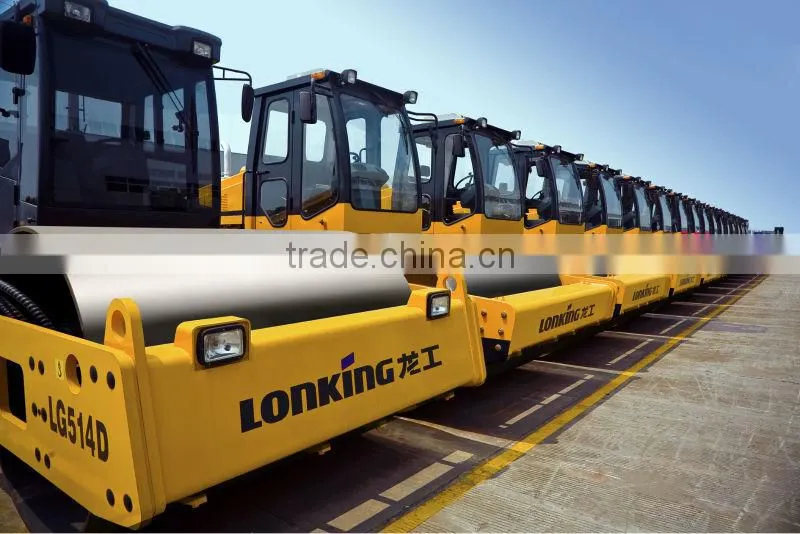

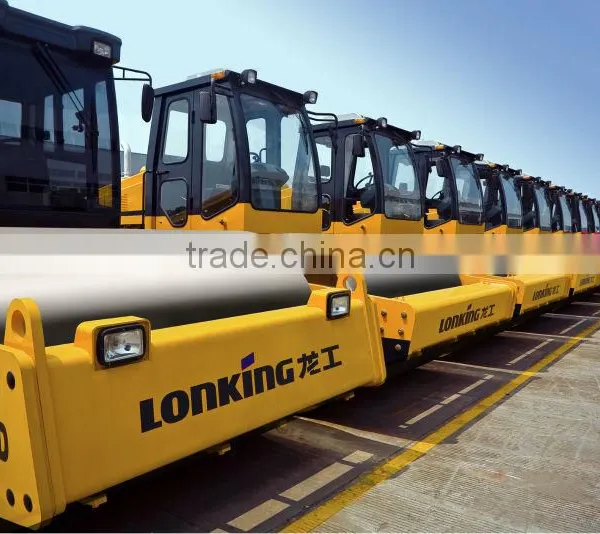

High Quality Small Road Roller ,Static Road Roller ,Dfferent Types Road Roller CMD514B
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Single Drum Roller
Static Linear Pressure:
330N/cm
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China High Performance Mini Road Roller Cheap Price Road Roller CMD512BNegotiableMOQ: 1 Unit -
China Brand Lonking Road Roller for Sale at New Road Roller PriceCMD510BNegotiableMOQ: 1 Unit
-
JMS05H 0.5ton WALK BEHIND Chinese Mini Vibratory Road RollerNegotiableMOQ: 1 Set
-
JMS05H 0.5ton WALK BEHIND Chinese Vibratory Road RollerNegotiableMOQ: 1 Set
-
JMS05H 0.5ton WALK BEHIND Vibratory Road RollerNegotiableMOQ: 1 Set
Condition
New
Type
Single Drum Roller
Static Linear Pressure
330N/cm
Travel Speed
0-9km/h
Grade Ability
30%
Place of Origin
Shanghai, China
Brand Name
Lonking
Model Number
CMD514D
Power(W)
92kw
Dimension(L*W*H)
6080*2300*3365mm3
Weight
14000kg
Certification
ISO CE
After-sales Service Provided
Engineers available to service machinery overseas
Construction Machinery CDM514B features:
B SERIES SINGLE DRUM VIBRATORY ROLLERS
Front& Rear Light for Night Operation
Panoramic Cabin / Tiltable Column
Open-loop Hydraulic Vibration System
Permco Hydraulic Components
Wear And Impress Resistant
AC & Pad Foot Optional
Following is detailed technical parameters Following is detailed technical parameters
| Weight Load | Model | CDM514B | |
| Operating Weight (kg) | 14000 | ||
| Distributed Weight for Drum(kg) | 7000 | ||
| Distributed Weight for RearWheel(kg) | 7000 | ||
| Compact Performance | Static Linear Load for Drum(N/cm) | 330 | |
| Frequency(HZ) | 28 | ||
| Nominal Amplitude(mm) | 1.8/0.9 | ||
| Centrifugal Force(kN) | 290/160 | ||
| Maneuverability Perfomance | Diameter of Drum(mm) | 1520 | |
| Width of Drum(mm) (W2) | 2120 | ||
| Rim Thickness of Drum(mm) | 30 | ||
| Length*Width*Height(mm)(L*W1*H) | 6080*2300*3365 | ||
| Min .Ground Clearance(mm) (h) | 400 | ||
| Min .Steering Radius(mm) | 6300 | ||
| Wheelbase(mm) (L1) | 3100 | ||
| Travel Speed(km/h) | Forward | 2.1/3.9/8.4 | |
| Reverse | 2.1/3.9 | ||
| Gradeability | 30% | ||
| Steering Angle | 30±1° | ||
| Swing Angle | ±10° | ||
| Tyre Specification | 23.1-26 8PR | ||
| Engine | Manufacturer | Weichai | |
| Model | WP6G125E202 | ||
| Rated Power(kW/rpm) | 92/2000 | ||
| Min Fuel Consumption(g/kW•h) | 235 | ||
| Capacity | Storage Battery (V/Ah) | 12V*120Ah*2 | |
| Fuel Tank(L) | 250 | ||
| Hydraulic Tank(L) | 140 | ||
| Others | Drive Type | Mechanical | |
| Vibration System | Open-loop Hydraulic Vibration System | ||
| Service Brake | Air Booster Caliper Rear Axle Brake | ||
| Parking Brake | Shaft Controlling Brake of Gear Box | ||
