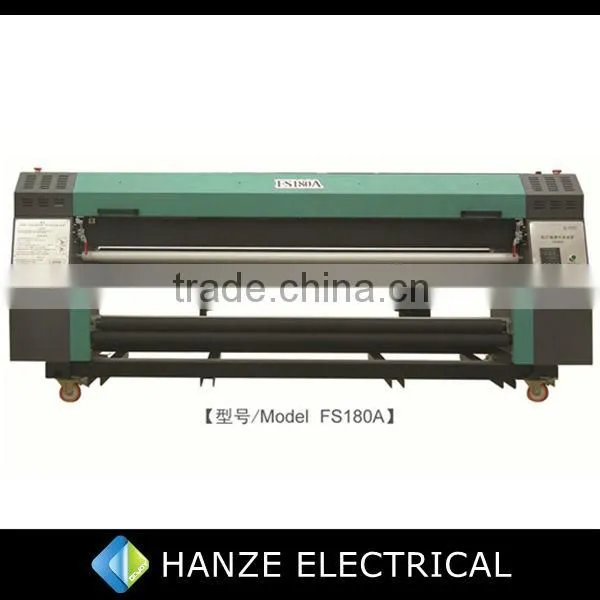

NAME : Fabric Color Fixation Machine
FEATURES & PRODUCT DISPLAY : Hanze Fabric Color Fixation Machine is designed for direct fabric printing printer.Advanced sheet metal cuting technology and good quality raw material is used to produce this product.End-user can be avoided loss caused by unreasonable mechanical structure. All kind of polyester fabric less than 320CM whidth canbe working in this mathine.
|
|
First exclusive exhaust delay structure exhausting smoke thoroughly makes the heating chamber clean,less cleaning times. |
Feeding fabric by compressed rubber as to protect fabric from wrinkling, skewing and deformation. |
|
|
| Air volume adjustable structure to be designed for saving maximum energy when exhausting. | Easy and reasonable fabric feeding structure. Feeding by compressed roller lever so fabric wrinkling is effectively avoided. |
|
|
| Unique exhausting structure avoid fabric from oil pollution.Mirror treatment stainless-steel-made heating chamber makes temperature in even status so that color fixation process perfect. | Unique built-in exhausts cleaning design makes the equipment compact, saving operation room. |
|
|
| Clear operational instruction for worker. | Very clean and easy operational panel. |
|
|
| Very thick heating isolation structure. Mirror-treated stainless steel made wall keeps temperature in chamber room stable. | Adjustable tension structure will keep fabric feeding flat and smooth. |
DIFFERENCES :
Separate Sublimation machine VS All in one printer & Sublimation machine
|
|
|
Nice appearance design, good quality raw material, clean operational panel. Heating tubes are arranged from A point to B point horizontally. It can make the heating temperature much more even. |
Easily designed Heating tubes are arranged from D point to B point and C point to B point. So temperature on D & C points is lower than B point for sure when temperature is so important in color fixation process. A bar which is installed at the A point will ascend fabric from A point to B point. So when the Bar is contaminated by the waste oil smoke. The fabric quality will be affected more or less for sure. And this structure can not make the heating chamber be good sealed. |
Horizontal type sublimation heater VS Vertical type sublimation heater
|
|
|
1.Increased output at 60-70 meters per hour. One sublimation machine can match 3-5 printers depending on the printer speed. It not only improved the color fixation quality,but also save abundant energy consumption. 2. Printer can print both fabric and heat transfer paper 3. No change on printer so the printing precision is ensured. 4. No electromagnetic interference, No heating interference. 5. The machine structure is not affected by the printer structure. It is easy to design good feeding structure, heating isolation structure to save energy and having better performance. |
1. Sublimation machine must run according to printer's printing speed. 2. Printer can print fabric only. 3. It is difficult to control the assembly precision. It is especially difficult to keep the printing platform and fabric guiding roller of sublimation machine parallel. So fabric skewing is unavoidable. And printing precision is affected in the end. 4. The high power rate of the sublimation machine will generate high electromagnetic to affect the printer. And the high temperature may affect the printer too since the printer is just right above the heating sublimation machine. 5. Need to watch the machine closely. In case there is print head cleaning requirement, you must do some work to protect the fabric in the oven. Otherwise, the fabric may be burned or it will lead to different color shade on the same fabric for sure. |
ABOUT US :
Qingdao Hanze Electrical Co., Ltd.,Manufacturer Company, started production in the year of 2005, focusing on manufacturing peripherals for large format printer industry .
