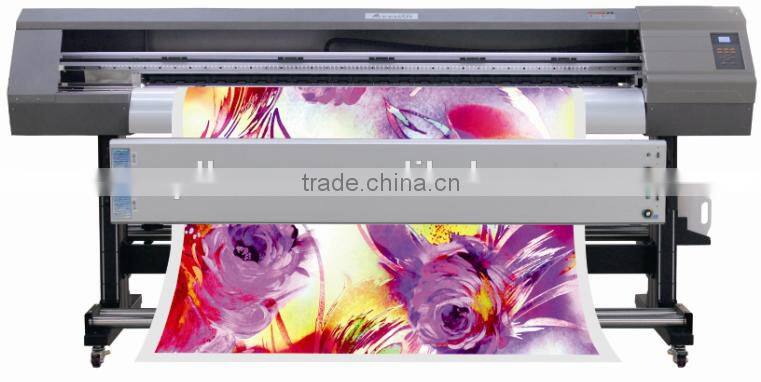

High Precision Digital Textile Printing Machine

High Precision Digital Textile Printing Machine thumbnail-1
High Precision Digital Textile Printing Machine thumbnail-2
High Precision Digital Textile Printing Machine thumbnail-3
High Precision Digital Textile Printing Machine photo-1
High Precision Digital Textile Printing Machine photo-2

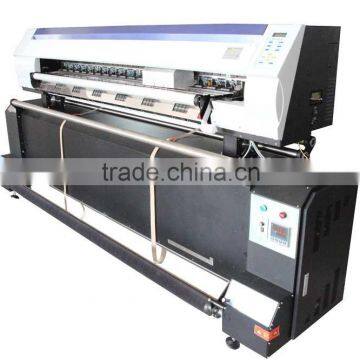

High Precision Digital Textile Printing Machine photo-3
US$ 8,500 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Qingdao Hanze Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Flatbed Printer
Place of Origin Shandong, China
Brand Name hanze
Model Number HZ-4180a
Usage Cloths Printer, Other, Cloths Printer, dye sublimation heater
Automatic Grade Automatic
Voltage 110V/220V
Gross Power 5600w
Weight 550KG
Certification CE Certification
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Functions and features

1.Dual direction dual motor,high-resolution dricer linear encoder,fewer errors in length,mores table running.
2.Original slient guide,more stable,longer working life,lower noise.
3.USB port more convenient,highest speed 480M/S,and it offers nest work interface for printing in different places.
4.Epson 5113 printhead with8*180 nozzles,achieving 1440DPI high-resolution output.
5.VSDT variable dot technology,smallest droplet is 3.5pl,largest droplet is 27pl,achieving perfect printing.
6.Unique planar feather function & wave feather function,eliminating BANDING during printing,achieving excellent quality and perfect improvement.
7.Multi-mode print option,common production mode can reach to high-speed of 42m²/h,faster on speed and higher on resolution.
8.Own the most advanced Epson intelligent printhead cleaning and moisturizing device,prociding safe wnvenent printhead cleaning and maintaining function,easy to print.
9.Equipped with 4 king-size-capacity ink reservoirs,printing large format and vivid picture at great speed.
10.Industry recommend quick drying ink,realizing quick drying while output,not easy to get damp and clamminess.

Technical Rarameters
Printhead
Epson5113
Resolution
1440DPI
Number of printhead
2
Number of nozzles
1440(8*180)
Colors
CMYK
Color gamut
16.7million
Media width
1800mm
Printing width
1800mm
Printing speed
2pass,3pass,4pass,6pass
Ink type
sublimation dye,waterbased,eco-solvent based
Color managment
ICC based,density&curves adjustment
RIP software
maintop 5.3/PHOTOPRINT 11/ONYX11
Computer system
windows XP,win7,win8
Interface
USB2.0,USB3.0
Power supply
50HZ/60HZ,220,10A
Heating system
Three-section-heating;preheater,bed-heater and rearheater
File forms
BMP,TIF<Jpg,Pdf,Ai,Eps,etc
Feeding method
Roll to roll,leaf
Dimension
L*W*H:2600*700*500mm
Weight
240kg

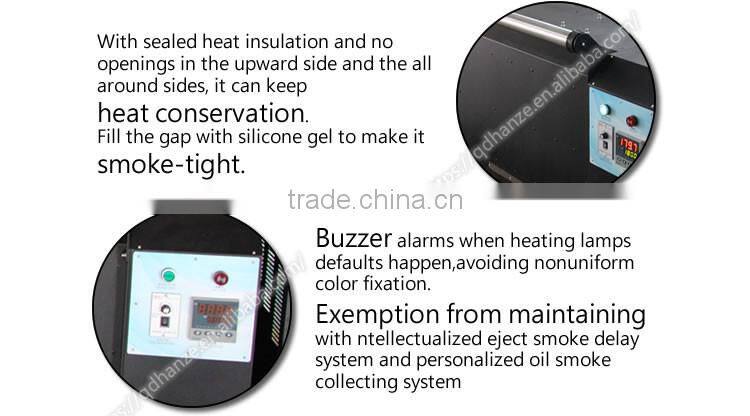

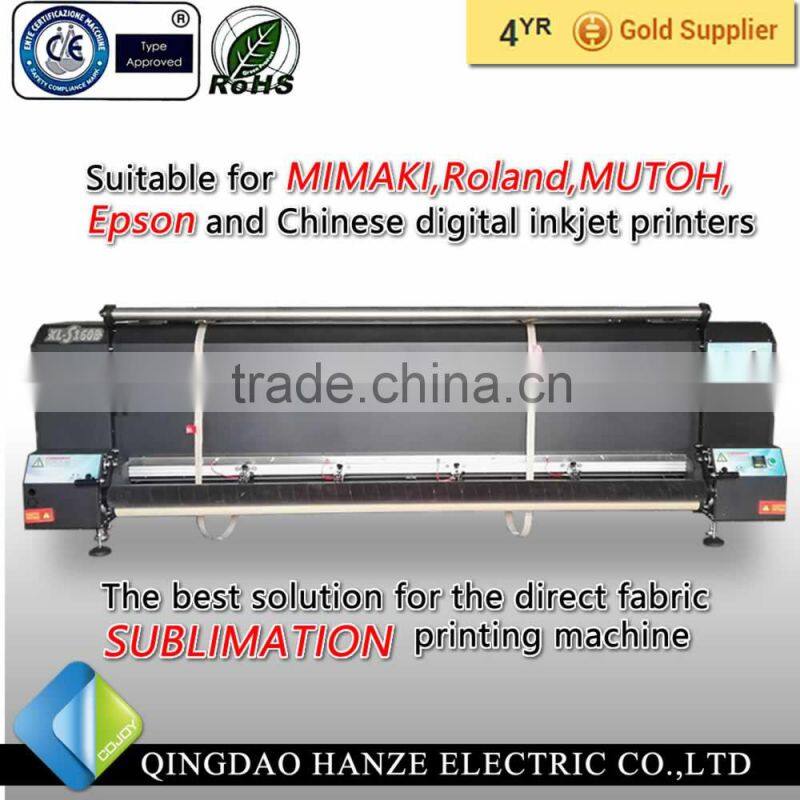

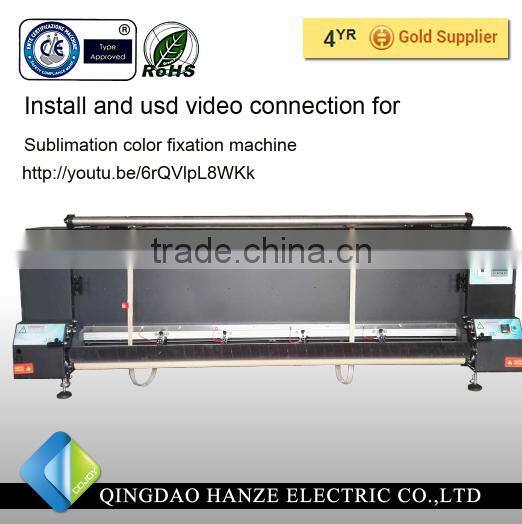

Color Fixation Unit Description

1.》What is the Sublimation Oven used for?

The sublimation color fixation machine is mainly used for the flag banners, flex banners and exhibition fabrics. It can cut down the costs, with no need for the heat transfer papers, and improve the work efficiency,compared with the traditional heat sublimation transfer process.

2.》Advantages for all-in-one printing and color fixation machine
a.Simultaneously finish for printing and color fixation process, with high efficiency;
b.Space saving and lightly influenced by the sites;
c.Color fixed directly while the printing process finished, no need to move the media,avoiding polluting the printed medias;

Certifications
Technical Rarameters
Rated current
25A
Rated voltage
220V
Rated power
5.5kw
Working power
2.9kw
Speed
30-90m/h
Temperature
180-210℃
Gross weight
400kg
Net weight
350kg
Media width
0-1900mm
Dimension
3230*1190*1140mm

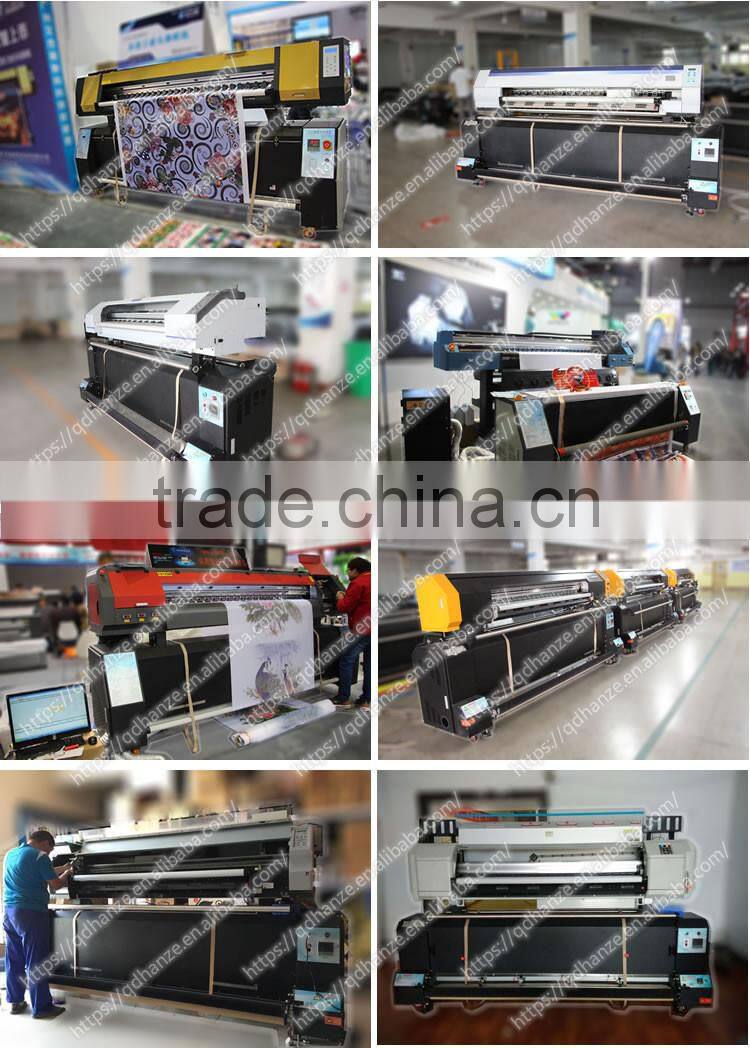

Detailed Images
Certificate
Application
One year warranty
You can discuss operation and maintenance with our technician online support service by Skype, MSN etc. Remote control will be provided upon request.
Free exchange of new components
Our quality is guaranteed 100%, the spare parts can be replaced within one year free of charge, you only need to pay the freight , except for the print head and some consumable parts.
Free online consultation
The technician will keep online. No matter what kind of technical questions that you may have, you would get a satisfactory answer from our professional technician easily.
Free onsite installation and training
If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it.
