Introduction

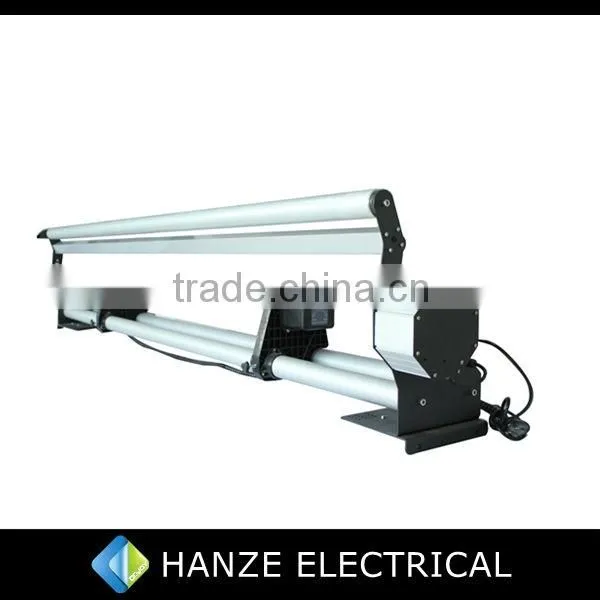

Automatic media take up system for Mutoh,Roland,Epson ,Mimaki is newly on market take-up-system with tension system is controlled by sensor.
A lever rod is designed in this system to spread the weight of printing media evenly on the rod. This structure tremendouly decreased the force to the motor of take-up-system. Print head striking problem is avoided. Wrong printing length caused by stepping value is also solved. If a printer dryer could be also matched together, unattended printing is become true.
This product can be used on advertisement industry, digital fabric printing industry. It can be used in paper, fabric, leather and PVC printing.
|
|
|
Reasonable design mechanical structure supported by good quality material.
|
Mechanical torque compensation design, balanced force control makes printing media feeding smoothly.
|
|
|

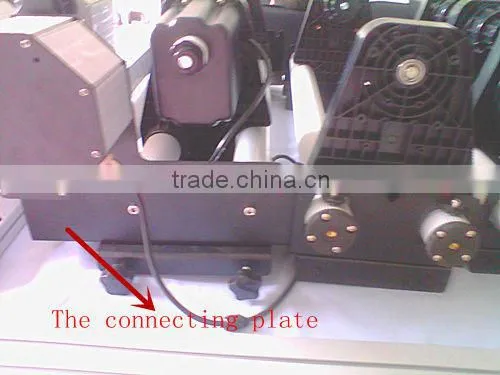

| Take use of the screw hole of the original printer, easy installation. No effect on printing precision of the original printer. | 2 inches and 3 inches media core are both compatible. |
|
|
|
Safety guard device is designed as to avoid inaccurate operation activity to break down motor.
|
Printing media is collected neatly. Convenient for post production reducing waste products.
|
Features
1. Model: ZL-BS-160cm
2. Normal specification are 61cm, 130cm, 160cm and 180cm.
3. Strong double round bar as it's base. It is most recommend model for oversea market.
4. With lever structure so that media can be kept in tension in the taking up process. Reduced the chance of print head striking media.
5.Max. media roll dia. at 280mm, overload weight is at 30KGS.
6. Highly recommend for heavy heat tranfer paper printing.
| Model | Voltage | Power rate | Torque | Max. media diameter | Media core diameter | Load Capacity | |
| ZL-BS | 24V | 30W | 5.25N.M | 280mm | 2 inches and 3 inches | 30KGS | |
Media take up system products in our company
