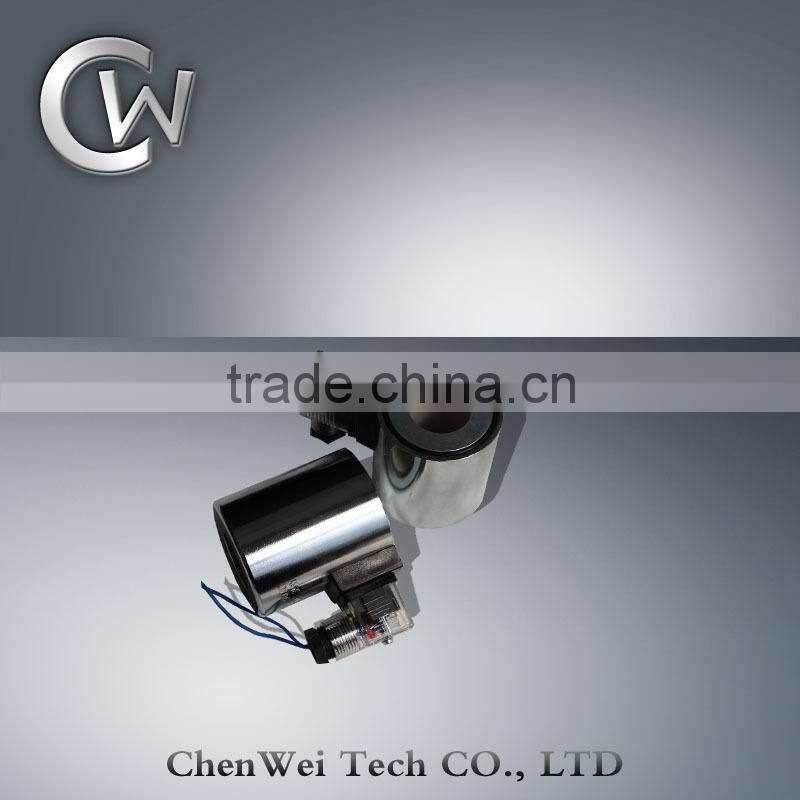

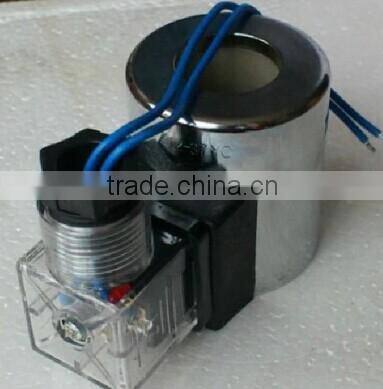

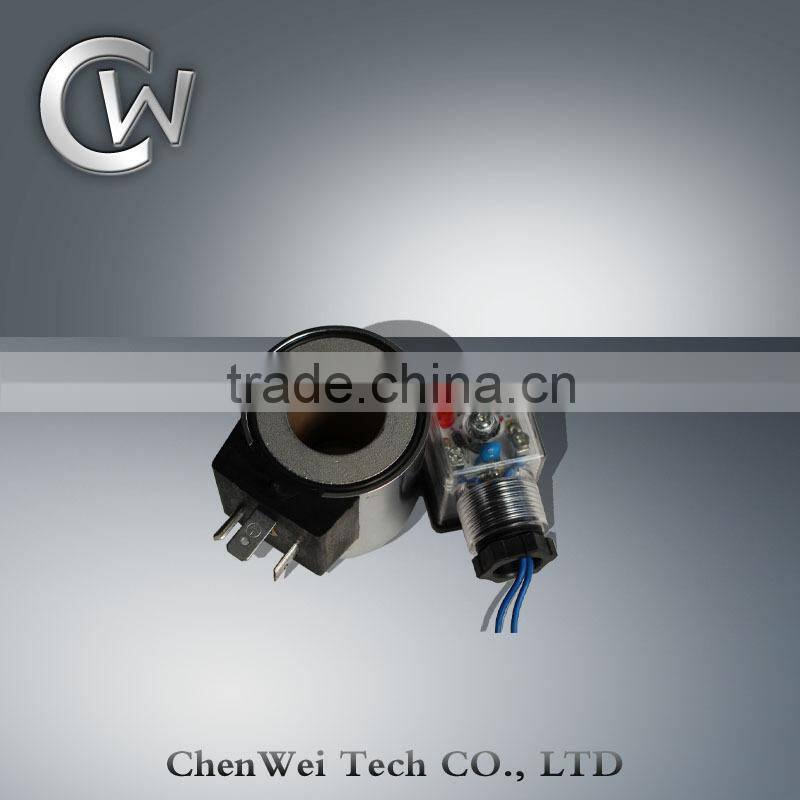

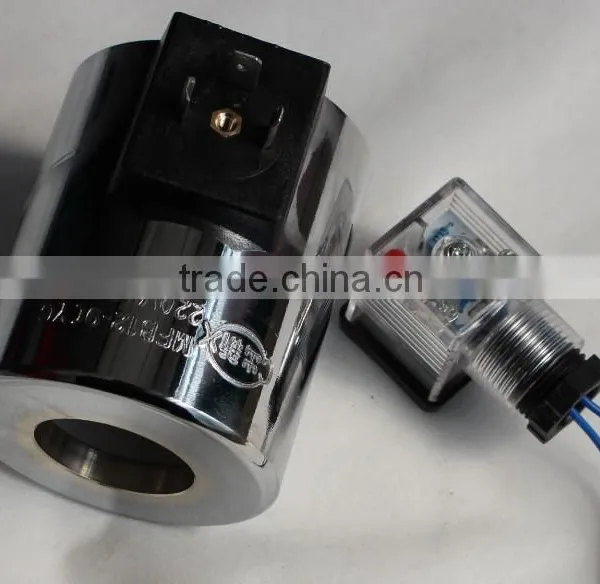

MFZ12-90YC/MFB12-90YC Rexroth Solenoid Coil for Hydraulic Valve
Features:
1. MFZ12-90YC/MFB12-90YC . ID32MM,Length 75MM.
2.Rated Voltage:AC220V DC24V AC110V
3.Rated Force:37N
4.Rated Stroke:4MM
5.Can be installed in any direction.
6.There shouldn't have corrosive action, Otherwise may affect the product life.
7. suitable for long-term duty, duty cycle.
8. the power supply voltage fluctuation range is 85% to 85%.
9.Enclosure protection grade is IP65.
Specification:
| Code | MFZ12-90YC | MFB12-90YC |
| Rated Voltage (V) | 12 24 | 110 220 |
| Rated Force ( N ) | ≥90 | ≥90 |
| Rated Stroke (mm) | 4 | 4 |
| Total Stroke (mm) | ≥9 | ≥9 |
| Consumed Power (W) | ≤36 | ≤36 |
| Static Oil Pressure (MPa) | 21 | 21 |
| Operating Frequency (T/h) | 12000 | 12000 |

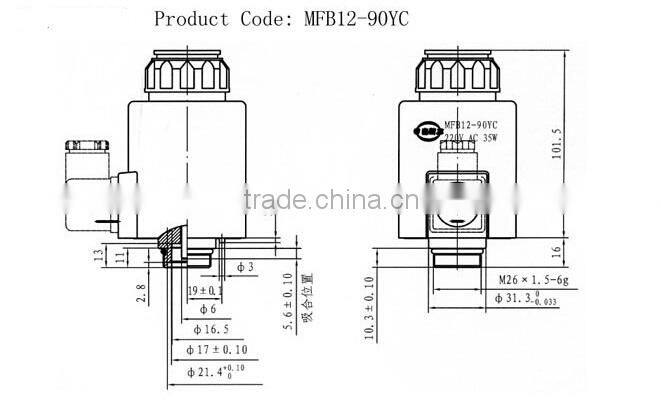

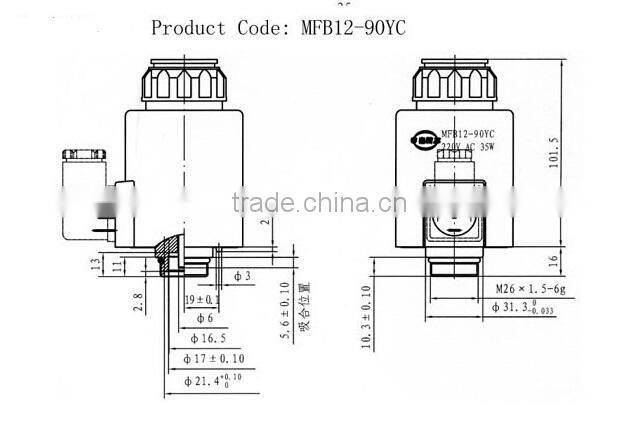

Dimensions:
