Specifications
1:4HV Series Pneumatic Hand Valve-4 Ports Hand Lever Valve2:4HV200, 4HV300, 4HV400
3:Port:1/8, 1/4, 3/8, 1/2, 3/4
4HV Series Pneumatic Hand Valve-4 Ports Hand Lever Valve
Feature:
1.4HV200, 4HV300, 4HV400 series 4 port hand lever valve.

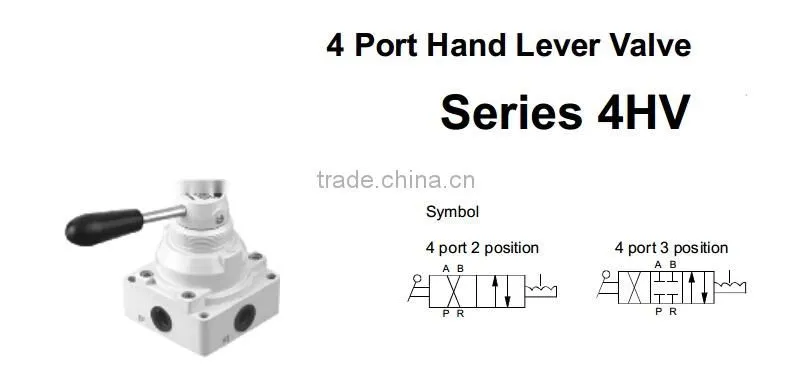

2.4 port 2 position or 4 port 3 position.
3.Port size: 1/8", 1/4", 3/8", 1/2", 3/4".

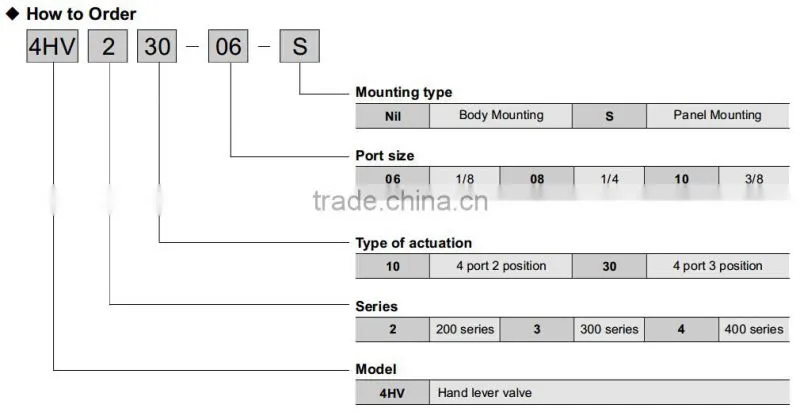

How to Order:
Specification:
| Fluid | Air |
| Type of actuation | 4 port 3 position, 4 port 2 position |
| Operating pressure range | 0~1.0Mpa |
| Operating angle | 90° |
| Working temperature | -5~60°C |
| Opearing angle | ±15° |

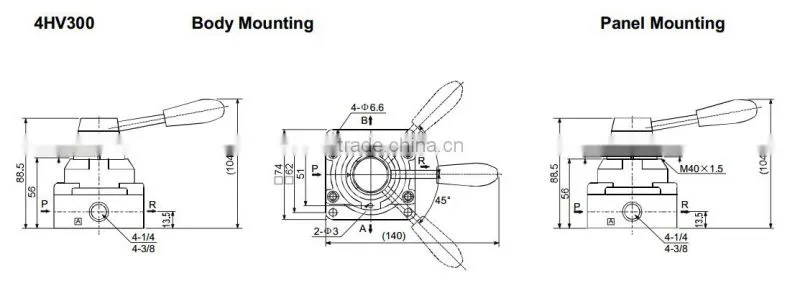

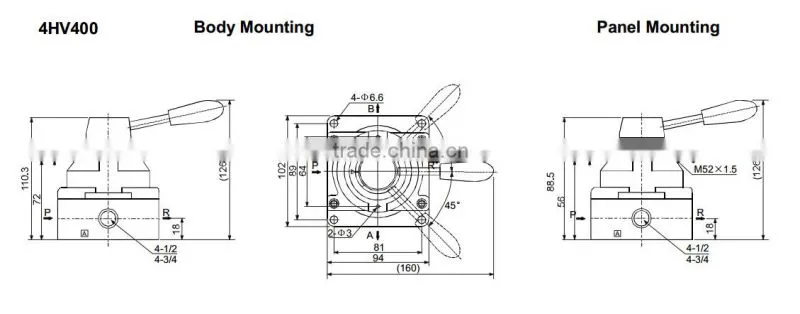

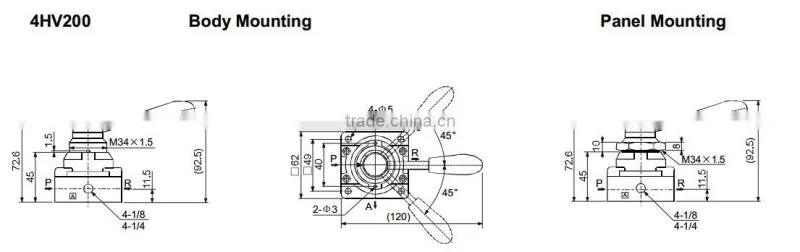

Dimensions:
