MT-6300 Automatic Lateral Side Strapping Machine

MT-6300 Automatic Lateral Side Strapping Machine photo-1
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type Cartons
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 100V-240V
Power 0.85KW
Place of Origin Shanghai, China
Brand Name zhantian pack
Model Number MT-6300
Dimension(L*W*H) 1610*625*1840
Weight 255kg
After-sales Service Provided Overseas third-party support available

Specifications



automatic strapper.prestretch film carriage, PLC control system, with self-induction, layers and speed adjustable.





The same structure as MT-6300.automatic strapping machine.

But it is applicatable for strapping larger package,such as refrigerator, air condition, motorcycle

Features:

This machine is specially designed for packing large-sized articles (like air conditioners, refrigerators, motorcycles, ect.). A transfer line and an electric eye unit are connected to the front and rear of the machine respectively to make the packing process fully automated or run in a completely unmanned manner.

•The workbench height can be adjusted according to the transfer line.

•Style of packing : Manual and foot switches; single-and multiple-strip parallel binding or free selection from 1 strip to 4 strips via automatic photoelectric control.

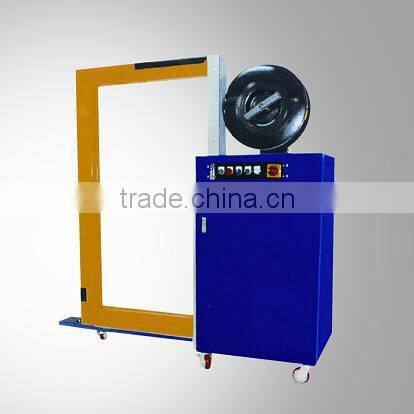

MT-6300 automatic lateral side strapping machine

Technical Parameters:

Machine Dimension W1610*D625*H1840mm
Weight 255KGS
Power 1Phase, 100V-230V,50/60Hz ;3 Phase,380V,50/60HZ; 0.85KW
Strap Thickness 0.5,0.7,0.8
Strap Width 9,10,12,13.5,15,19mm
Strapping speed 2.5sec/min. a cycle (arch W1250*H800)
Arch size  W400-2000mm*H850-2400mm
Table Height 160-650mm
Packing Size L1560mm*W800mm*H1450mm( wooden packing)
