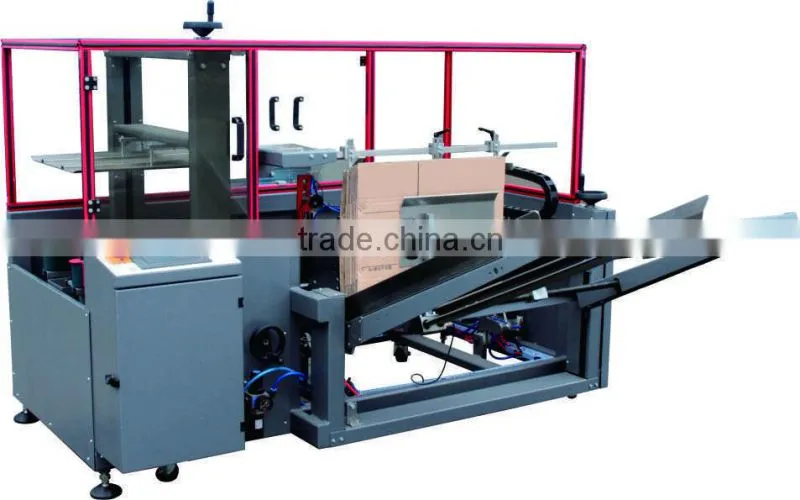

Help Center2015 New Type Automatic Case Carton/box Erector Machine Price
Related Products
-
Automatic Corrugated Carton Forming&Erecting MachineUS$ 1 - 2MOQ: 1 Set -
Middel Speed Automatic Carton/Case Erector Machine For Corrugated Paper.US$ 1 - 2MOQ: 1 Set
-
Automatic Corrugated Carton/box Case ErectorUS$ 1 - 2MOQ: 1 Set
-
MTX-02 Automatic Carton Case Erector Machine PriceUS$ 1 - 2MOQ: 1 Set
-
Good Quality Automatic Carton Case Erector Machine PriceUS$ 1 - 2MOQ: 1 Set
Specification:
1 Vertical storage, cartons can be added at any time without stopping the machine;
2 Suitable for forming and sealing cartons of the same size.
3Manually adjust to change the carton sizes(finishing in 2-3minutes);
4Advanced photoelectricity induction control system
5Rationally designed, the forming, folding and sealing process are accomplished simultaneously;
6 Cutter Safety system to prevent hands form stabbed by the cutter
Heavy duty built, both steel and stainless steel types
Technical Parameters:
Model |
YKX-01 |
Forming and sealing speed |
8-12ctns/min |
Carton storage quantity |
100pcs (1000mm) |
Carton size |
L200-450×W150-400×H150-350mm |
Power supply |
220V/380V, 50/60Hz, 1 Phase/3phase |
Power |
200W |
Applicable tape |
48/60/75mm (Choose one type) |
Machine size |
L2000×W1900×H1450mm |
Machine weight |
450kg |
Main technical features
Preformed folded carton boxes are placed in the magazine

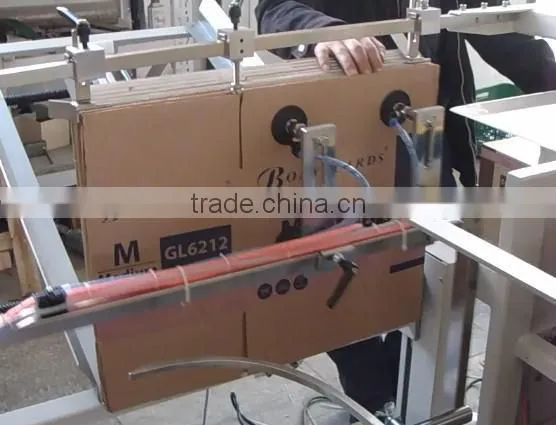

A vacuum suction plate extracts the box at the top, unfolding it
Another vacuum activated holder completes the box opening action

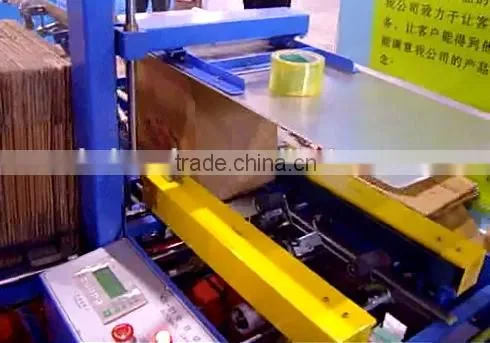

The bottom flaps are sealed with self adhesive tape or hot melt glue

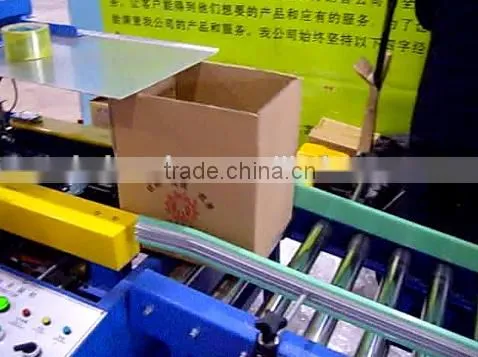

Once open and bottom sealed, the box leaves the former
The main advantages of a former in a packaging line are:
Increase of production and flexibility
Sturdy and long lasting equipment
Adjustable to different carton sizes
Clean and long lasting sealing, suitable for the food industry
Easy handling, risk-free for human operators
Automatic operation
Main Components:
Device Motor |
OTG |
TAIWAN |
PLC |
Omron |
Japan |
Photoelectric switch |
Ormon |
Japan |
intermediate relay |
Omron |
Japan |
Operation switch |
Zhengtai |
China |
Cylinder |
Air-TAC |
China |
Sucker |
Qilik |
Taiwan |
Bearing |
NSK |
Japan |
