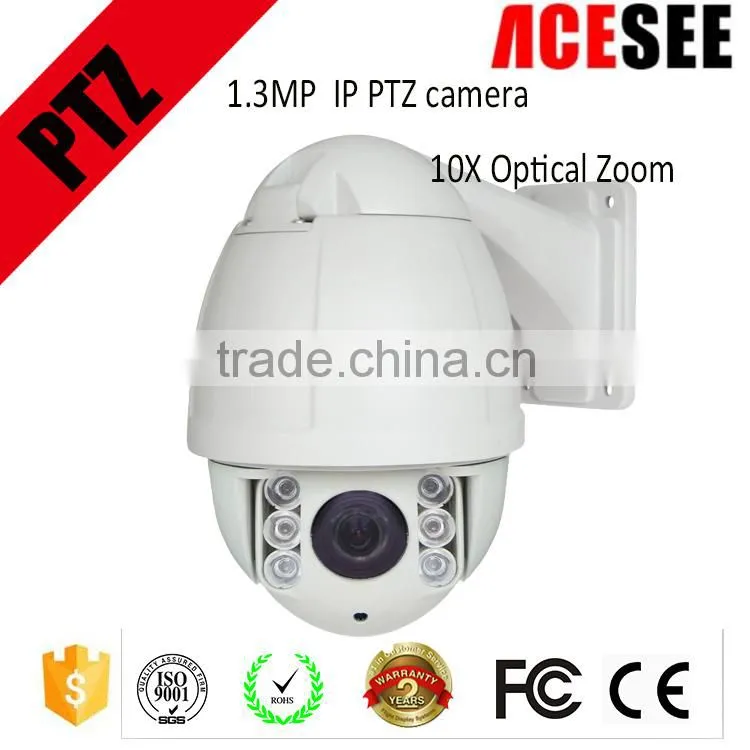

Cost Effective TI DM365 1.3mp Cmos 10x Optical Zoom Auto Tracking Ptz ip Camera

Cost Effective TI DM365 1.3mp Cmos 10x Optical Zoom Auto Tracking Ptz ip Camera thumbnail-1
Cost Effective TI DM365 1.3mp Cmos 10x Optical Zoom Auto Tracking Ptz ip Camera thumbnail-2
Cost Effective TI DM365 1.3mp Cmos 10x Optical Zoom Auto Tracking Ptz ip Camera photo-1
Cost Effective TI DM365 1.3mp Cmos 10x Optical Zoom Auto Tracking Ptz ip Camera photo-2
US$ 144 - 158 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Neutral/OEM/ACESEE
Model Number:
APH4A10P130
Contact Supplier Request Quote Chat Now
Longse Electronics Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/ Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Neutral/OEM/ACESEE
Model Number APH4A10P130
Type IP Camera
Style Dome Camera
Sensor Other, CMOS, 1/3" Aptina Low Illumination 1.3MP CMOS Sensor
Technology NetWork
Special Features Waterproof / Weatherproof

Cost effective TI DM365 1.3mp cmos 10x optical zoom auto tracking ptz ip camera



Cost effective TI DM365 1.3mp cmos 10x optical zoom auto tracking ptz ip camera





Product Description

 Main feature:



  • 1/3" Aptina Low Illumination 1.3MP CMOS Sensor, TI
  • DaVinci™ DM365
  • Main Stream: 720P@30fps; With IR-CUT
  • 10X Optical Zoom (f=5mm-50mm)
  • 4.5" Mini HD-IP High Speed Dome Camera
  • *Weatherproof Outdoor IP66
  • *16x6PCS IR LEDS, IR Range: 50m
  • *Pan Range: 0°~360° Continue; Tilt Range: 0°~90° Flip
  • *Pan Speed: 200°/sec; Tilt Speed: 100°/sec
  • *Preset Points: 220
  • *Guard Tours: 3 Groups
  • *Guard Points: Max.16 points
  • *Protocol TCP/IP, HTTP, FTP, RTSP Support
  • *P2P Support
  • *Power Adaptor: DC12V/3A
  • *Lightning Protection: Transient Voltage 6000V
  • *Size of Package (LxWxH): 28x32x20(cm)
  • *Weight: 3.4Kgs



 Datasheet



Model APH4A10P130
Camera
Image Sensor 1/3" Aptina Low Illumination 1.3MP CMOS
Horizontal Resolution 720P
S/N Ratio >58db
PTZ
Horizontal Rotation Speed  200°/s
Horizontal Rotation Range  360°
Tilt Rotation Speed  100°/s
Tilt Rotation Range  90º
Auto Flip Horizontal 180°, Vertical 93°
Ratio Speed  Support
360° Scan User programmable
360° Scan Speed  01-64speed setting available
A-B Scan User programmable
A-B Scan Speed  01-64speed setting available
PWR on Action Memory/Tour/360 scan/AB scan/Home/Nop
Park Time 1-60mins setting available
Dwell Preset 1-60s interval available
Preset Points  220
Go to Preset Speed 200°/s
Guard Tours 3 groups
Guard Points Max.16 points, dwell time user selectable
Auxiliary Interface
Communication Protocol Pelco-D, Pelco-P
Baud Rate 1200/2400/4800/9600bps
General
Operating Temperature  Indoor: 0°~ +40°   Outdoor:  -40°~ +60°
Operating Humidity  ≤95% Non Condensing
Heater & Blower  Auto temperature control
Auto Control IR LED PWM
Power DC12V/3A
IR Illumination Distance  50M
Power Consumption ≤ 36W
Lightning Protection Transient voltage 6000V
Dimension 28x32x20(cm)
Weight 3.4kgs







                                                                                              Cost effective TI DM365 1.3mp cmos 10x optical zoom auto tracking ptz ip camera
