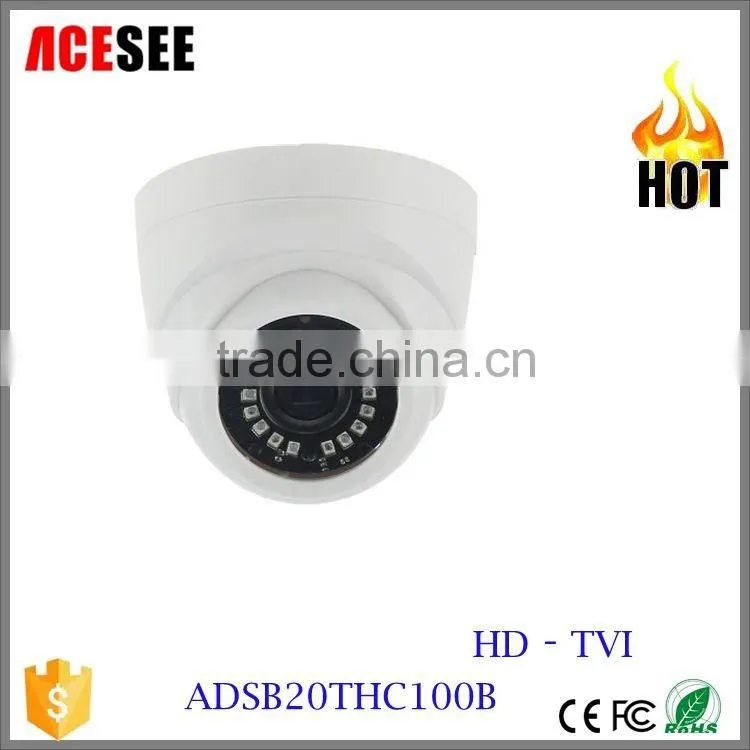

Longse Competitive Camera hd Tvi 1/4" OV 1.0MP CMOS Sensor, 720P/960H Plastic Ir Camera

Name: Longse Competitive Camera hd Tvi 1/4" OV 1.0MP CMOS Sensor, 720P/960H Plastic Ir Camera
Brand: ACESEE/OEM/ODM
SKU: 126310391

US$ 4.8 - 8.8 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ACESEE/OEM/ODM

Model Number:

ADSB20THC100B

Longse Electronics Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ACESEE/OEM/ODM

Model Number ADSB20THC100B

Type Other, AHD 4 in 1

Style Dome Camera

Sensor CMOS

Technology Infrared

Special Features Other, Plastic

Longse competitive Camera hd tvi 1/4" OV 1.0MP CMOS Sensor, 720P/960H Plastic Ir Camera

Product Description

Specification:

Model	ADSB20THC100B	AHD 4 in 1 Cmos Camera
Camera
Image Sensor	OV2710
Main processor	HTC1080E
Resolution	720P
Effective Pixels	1 MP , 1920(H)*1080(V)
Electronic Shutter Time	Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec
S/N Ratio	≥50dB
Scanning System	Progressive
Video Output	HD
TV Systems	PAL/NTSC
Camera Features
IR LEDs Length	14μ x 18PCS
Day/Night	Auto(ICR) / Color / B/W
White Balance	Auto
Gain control	Auto
Lens
Focus Length	Board Lens 3.6mm/F2.0
Focus Type	Fixed
Pixels	2M Pixels
Night Vision
Infrared LED	14μ x 18PCS
nfrared Distance	20M
IR Status	Under 10 Lux By CDS
IR Power On	CDS Auto Control
Camera Features
Day/Night	Color/ B&W (IR-CUT )
Compression	H.264/JPEG/AVI
Image Config	Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control)
Motion Detection	Support
Privacy Masking	3 Rectangular Zone
WDR
Recording Mode	NVR/NAS/CMS/Web
Language	Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian
General
Housing	Plastic
Anti-cut Bracket	Optional
IR Cut Filter	YES
Operation Temperature	'-10℃ ~ +50℃ RH95% Max
Storage Temperature	'-20℃ ~ +60℃ RH95% Max
Power Source	DC12V±10%, 500mA
Dimension	90.5(W) x 80(H) x 80(D)mm
Weight	300g

More details:

You could check the image on PC by our free software CMS

Or on your Phone App:

Packaging & Shipping

Shipping:

By Express	FedEx, DHL, UPS, TNT..., Choose the lowest cost for you
By Air	shipped by our company forwarder or your own forwarder
By sea	shipped by our company forwarder or your own forwarder
