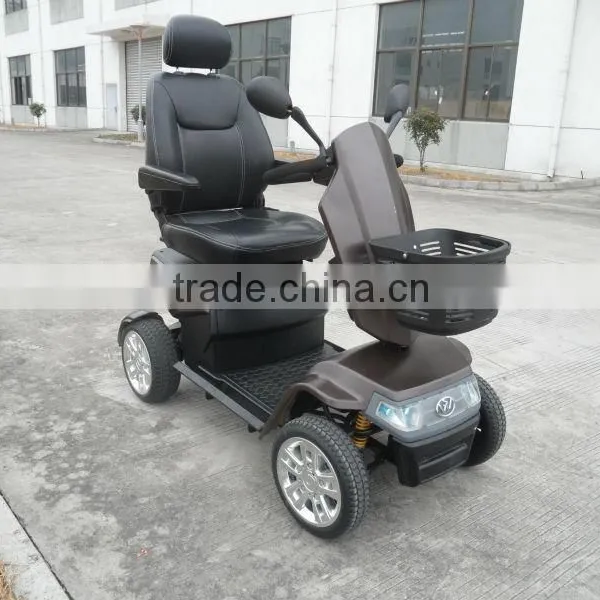

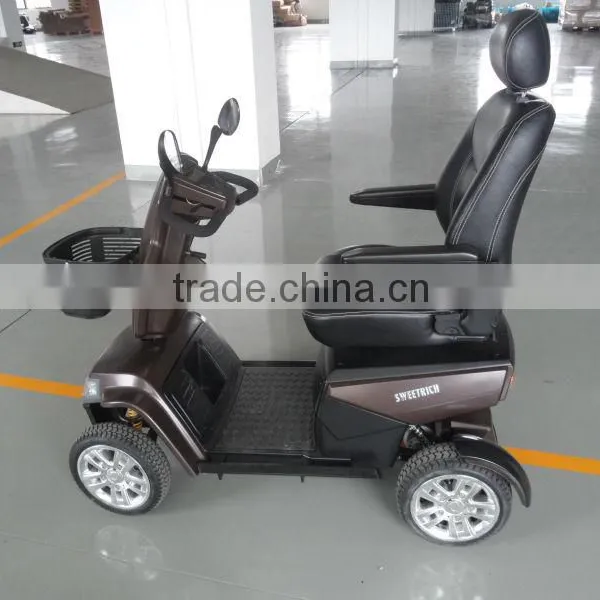

Help CenterLarge Heavy Duty Four-wheel Off-road Mobility Scooter
Related Products
-
High-power Long Ranger Heavy Duty Mobility Scooter SW1400US$ 1,250 - 1,500MOQ: 10 Pieces -
Lluxury Mobility Scooter for Elderly SW1400US$ 1,250 - 1,500MOQ: 10 Pieces
-
Deluxe Heavy Duty Four Wheels Mobility Scooter for ElderlyUS$ 1,250 - 1,600MOQ: 10 Pieces
-
Deluxe Large Eletric Mobility Scooter for AdultsUS$ 1,250 - 1,600MOQ: 10 Pieces
-
Big Power Off-road Electric Mobility Scooter With CE ApprovedUS$ 1,250 - 1,600MOQ: 10 Pieces
Technical Specifications
Dimensions | |
| Overall Length | 1400mm |
| Overall Height | 1080mm |
| Overall Width | 710mm |
| Weights | |
| Total weight including batteries | 125kg |
| Total weight excluding batteries | 80kg |
| Weight of the frame with seat | 65kg |
| Weight of the frame no seat | 45kg |
| Maximum Loads | |
| Max.user's weight | 150-200kg |
| Max.load in the front basket | 10kg |
| Max.loading persons | 1 |
| Driving Features | |
| Max.speed forward | 15Km/h |
| Min.speed forward | 4Km/h |
| Reverse speed | 6Km/h |
| Turning radius | 220cm |
| Ground clearance | 11cm |
| Max.cross obstacle height | 8cm |
| Max.driving slope | 15 degree |
| Max.driving range | 35-40km |
| (Range depends on the circumstances during use,it can be less when hills,wind or loose surface such as gravel or sand.Range can also be vary under theuser's weight) | |
| Driving System and Tires | |
| Drive system | rear wheel with gear box |
| Motor | 24V/800W |
| Motor controller | 24V/140A |
| Brake system | eletro-magnetic parking brade Tires |
| PU tire size | 355x90 |
| Tire size(inflatable) | 355x90 |
| Tube size | 10 |
| Tire pressure | 2.3 |
| Batteries and Charger | |
| Batteries | lead-acid 12V/50Ah |
| Battery charger | 120-230V/24V/5A |
| Max.charger current | 5A |
| Charging time to 80% charge | 8H |
| Charging time to full charge | 10H |
| Additional Datas | |
| Seat width | 500mm |
| Backrest height | 350mm |
| Seat depth | 30mm |
| Armrest height from seat | 160mm |
| Seat height from scooter platform | 400mm |
| Optional Accessories | |
| Seat belt for additional stability | |
| External charger adapter for charging batteries not mounted to the scooter | |
Standard packing:one unit one carton
Size 1:1490x790x70mm
Size 2:560x560x450mm
Loading Capacity: 20units / 20 FT , 50units / 40 HQ
Suzhou Sweetrich Vehicle Industry Technology Co., Ltd established in Suzhou Industry Park located in Jiangsu Province, China in 2007 is a hi-tech based company that has its own brand lines for R&D and production of electric vehicles, for example, electric scooters and power wheelchairs. It has been funded with 50 million investment and covered an area of 60 acres including 30,000 square meters of factory plants.
"Prosperity (Xin) comes from joy & care(Xin)" – This is the reason our company named as “ Xin Xin”. We hope to bring all our clients the joy & care with our excellent products and sincere service. We hope to establish the long-term and friendly relationship of cooperation to join hands in creating a wonderful future!
1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
A: Please tell us about your requirements firstly,so that we can confirm if there are these products in stock .
3. Q: What’s the delivery time?
A: It usually takes about 18-35 working days to produce an order from MOQ to 40HQ container. But the exact delivery time might be different for different orders or at different time.
4. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
5. Q: How does your factory do regarding quality control? A: Quality is priority. Highper People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
6. Q:What's your warranty terms?
A: 1 year warranty for scooter & wheelchair & battery;1 year for Electronic control system; 3 years for frame & other metal parts; within warranty free accessories & video provided,free training service,life-time technical support service
7. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Assessed Supplier which report No is 9513118_P+T checked by TUV and Alibaba specially . And you can download the certification via our Alibaba website
we are at your service anytime.
