Home > Products > refrigeration parts > good sale 4hp Condensing unit refrigeration unit cooling system for cold room

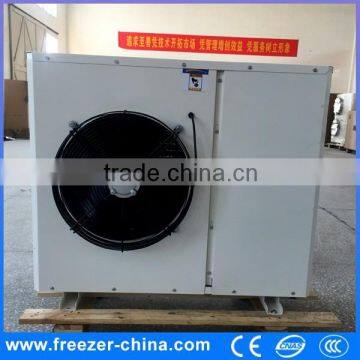

good sale 4hp Condensing unit refrigeration unit cooling system for cold room
USD $655 - $855
/ Set
1 Set(Min.Order)
- 5000 Set / Sets per Month
- Lianyungang/Shanghai
You May Like
-
good sale 3.5hp 380V Condensing unit refrigeration unit cooling system for cold room
-
high quality Condensing unit cooling system for cold room
-
good sale 7hp Condensing unit refrigeration unit cooling system for cold room
-
good sale 5hp Condensing unit refrigeration unit cooling system for cold room
-
good sale 3.5hp 220V Condensing unit refrigeration unit cooling system for cold room
-
refrigerator spare parts Famous Brand compressor units
Product Details
| Condition | New | Temperature | 0-15℃ | |
| Place of Origin | Jiangsu, China | Brand Name | SANYE | |
| Model Number | HS303CH3 | Voltage | 220V/380V | |
| Power(W) | 190 | Dimension(L*W*H) | 1020*490*835 | |
| Weight | 90 | Certification | ISO | |
| Warranty | 1 year | After-sales Service Provided | No overseas service provided |
Product Description
Product Description
1. Various kinds of models, brands for your optional;
2. Large volume, small dimension, high efficient;
3. Air cooled;
4. Compressor brand: Copeland, Bitzer, Sanyo, etc for your optional;
5. Safe and reliable system.
Product Parameters
| Model | HS261CH2 | HS263CH3 | HS303CH3 | HS373CH3 | HS453CH3 | HS235CH3 | HS603DH3 | HS753DH3 | HS903DH3 | |
| Refrigerant | R22 | |||||||||
Applicable temperature ( °C) | 0-15 | |||||||||
| Power supply | 220V/50HZ | 380V/50HZ | ||||||||
| Scroll compressor model | C-SB261H5A | C-SB263H8A | C-SB303H8A | C-SB373H8A | C-SB453H8A | C-SBR235H38A | C-SC603H8H | C-SC753H8H | C-SC903H8H | |
| 3.5hp (side air outlet) | 3.5hp (side air outlet) | 4hp (side air outlet) | 5hp (side air outlet) | 6hp (side air outlet) | 7hp (side air outlet) | 8hp (top air outlet) | 10hp (top air outlet) | 12hp (top air outlet) | ||
| Max. running current (A) | 12.9 | 4.9 | 5.5 | 6.6 | 7.7 | 8.8 | 10.6 | 12.8 | 15.1 | |
| Condenser | fan quantity | 1 | 1 | 1 | 2 | 2 | 2 | 1 | 1 | 1 |
| blowing rate (m3/h) | 3600 | 3600 | 3600 | 5400 | 7200 | 7200 | 8800 | 12000 | 12000 | |
| fan power | 195 | 190 | 190 | 150x2 | 190x2 | 190x2 | 700 | 780 | 780 | |
| Interface | Inhale interface (mm) | Φ16 | Φ16 | Φ16 | Φ19 | Φ19 | Φ19 | Φ22 | Φ22 | Φ22 |
| Fluid supplying interface (mm) | Φ12.7 | Φ12.7 | Φ12.7 | Φ12.7 | Φ12.7 | Φ12.7 | Φ16 | Φ16 | Φ16 | |
| Weight (kg) | 87 | 87 | 90 | 107 | 112 | 114 | 177 | 180 | 186 | |
| Dimension | Length (mm) | 1020 | 1020 | 1020 | 1030 | 1030 | 1030 | 1000 | 1000 | 1000 |
Width (mm) | 490 | 490 | 490 | 490 | 490 | 490 | 1000 | 1000 | 1000 | |
| Height (mm) | 835 | 835 | 835 | 1290 | 1290 | 1290 | 1470 | 1470 | 1470 | |
| Design condensing temperature (°C) | 45 | |||||||||
Freezer Accessories
Packaging & Shipping
Company Information
Our company has via some certifications,such as ISO9001,ISO14001,CE ,3C and so on.We apply high quality control system components ( compressors, etc ) from famous manufacturers (international and domestic) to our “huaihai” brand commercial series refrigeration equipments. By this way, the entire refrigeration system will be kept stable and reliable. Our products meet the requirements of various national index and have the characteristics of stable quality, good performance, high efficiency, and so on. And thus our products win very good reputation among the users.
