Specifications
UNS N06985 Hastelloy alloy G3 pipe with Top Quality1.standard:ASTM
2.O.D.:6-630mm
3.W.T:0.5-90mm
UNS N06985 Hastelloy alloy G3 pipe with Top Quality
Details:
Name |
UNS N06985 Hastelloy alloy G3 pipe with Top Quality |
Pipe size |
O.D.: 6mm – 630mm / DN 6 – 600 / NPS 1/8'' – 24'' W.T.: 0.5mm – 90mm Sch 5S – Sch XXS |
Length |
1000-6000mm or as your requirement |
Materials |
B2,B3,C276,C4,C22,C2000,G3,G30 |
Minimum order |
1 Ton |
Standards |
ASTM A511 A269 A312 A213, GB/ T14976-2002 GB 13296-91 |
Application |
machine made industry, chemical industry, spin, shipping industry , architecture , food |
Packaging |
export stand (swathe with waterproof paper ,metal belt pack the sheet,then put them in the wooden pallet, then put it in the container) or as customers requirement |
Payment terms |
T/T, L/C, and 30% deposit in Advance, and the balance will be paid before loading |
Surface |
polish, primary color, matt, mirror face ,wire drawing |
Main markets |
Asia, Europe, Middle-east area, Africa, South/North America |
Certification |
SGS, ISO |
Chemical composition:
| C | Cr | Co | Cu | Fe | Mn | Mo | Ni | Nb+Ta | P | Si | S | W |
| 0.015 max | 21 - 23.5 | 5 max | 1.5 - 2.5 | 18 - 21 | 1 max | 6-8 | Balance | 0.5 max | 0.04 max | 1 max | 0.03 max | 1.5 max |
Physical Data :
| Density (lb / cu. in.) | Specific Gravity | Specific Heat (Btu/lb/Deg F - [32-212 Deg F]) | Melting Point (Deg F) | Thermal Conductivity | Mean Coeff Thermal Expansion | Modulus of Elasticity Tension |
| Specific Gravity | 8.31 | 0.109 | 2450 | 70 | 8.1 | 27.8 |

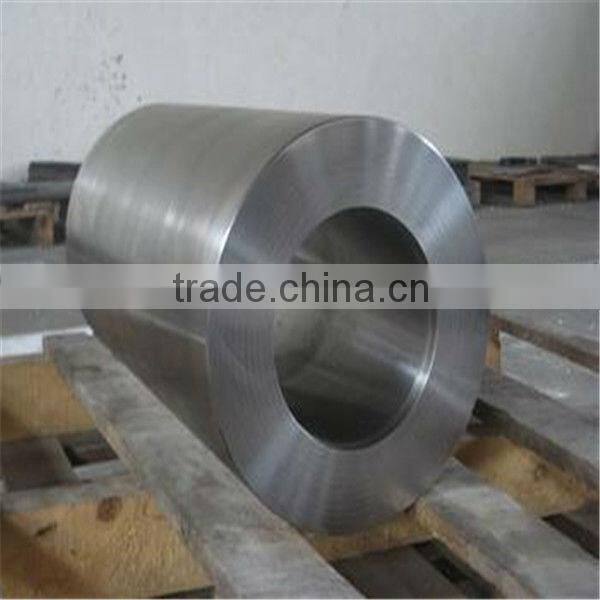

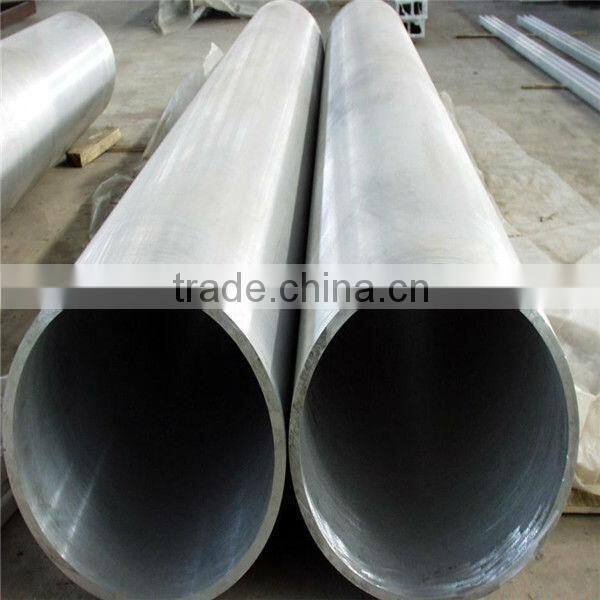

Product show:
Hastelloy G3 Application field:
G3 is widely used in the chemical field and petrifaction field, such as the element of chloride organic and catalyze system.This material especially suit for high temperature environment, impure inorganic acid and organic acid (such as formic acid and acetic acid), sea-water corrosion environment.
The digester and bleacher in the use of paper pulp and paper making industry.
Absorption tower, re-heater and fan in the FGD system.
The equipment and parts in the use of acidic gas environments.
