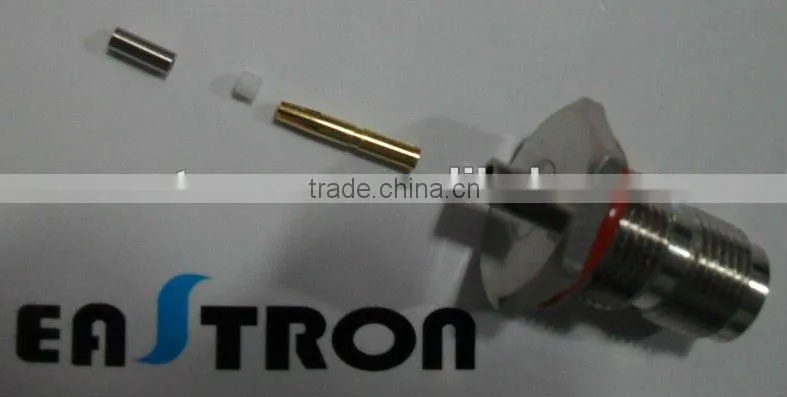

Help CenterET-3803 TNC Connectors Female Straight Crimp For Cable
Related Products
-
ET-3809 TNC Connectors Reverse Polarity Female R/A Crimp For CableUS$ 1 - 1.1MOQ: 1 Piece -
ET-2901 TNC Connectors Male Clamp Straight For CableUS$ 0.1 - 0.11MOQ: 1 Pair
-
EASTRON TNC Bulkhead TNC Connector for Cable Assembly With Mini Coaixal 1.13, 0.81, 1.37 CableUS$ 0.1 - 0.11MOQ: 1 Piece
-
Brass TNC Connector Female to N Male AdaptorUS$ 0.3 - 0.35MOQ: 20 Pieces
-
TNC Male Crimp Connector 01 for Cable, RF Connector, Coaxial Connector End 08US$ 0.3 - 0.5MOQ: 5 Pieces
Specifications
TNC Crimp Connector1)50 ohms female crimp terminal
2)ISO9001 qualified
3) crimp cable RG178/U OD1.13mm
4)reasonable price
TNC Connectors Female Straight Crimp For Cable .
IMPEDANCE 50ohm
Frequency Range 0-11GHZ
Working Voitage 1000 VRMS max
DIELECTRIC WITHSTANDING VOLTAG 2500VRMS min
Material:
Body metal parts Brass nickel or silver per requirement
Center Contacts Plug:Brass Gold or Silver per requirement
Insulators teflon Delrin none
Crimp ferrules Annealed copper nickel or Gold Per requirement
Parameter sheet
|
|
Impedance |
50ohm |
Frequency Range |
0-11G |
|
|
Working Voltage |
1000 VRMX Max |
Contact Resistance |
center contact:3 miliohms max outer contacr:2milliohms max |
|
|
Insulation resistance |
5000 miliohms |
|
|
|
|
Authentication |
ISO9001: 2000, 14001: 2004 RoHS |
|
Product Group
CABLE View:
Production Line View
Inspection View
Quality
-
QC/Technical Support
We possess digital calipers, digital micrometers, thread and pin gauges, tool microscopes, pitch diameter micrometers, height gauges, profile projectors, hardness testers, ohm testers and push/pull testers.
-
Awards & Other Recognitions
We are ISO 9001:2008 certified
FAVOURABLE PRICE
HIGH QUALITY
