Help CenterEB-1901 TNC MALE TWIST ON R/A FOR CABLE -RG59/U -RG6/U
Related Products
-
ET-1801 TNC Connectors Female Twist ON Straight For Cable RG59 OR RG6US$ 0.1 - 0.11MOQ: 1 Piece -
ET-2902 TNC Connectors Male Clamp Straight For CableUS$ 0.1 - 0.11MOQ: 1 Piece
-
ET-3902 TNC CONNECTORS Male R/A Crimp For CableUS$ 0.1 - 0.11MOQ: 1 Piece
-
ET-3801 TNC Connectors Female Straight Crimp For CableUS$ 0.1 - 0.11MOQ: 1 Piece
-
ET-3911 TNC Connectors Male Straight Crimp For CableUS$ 0.1 - 0.11MOQ: 10 Pieces
Specifications

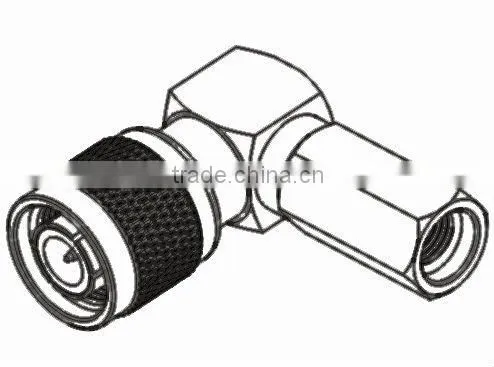

TNC MALE TWIST ON R/A FOR CABLE -RG59/U -RG6/U1)brass or zinc with gold or nickel plated
2)easily fitting to cable twist
solderless connector are popular for cable
Coaxial connector, RF connector, TNC connectors are designed to provide high electrical performance for microwave applications up to 12GHZ.TNC connectors ensure quick locked and excellent durability and mechanical strength.

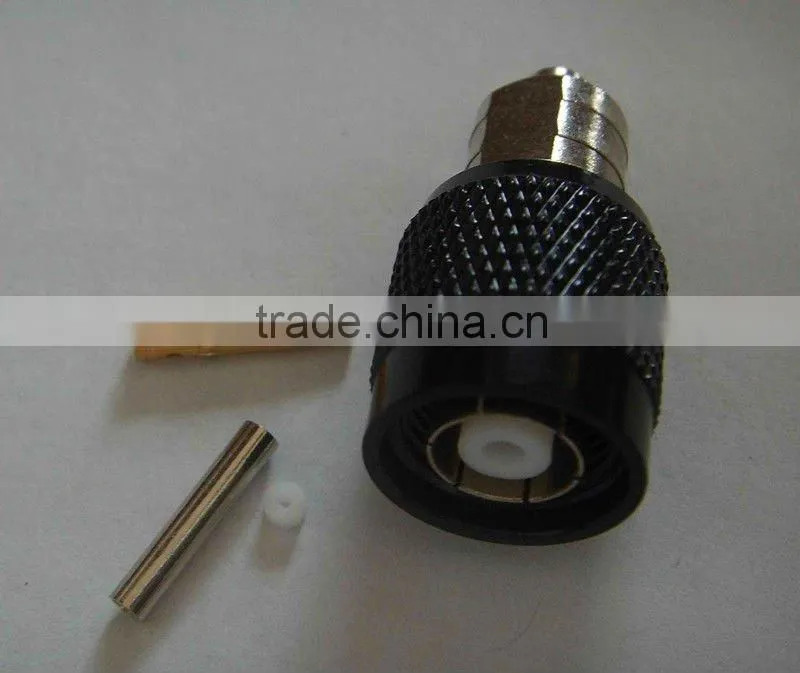

TNC male twist on for cable
Body |
brass |
Nickel or gold plated |
insulator |
PTFE |
|
Contact |
brass |
Gold plated thickness >8u” |
1. ELECTRICAL
Impedance: 50 OHM nominal
Frequency Range: 0~4GHz
Rating Voltage: 500V
Dielectric Withstanding Voltage: 1500V
Contact Resistance: 3.0 mW MAX
Insulation Resistance: 5000 MW MIN.
2. GENERAL CHARACTERISTICS
Storage Temperature: -40°C to 85°C
3. RELIABILITY
DURABILITY: >500 CYCLES
SALT SPRAY TEST: APPEARANCE OK & CONTACT RESISTANCE 40mW max. (Exposed to salt mist conditions: concentration 5±1%, PH: 6.5-7.2, cycle is 13’s spray, 11’s stop, temp is 35±2°C, time: 8 hours.)
4. Rohs:
All the components of this connector are compliant with European directive 2002/95/CE”.
TNC connectors are characterized by their 2-stud quick connect/disconnect bayonet coupling arrangement.
They are one of the most popular of the coaxial connector and are suitable for a wide range of systems,including Radio Telecommunication systems,Medical Equipment,Computer Networks,Safety&Security and test instrumentation.Available in 50Ω,75Ω,and 50Ω reverse polarity.

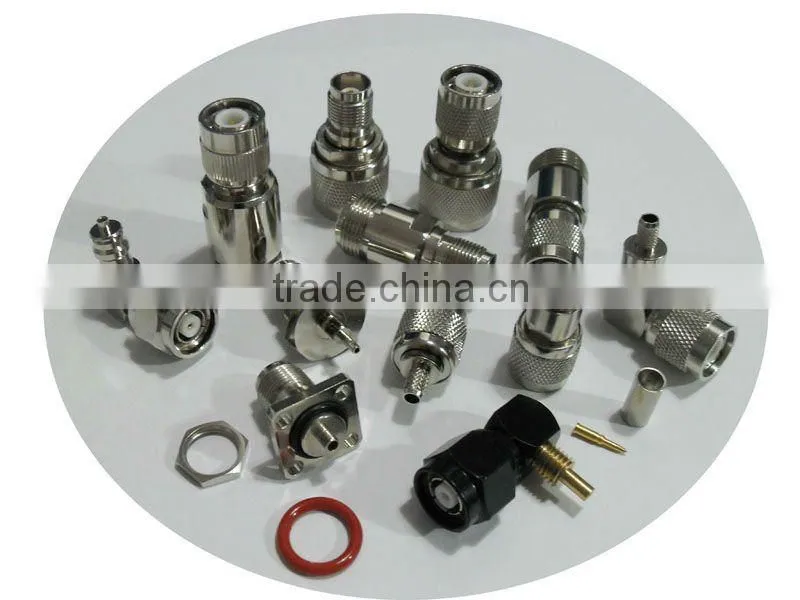

5.Product Group
6.Production Line View
7.Inspection View
8.Quality
-
QC/Technical Support
We possess digital calipers, digital micrometers, thread and pin gauges, tool microscopes, pitch diameter micrometers, height gauges, profile projectors, hardness testers, ohm testers and push/pull testers.
-
Awards & Other Recognitions
We are ISO 9001:2008 certified
FAVOURABLE PRICE
HIGH QUALITY
