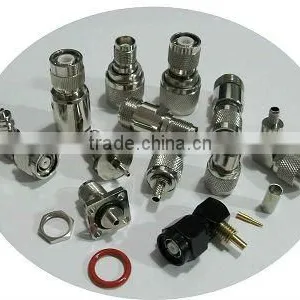

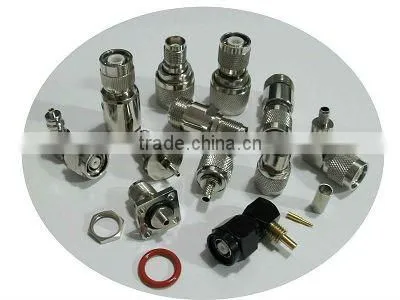

TNC MALE SOLDER AND CRIMP FOR CABlE
- 10000 Piece / Pieces per Month
- T/T L/C D/P D/A Credit Card PayPal
- Website Selling Bnc Connector Auto Electrical Wire Connector
- Sell OnlineAutomotive Lock Wire Joint Connector
- OEM/ODM Factory Direct 2Mm Wire To Board Connector
- Experienced Factory Automotive Jst Connector Wire To Wire
- China Professional Automotive 2 Pin Male Female Jst Connector
- Custom Product Wire Spring Socket Connector
Product Details
Place of Origin: | Guangdong, China | Brand Name: | EASTRON | Model Number: | TNC CONNECTORS |
Type: | TNC | Application: | RF | Gender: | Male |
Product Description
Specifications
TNC CONNECTOR Coaxial connector ;TNC connector, RF connector, TNC connector type ;TNC female to double male.solderless connector are popular for cable
Coaxial connector, RF connector, TNC connectors are designed to provide high electrical performance for microwaveapplications up to 12GHZ.TNC connectors ensure quick locked and excellent durability and mechanical strength.
TNC male twist on for cable
Body | brass | Nickel or gold plated |
insulator | PTFE | |
Contact | brass | Gold plated thickness >8u” |
1. ELECTRICAL
Impedance: 50OHM
Frequency Range: 0~4GHz
Rating Voltage: 500V
Dielectric Withstanding Voltage: 1500V
Contact Resistance: 3.0 mW MAX
Insulation Resistance: 5000 MW MIN.
2. GENERAL CHARACTERISTICS
Storage Temperature: -40°C to 85°C
3. RELIABILITY
DURABILITY: >500 CYCLES
SALT SPRAY TEST: APPEARANCE OK & CONTACT RESISTANCE 40mW max. (Exposed to salt mist conditions: concentration 5±1%, PH: 6.5-7.2, cycle is 13’s spray, 11’s stop, temp is 35±2°C, time: 8 hours.)
4. Rohs:
All the components of this connector are compliant with European directive 2002/95/CE”.
TNC connectors are characterized by their 2-stud quick connect/disconnect bayonet coupling arrangement.
They are one of the most popular of the coaxial connector and are suitable for a wide range of systems,including Radio Telecommunication systems,Medical Equipment,Computer Networks,Safety&Security and test instrumentation.Available in 50Ω,75Ω,and 50Ω reverse polarity.
Product Group
Production Line View
Quality
- QC/Technical Support We possess digital calipers, digital micrometers, thread and pin gauges, tool microscopes, pitch diameter micrometers, height gauges, profile projectors, hardness testers, ohm testers and push/pull testers.
- Awards & Other Recognitions We are ISO 9001:2008 certified
Profile Each of our staff members possesses a college degree, and on average, they each have 4 years of experience.
