Help Center7" Digital Car Reversing Camera System With Touch Buttons
Related Products
-
7" Digital Car Rear View System With Touch ButtonNegotiableMOQ: 1 Piece -
5.6-inch Digital Rear View Parking Sensors SystemNegotiableMOQ: 1 Piece
-
7-inch Digital Auto Parking Sensors SystemNegotiableMOQ: 10 Pieces
-
Vehicle Rear View System With 7 Inch Digital TFT LCD MonitorNegotiableMOQ: 1 Piece
-
7 Inch Digital Vehicle Car Security SystemNegotiableMOQ: 1 Piece

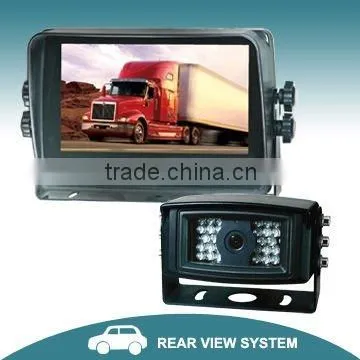

7" Digital reversing camera system features:
7 Inch TFT LCD color monitor with digital screen
Automatic backlighting for buttons
Control the monitor with finger tips on the touch button system
TFT LCD monitor with wide view angle and high resolution display.
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing.
Multi-languages of display available: English, French, Portuguese, Spanish, Russian, Dutch, German, Italian.
Mirror and normal image switch available
Full-function remote controller
Multiple video formats available: PAL /AUTO/NTSC
13-Pin: 3 cameras inputs.
22-Pin: 4 cameras inputs, 1 video output and 1 audio output.
Operates from 10~32V. Support 12V or 24V automobile battery.
Built-in speaker
Automatically switches to back-up, left or right side camera views.

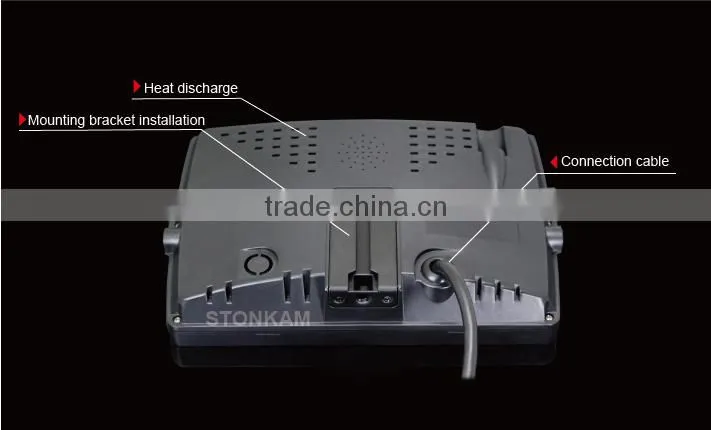

| 1 | Heat discharge |
| 2 | Mounting bracket installation |
| 3 | Connection cable |

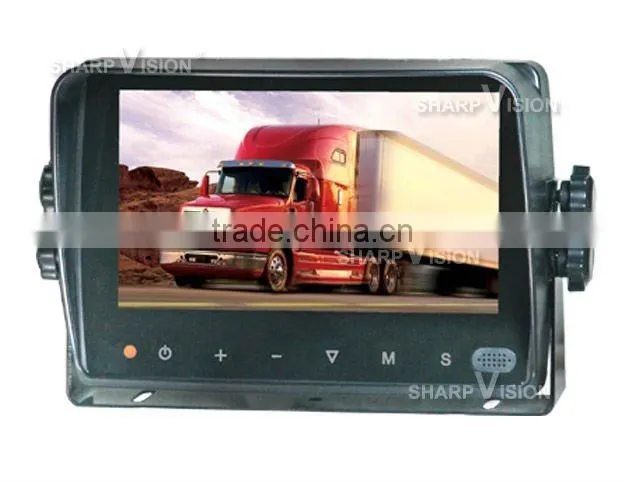

7" TFT- LCD color monitor with digital screen - MO-121D
Product: 7" TFT- LCD color monitor with digital screen
Audio output: 1W.
Loudspeaker: one 15x24mm round loudspeaker.
Power supply: Automobile storage battery (10-32V).
Power consumption: about 6W .
Outer dimension: 194.6mm (W) × 128mm (H) × 39.3mm (T)
Dot pitch: 0.192 (H) × 0.1805 (V).
Resolution: 800×3 (RGB) × 480.
Contrast: 500:1.
Brightness: 400cd/m².
Viewing angle: U: 50° / D: 60°, R/L: 70°/70°.
Operating temperature: -20~+50ºC,RH90%.
Storage temperature: -30~+80ºC,RH90%.

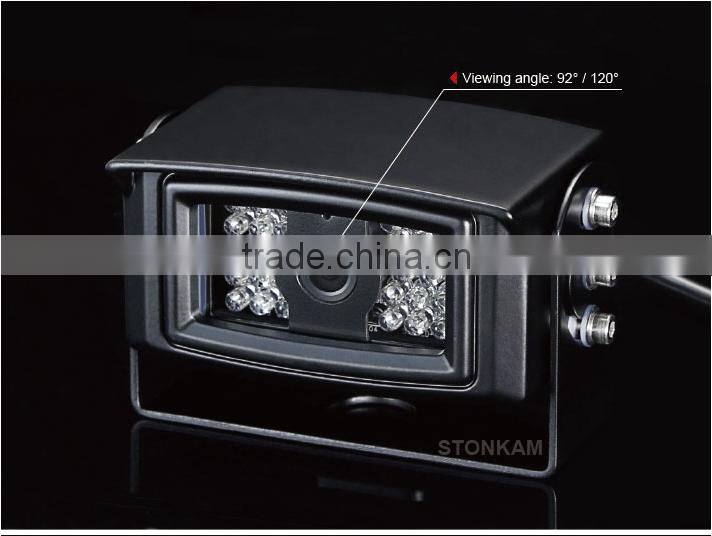

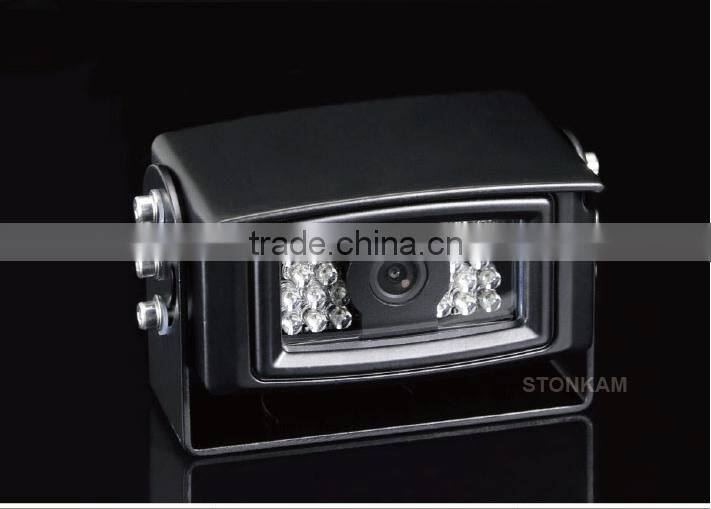

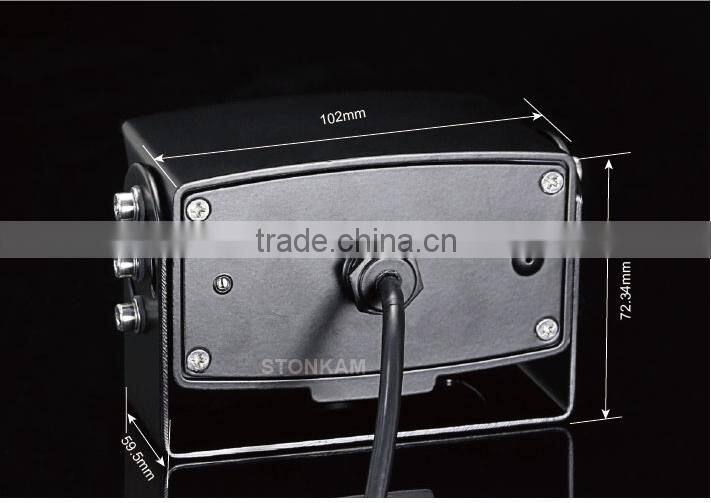

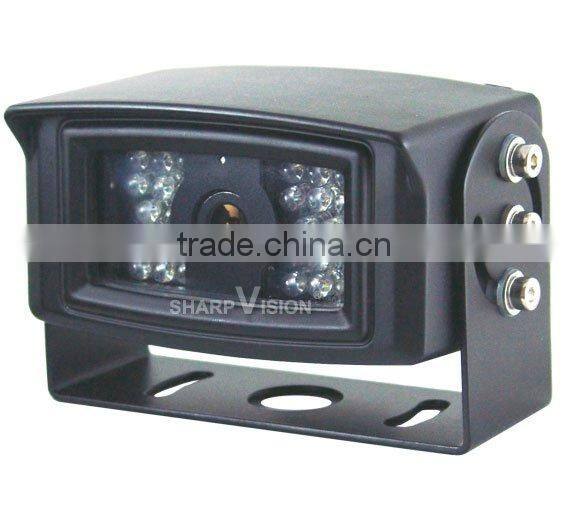

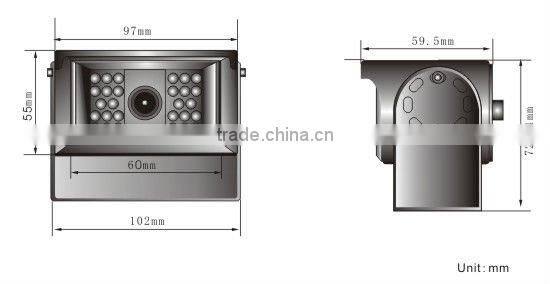

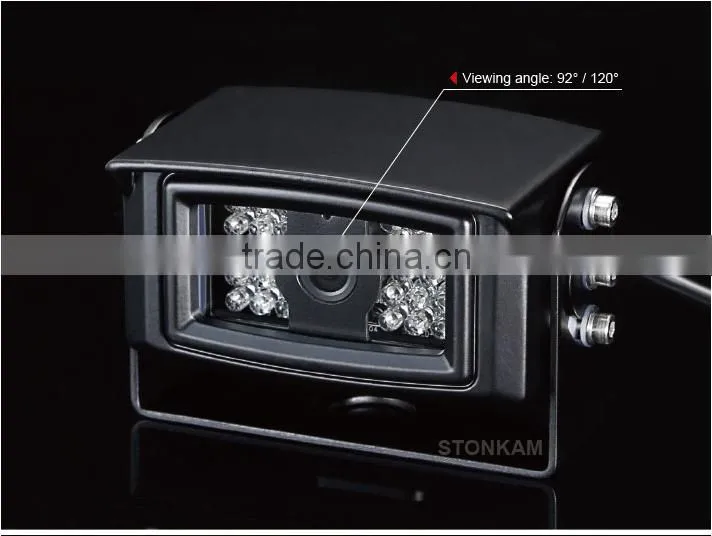

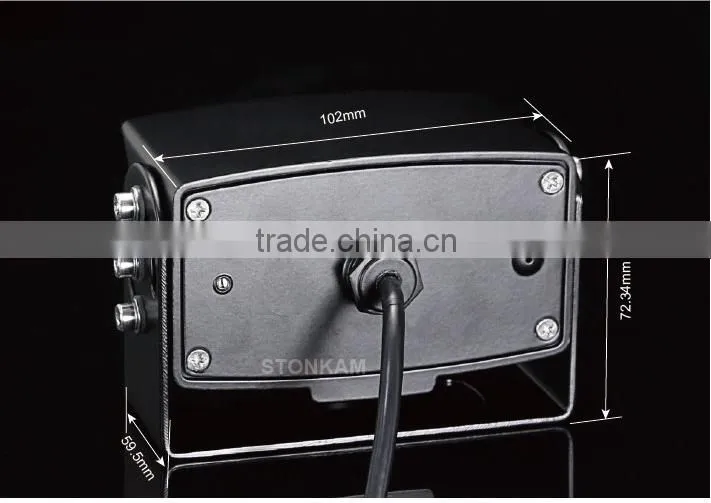

Camera Features(CW-086):
Waterproof and weather resistant housing for outdoor use
Night vision available, day/ night sensor for automatic adjustment
IR distance: 22m
Infrared LED light: 28

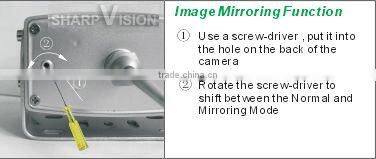

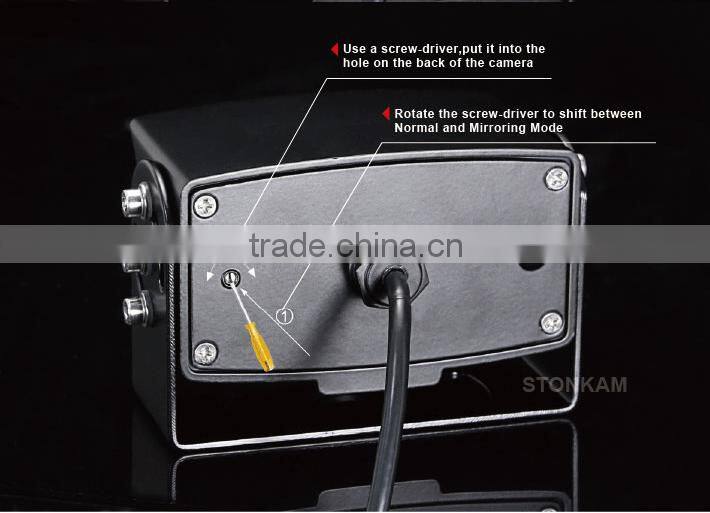

Mirror/ Normal image switch (depending on the chips)
Distance label selectable to be open or closed
