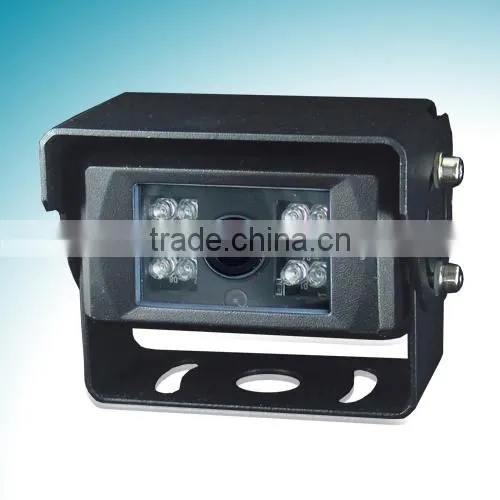

Help Center1/3inch High Definition Car Camera With 500tvl CMOS Sensor
Related Products
-
IR Waterproof Car Color 1 4 Sharp Ccd CameraNegotiableMOQ: 1 Piece -
Waterproof Infrared Car Rear View Camera With 18 IR LedsNegotiableMOQ: 5 Pieces
-
Waterproof Backup Rear View Reversing CameraNegotiableMOQ: 5 Pieces
-
Waterproof Color Rear View Camera for Toyota Land CruiserNegotiableMOQ: 5 Pieces
-
Waterproof Car Rear View CameraNegotiableMOQ: 5 Pieces
High definition car camera features:
Super wide angle (150°)
Automatic heating when the camera's running temperature is below 10°C (optional)
Distance label selectable to be open or closed
Waterproof and weather resistant housing for outdoor use
Excellent night vision
IR distance: approx. 10m
Infrared LED light: 12
Mirror / Normal image switch (depending on the chips)
1/3" COLOR CMOS Specifications
Image device: Pixelplus 1/3” Color CMOS PC1089
TV System: PAL/NTSC
Effective Pixels: 728 x 488 pixels
Sensing Area: 4.6228mm x 3.6112mm
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 500 TV Lines
Horizontal Sync. Frequency: 15.625KHz/15.734KHz
Vertical Sync. Frequency: 50Hz/60Hz
Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR)
Microphone: Optional
Video Output: 1.0Vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
Signal to noise ratio: Better than 48dB
White balance: Auto
Electronic Shutter: Auto:1/50(PAL),1/60(NTSC)~1/100000
Backlight Compensation: Auto
Current Consumption: Day: 12V/55mA, 24V/40mA; Night: 12V/120mA, 24V/75mA
Power Supply: 10~32V
Operating Temperature: -30°C~70 °C , RH 95% MAX
Storage Temperature: -40°C~80 °C , RH 95% MAX
Lens: f=2.8mm, F=2.0
Lens Angle: 120° Lens Angle:120°
Testing Standard: MIL-STD-105E
Tests
Manufacturing Process
Tests
FAQ
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: Our production quality follows the standard of MIL-STD-105E. We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
