Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > Sea Snail Shape Waterproof IR Ccd CCTV Camera

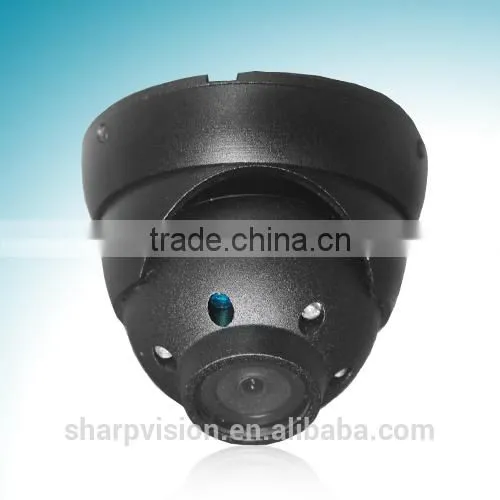

Sea Snail Shape Waterproof IR Ccd CCTV Camera

Sea Snail Shape Waterproof IR Ccd CCTV Camera photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
OEM
Model Number:
CD-069
Type:
Other, Analog Camera, Video Camera
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Brand Name OEM
Model Number CD-069
Type Other, Analog Camera, Video Camera
Style Dome Camera
Sensor CCD
Technology Infrared
Special Features Vandal-proof





Waterproof IR ccd CCTV camera Features:




Compact profile
Waterproof and anti-vandal housing
Hard ceiling or suspended ceiling applications
5 IR LEDs
IR Distance: 3~5 m
High resolution



COLOR CCD CAMERA SPECIFICATION


Image Device: 1/3SONY Super HAD CCD
TV System: PAL/NTSC
Total Number Of Pixels: PAL: 537 (H) × 597(V) / NTSC: 537(H) × 505(V)
Effective Pixels: PAL:500(H) × 582(V) / NTSC:510(H) × 492(V)
Sensing Area: 4.9mm(H) × 3.7mm(V)
Sync. System: Internal
Resolution: 420 TV Lines
Minimum Illumination: 0Lux (Infrared lamps on) 0 .05Lux(day) / F1.2
Video Output: : Composite Signal (1.0Vp-p, 75Ω)
Gamma Correction: 0.45
AGC: ON
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter : 1/50-1/100,000Sec 1/60-1/100,000Sec
BLC: Auto
Current Consumption: Max. 300A
Power Supply: DC12V
Operating Temperature: -20~ 70 RH95% Max
Storage Temperature: -40~ 80 RH95% Max
Lens: 2.8mm, 3.6mm Optional
Lens Angle: 120° ,92°




Sea snail shape waterproof IR ccd CCTV cameraSea snail shape waterproof IR ccd CCTV cameraSea snail shape waterproof IR ccd CCTV cameraSea snail shape waterproof IR ccd CCTV camera






Recommended Products

 Sea snail shape waterproof IR ccd CCTV camera











Certificates

 Sea snail shape waterproof IR ccd CCTV camera



Why Choose Us?

 Sea snail shape waterproof IR ccd CCTV camera



Quality Control Flow Chart



Testing Standard: MIL-STD-105E

Sea snail shape waterproof IR ccd CCTV camera



Tests

 Sea snail shape waterproof IR ccd CCTV camera

Manufacturing Process
Tests



  Sea snail shape waterproof IR ccd CCTV camera



FAQ



Q: What is the MOQ ?
A: 1 peice



Q: How fast for sample delivery?
A: 3-7 days



Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.





Q: How about the warranty period?
A: One year!



Q: How can you guarantee the quality?
A: Our production quality follows the standard of MIL-STD-105E. We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
