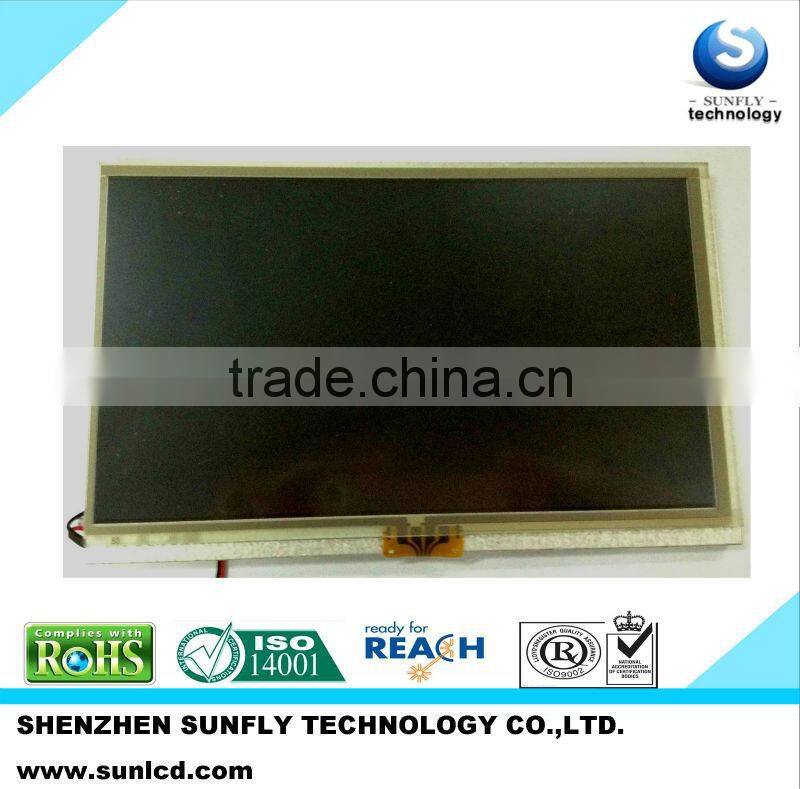

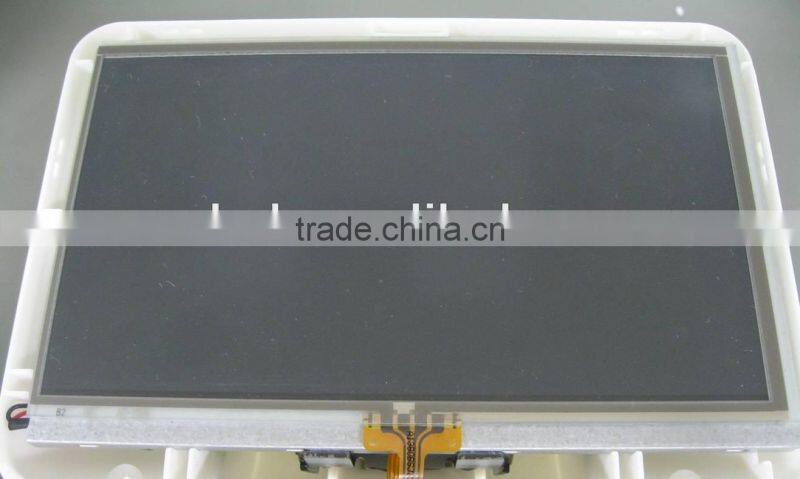

7 Inch Touch Lcd RGB Interface 7 Inch 800x480 Tft Lcd Display
US$ 1.5 - 2.5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sunfly
Model Number:
YXM070TLW06DE
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong SAR
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2.4" Tft Lcd Display 128x160 Lcd Display Tft Lcd Screen in StockUS$ 0.1 - 0.1MOQ: 1 Piece -
Graphic Lcd 122x32 STN 122x32 Dots Graphic Lcd DisplayUS$ 0.1 - 0.1MOQ: 1 Piece
-
Tft Lcd 5.0" Digital WVGA 800x480 Pixels 5 Inch Tft Lcd DisplayUS$ 0.1 - 6MOQ: 100 Pieces
-
Tft Lcd 5 Inch Parallel RGB 800x480 5 Inch Tft Lcd ModuleUS$ 0.1 - 6MOQ: 100 Pieces
-
144x64 Lcd FSTN 144x64 Cog Graphic Lcd Display ModuleUS$ 0.01 - 0.02MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
Sunfly
Model Number
YXM070TLW06DE
Type
Other, TFT, capacitive touch panel
7 inch touch lcd RGB interface 7 inch 800x480 tft lcd display
1 Features:
-Transmisive and back-light with 27pcs LED are available
- TN (Twisted Nematic) mode.
- Digital RGB (6bits/color) data transfer.
- Data enable mode.
- Data inverted function for reducing EMI.
2 LCD Module

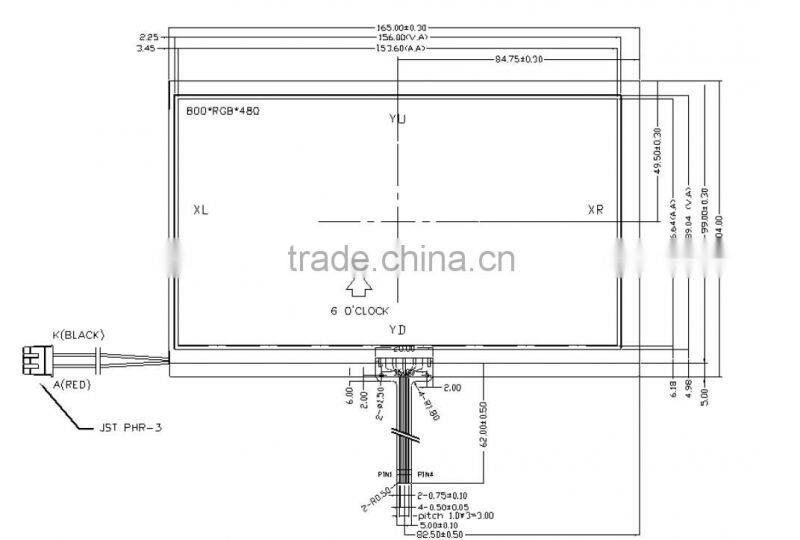

| Outline dimension : | 165.0x104.0x5.4 mm |
| Active area : | 153.08(W) x 86.58 (H) mm |
| Dot pitch : | 0.107(W) x 0.370 (H) mm |
| Color arrangement : | RGB Stripe 6 bit |
| Color numbers : | 16 million |
| Touch panel: | 4-wire Resistance Touch panel |
| Viewing angle : | 70/70/50/70 ( 6 o'clock ) |
| Contrast ratio : | 300 |
| Luminance : | 280 cd/m2 |
| Driving board : | T-con board |
| Operating temp. : | -20 - +70 degree |
| Storage temp. : | -30 - +80 degree |
3. Electrical Specifications

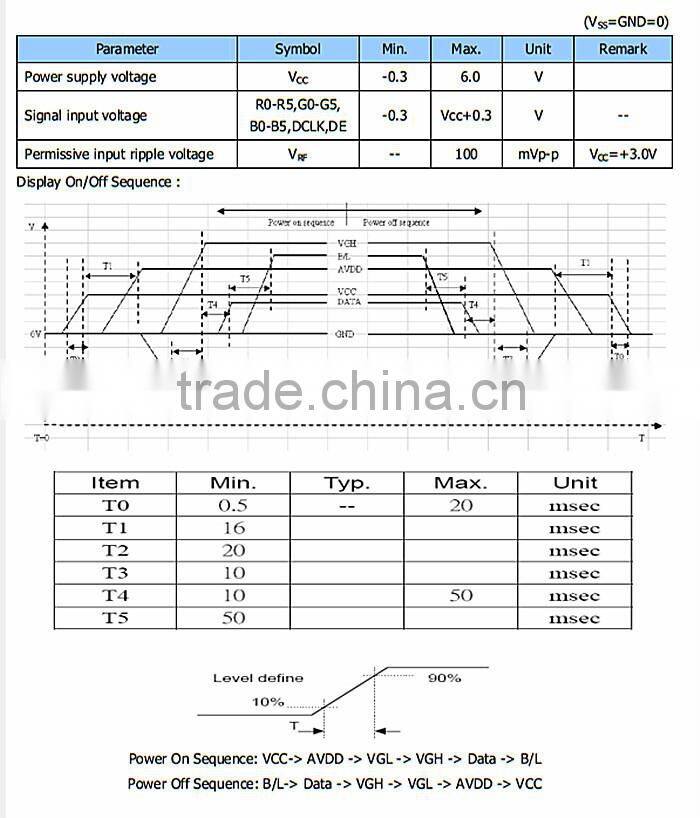

4. Electrical Absolute Maximum Ratings

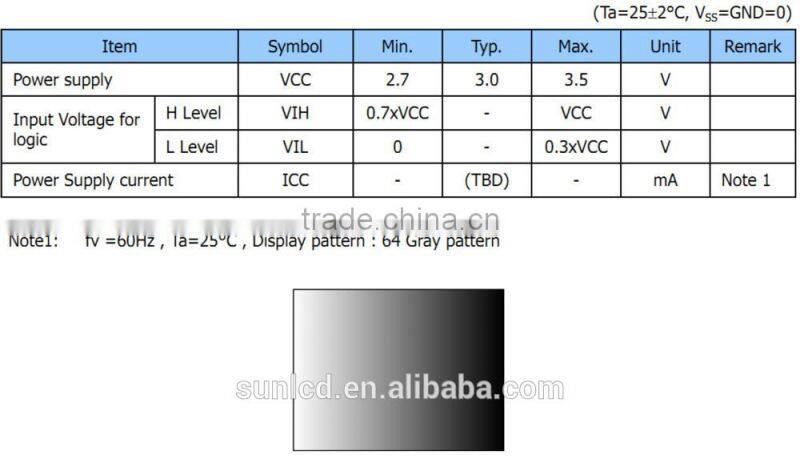

5. DC Electrical Characteristics of the TFT LCD

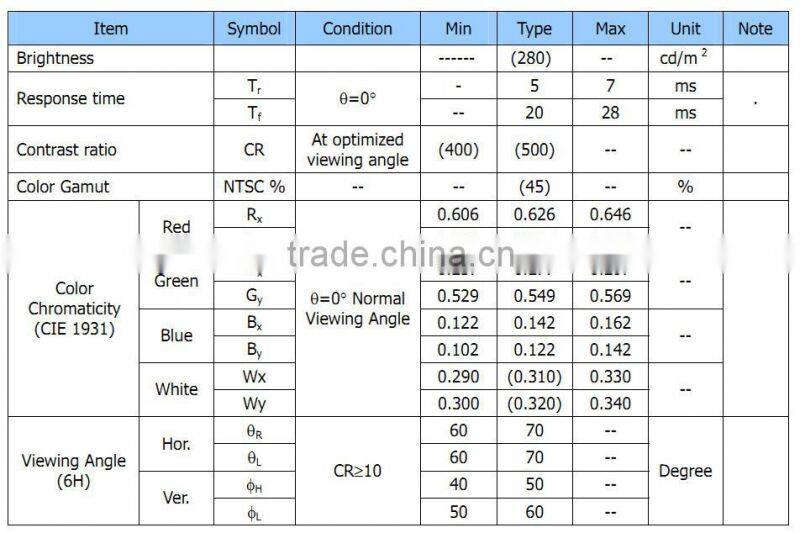

6. Optical Characteristics
The following items are measured under stable conditions. The optical characteristics should be measured
in a dark room or equivalent state with the methods.
Measuring equipment: BM-7A
