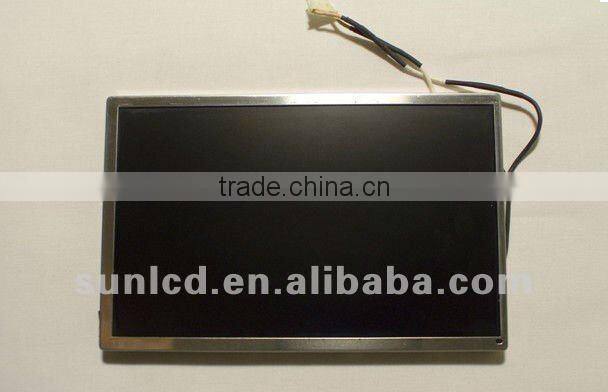

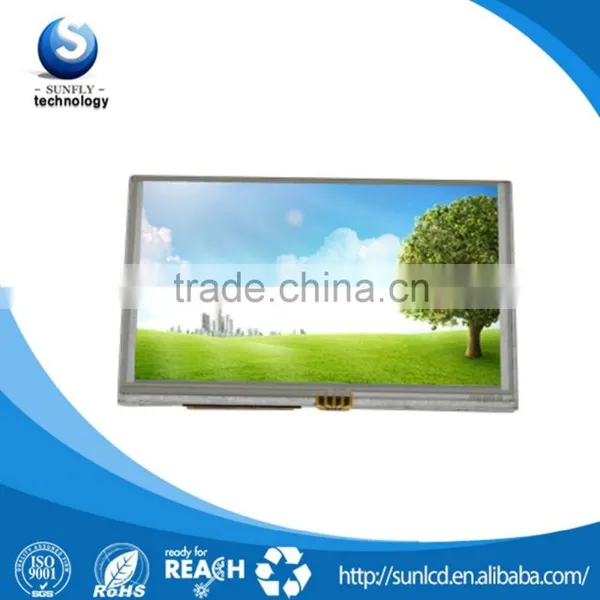

lcd panel 7" RGB 800x480 with control board lcd touch 7 inch lcd
1 Features:
-Transmisive and back-light with 27pcs LED are available
- TN (Twisted Nematic) mode.
- Digital RGB (6bits/color) data transfer.
- Data enable mode.
- Data inverted function for reducing EMI.
2 LCD Module

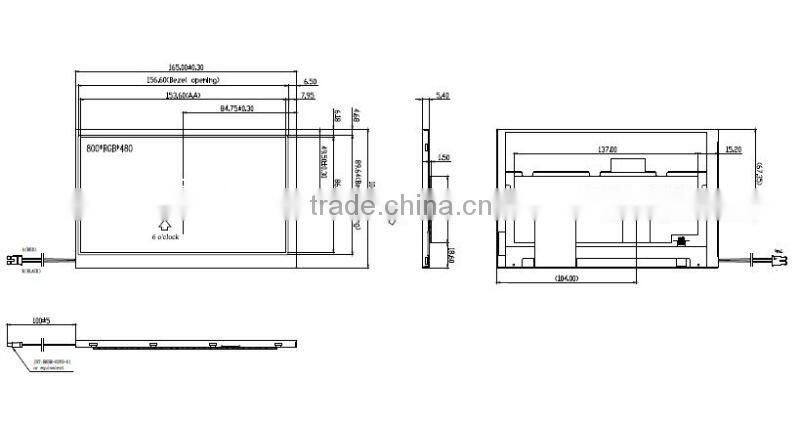

| Outline dimension : | 165.0x104.0x5.4 mm |
| Active area : | 153.08(W) x 86.58 (H) mm |
| Dot pitch : | 0.107(W) x 0.370 (H) mm |
| Color arrangement : | RGB Stripe 6 bit |
| Color numbers : | 16 million |
| Touch panel: | 4-wire Resistance Touch panel |
| Viewing angle : | 70/70/50/70 ( 6 o'clock ) |
| Contrast ratio : | 300 |
| Luminance : | 280 cd/m2 |

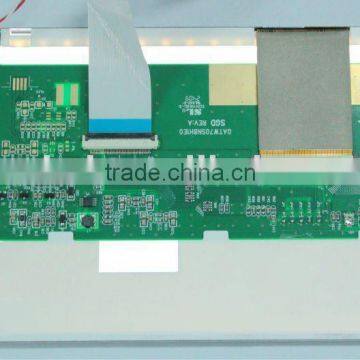

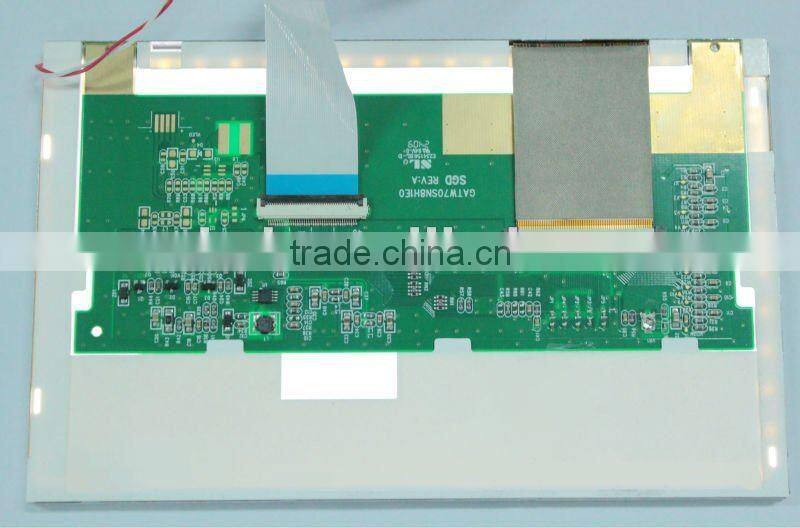

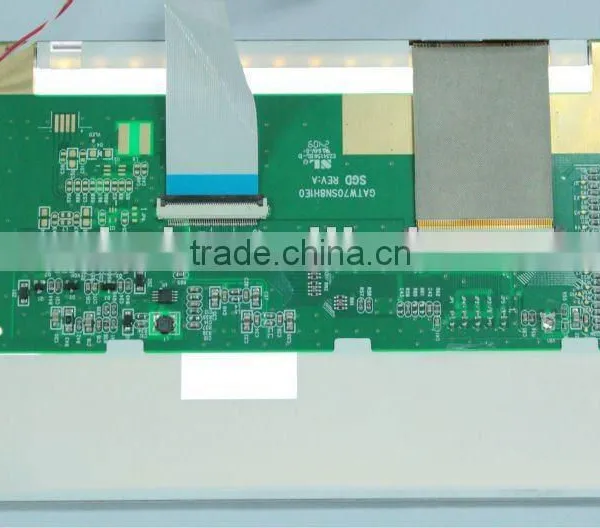

| Driving board : | T-con board |
| Operating temp. : | -20 - +70 degree |
| Storage temp. : | -30 - +80 degree |
3. Electrical Specifications

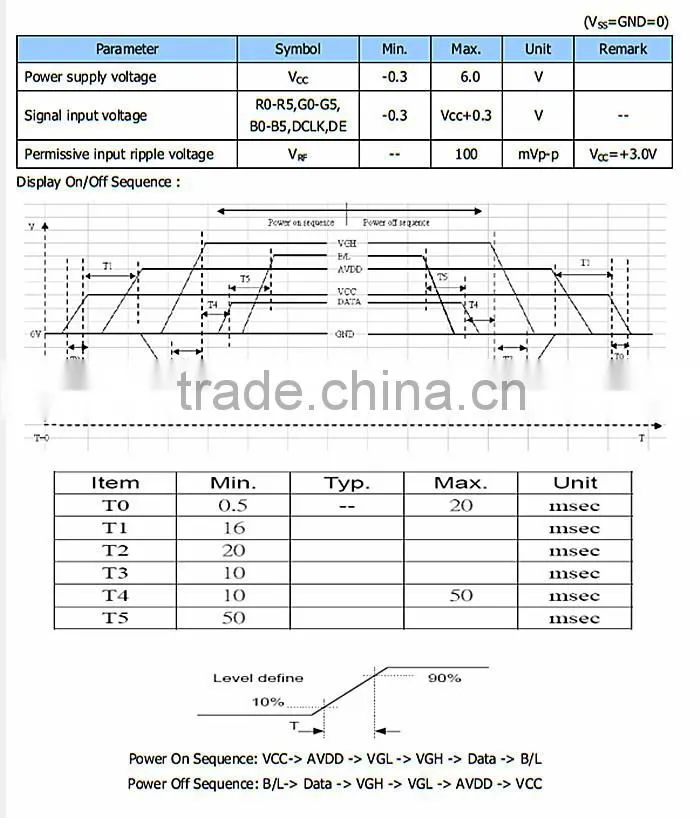

4. Electrical Absolute Maximum Ratings

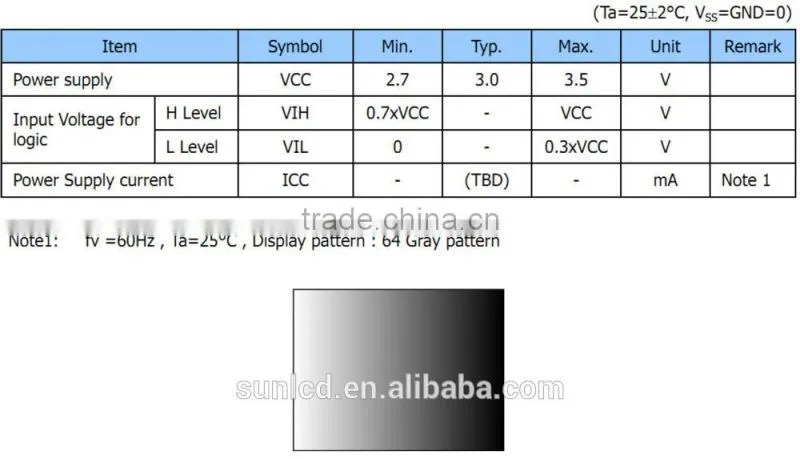

5. DC Electrical Characteristics of the TFT LCD

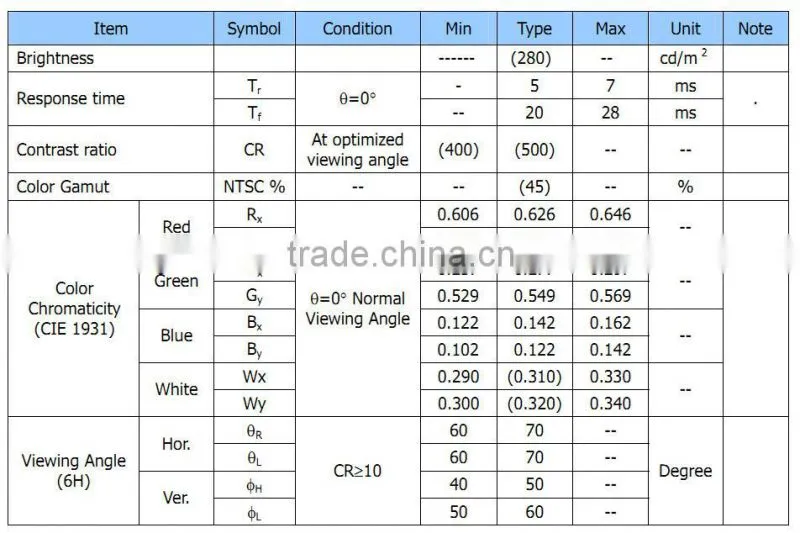

6. Optical Characteristics
The following items are measured under stable conditions. The optical characteristics should be measured
in a dark room or equivalent state with the methods.
Measuring equipment: BM-7A
Other advantages:
*Rock Bottom Price:
Free tooling charge!!
Volume production, volume stock, Favorable discount, rock bottom price!
*High Quality:
Strict quality control, excellent quality, RoHS compliant!
*Fast Shipment;
We have stock of 8x2 character LCD modules; Fast shipment is possible, shipment after payment!
*Superior Manufacturing Capability:
1KKpcs manufacturing capability, big volume order is acceptable!!
*OEM/ODM service is available!
Professional technical team enhances our strength of OEM/ODM service! More than 100 new design products annual!!
*Best After-sales Service:
Customers' satisfaction is our pursue goals. Best after-sales services are what we are always doing now!
Enjoy your cooperation with our company-----Shenzhen Sunfly Technology Co., Ltd; we are ready to be your long term and reliable LCD supplier in coming future!
Further more please visit our website: ,and contact us freely.
