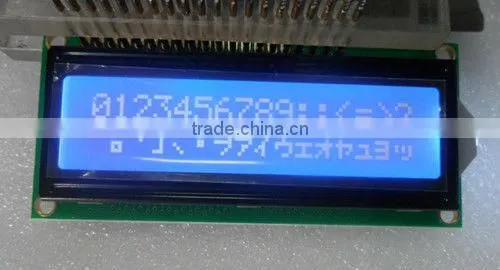

16*2 Lcd Module White on Blue 16x2 Lcd Module

Name: 16*2 Lcd Module White on Blue 16x2 Lcd Module
Brand: sunfly
SKU: 126257137

US$ 0.01 - 0.02 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

sunfly

Model Number:

YXM160201C

Shenzhen Sunfly Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong SAR

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name sunfly

Model Number YXM160201C

Type Character

16*2 lcd module White on Blue 16x2 lcd module

Item	Standard Value
Display Type	16Characters X 2 Lines
LCD Type	STN,NEGATIVE(BLUE),TRANSMISSIVE
Driver Condition	LCD Module : 1/16Duty , 1/5Bias
Viewing Direction	6 O’clock
Backlight Type	SIDE WHITE, I=20mA
Interface	8-Bit MPU Interface
Driver IC	SPLC780D
Item	Standard Value				Unit
Outline Dimension	80(L) * 36(W) * 11(T)				mm
Viewing Area	64.3(L) * 14.6( W)				mm
Dot size	0.56(W) ´ 0.61(H)				mm
Dot pitch	2.96(W) ´ 5.16(H)				mm
Item	Symbol	Condition	Min.	Max.	Unit
System Power Supply Voltage	VDD=5.0	-	-0.3	5.5	V
LCD Driver Supply Voltage	VLCD	-	VDD-12	VDD-0.3	V
Input Voltage	VIN	-	-0.3	VDD + 0.3	V

Pin Function

Other main products: Graphic lcd Module, Character lcd Module, Custom lcd Module, TFT lcd Module;

Factory

woker

Company introduction

Established date	2001.4 SHENZHEN SUNFLY TECHNOLOGY CO.,LTD.
Productivity	5KK pieces per month
Certificate	ISO14001:2004; ISO9001:2008, ROHS, REACH
Market industry	Auto electronics, Meters & Instrument Telecommunication Domestic Electrical Appliance Fuel dispensers Office equipment Medical & health equipment 3D & Shutter
Famous Customer	STAR, Emerson, Samsung, Panasonic, ABB
Commitment	First-class quality, high-quality service, reasonable prices and timely delivery
