China supplier 128x64 FSTN transmissive lcd screen flexible lcd display
USD $0.01 - $0.5
/ Piece
10 Pieces(Min.Order)
- 5000 Piece / Pieces per Month
- HK port
You May Like
-
negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
-
digital fire alarm installation module display, HTN segment display with blue led lcd panel
-
negative autoreclose circuit-breaker lcd display, segment module with blue led
-
charger negative character lcd display,white led ,battery segment small flexible display
-
character small charger lcd display ,custom battery display ,white led
-
segment positive temperature time clock lcd display,blue TN white backlight
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Sunfly | Model Number: | YXE1286419A |
| Type: | Graphic |
Product Description

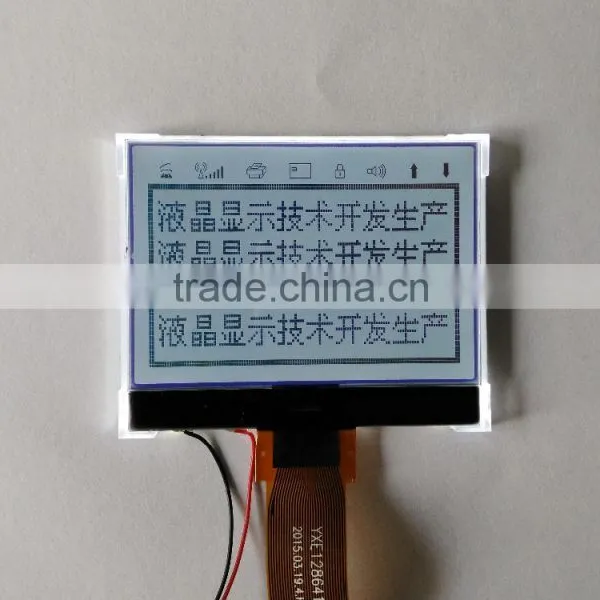

128*64 dots FSTN Transmissive lcd screen flexible lcd display
General Description
* Description
--This specification covers the delivery requirements for the liquid crystal display
delivered by SUNFLY TECHNOLOGY to Customer
-- Liquid Crystal Display Module (LCM)
-- MODULE NAMEL: YXE1286419A
Main Parameters
| General Information Specification | Specification(Main Panel) | Unit |
| Display Type | 128*64 DOTS | - |
| LCD Type | FSTN, Transmissive,Positive,Extened TEMP | - |
| Drive Pattern | 1/65Duty, 1/9Bias | - |
| Viewing Direction | 6 O’clock | - |
| Backlight Type | WHITE EDGE LED BL | - |
| Weight | TBD | - |
| Interface | Parallel Interface | - |
| Driver IC | ST7565R OR EQUIVALENT | - |
| MODULE DIMENSION | 72.0(W) X58.0(H) X5.5(T) | mm |
| EFFECTIVE DISPLAY AREA | 60.13(W) X35.17(H) | mm |
| DOT SIZE | 0.44(W) X 0.52(H) | mm |
| DOT PITCH | 0.47(W) X 0.55(H) | mm |
1.77 inch tft 128x160 MCU interface TFT lcd display
Other main products: Graphic lcd Module, Character lcd Module, Custom lcd Module, TFT lcd Module;
