Home > Consumer Electronics > Display & Accessories > LCD Module > 4002 Lcd 40x2 LCD Character Display

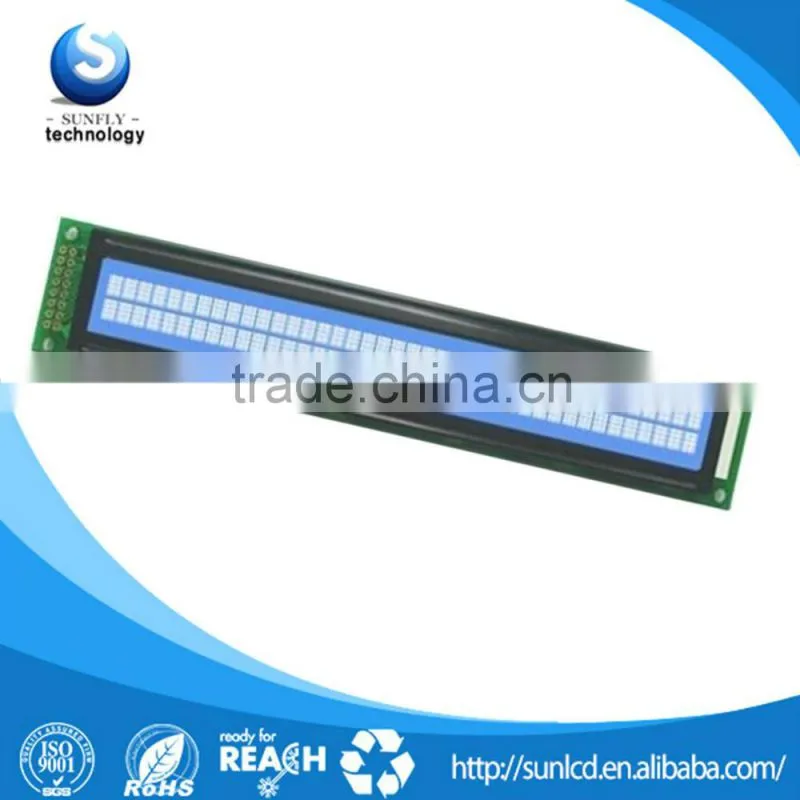

4002 Lcd 40x2 LCD Character Display
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
sunfly
Model Number:
YXM4002
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKongSAR
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rohs Lcd 8x2 LCD Module Blue Character 8x2 Lcd Display ModuleUS$ 0.1 - 1.5MOQ: 1 Piece -
Customed 0801 Lcd Module Character 8x1 LCDUS$ 0.1 - 1MOQ: 1 Piece
-
Small Lcd 16x2 ST7066 Blue Character 16x2 Lcd Display ModuleUS$ 0.1 - 0.2MOQ: 1 Piece
-
1602 Hot Selling 16x2 Big Character LcdUS$ 0.01 - 0.02MOQ: 1 Piece
-
16 x 2 LCD Display Modul HD44780NegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
sunfly
Model Number
YXM4002
Type
Character
4002 lcd 40x2 LCD Character display
| Connection | Pin Header |
|---|---|
| Display Format | 40x2 Character |
| Sunlight Readable | Yes |
| LCD type | Blue back ground White Characters |

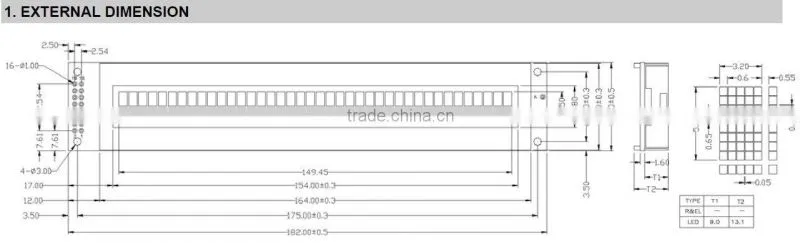

| Outline Dimension | 182.00(W)x33.5(H)x13.6(T)mm |
| Visual Area | 152.30x16.70mm |
| Active Area | 147.50(W)x11.50(H)mm |
| Character Size | 3.20x5.55mm |
| Diagonal Size | No |
| Dot (Pixel) Size | 0.60x0.65mm |
| Dot Pitch | 0.65x0.70mm |
| IC Package | COB |
| IC or Equivalent | AIP31066 , HD44780, KS0066 , SPLC780 , ST7066 |

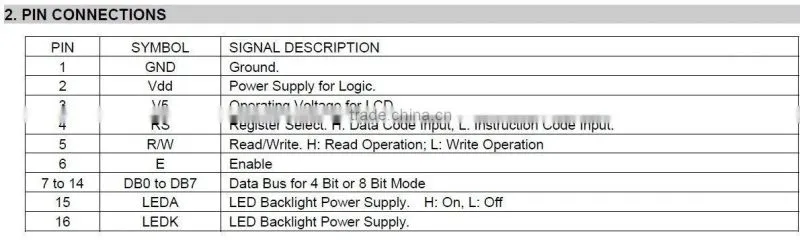

| Interface | 6800 4-bit Parallel , 6800 8-bit Parallel |
| Display Type | STN-LCD Blue negative |
| Colors | No |
| Viewing Direction | 6:00 |
| Viewing Angle Range | No |
| Appearance | Dark Blue |
| Brightness(Typ) | No |
| Backlight Color | white Color |
| Backlight Current (Typ) | 30mA |
| Power Supply(Typ) | 5V |
| Supply Current for LCM(Max) | 2200uA |
| Operating Temp | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
Other main products: Graphic lcd Module, Character lcd Module, Custom lcd Module, TFT lcd Module;
