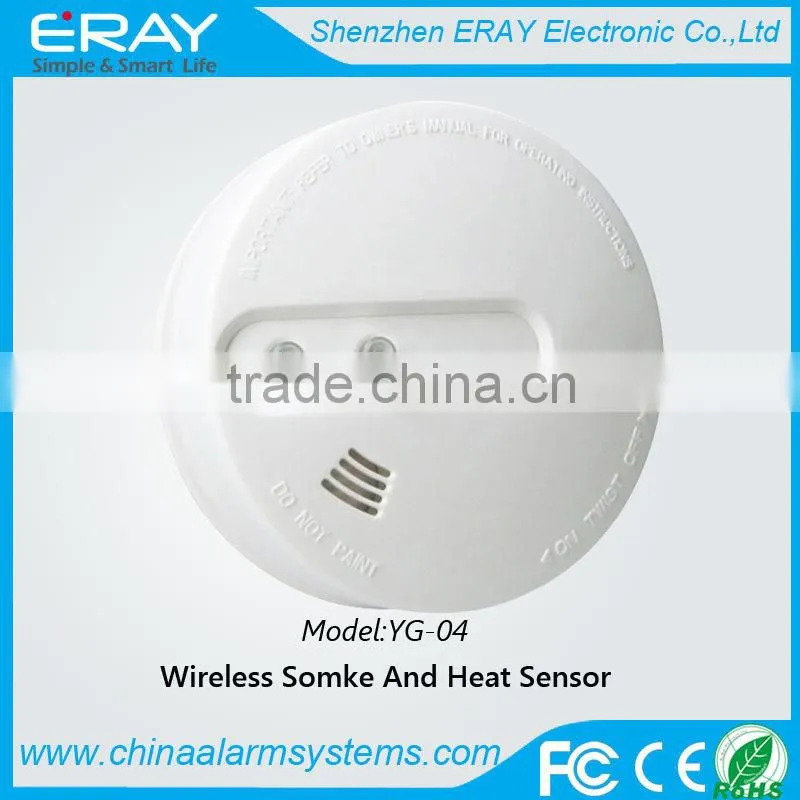

Help CenterHOT!!! HOT!!! New and Hot Wireless Smoke and Heat Sensor System Smoke Detector En14604(YG-04)
Related Products
-
ERAY Wireless Smoke and Thermal Heat Sensor for Fire Alarm System(YG-04)US$ 1 - 12MOQ: 1 Piece -
HOT!!!infrared Beam Barrier Detector Infrared Beams Detector for Alarm HostUS$ 1 - 50MOQ: 1 Piece
-
Carbon Monoxide Alarm Battery-operated Carbon Monoxide Detector CO SensorUS$ 1 - 18.66MOQ: 5 Pieces
-
NEW Wireless Home Security Smoke Detector Fire Alarm Sensor For GSM Alarm YG-01AUS$ 1 - 5MOQ: 10 Pieces
-
Wireless Multifunctional Doorbell Transmitter Remote Control Push ButtonUS$ 1 - 15MOQ: 10 Pieces
Specifications
1. Infrared photoelectric sensor
2. adopts MCU to analyze smoke and heat
3.Sound & flash alarm/LED indicator
wireless somke heat detector with 433/315MHZ
Main produce:

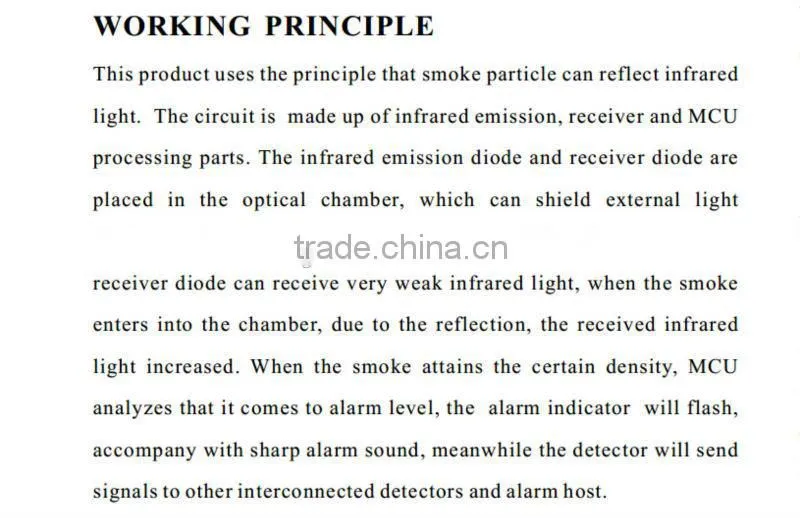

A: smoke detector motion sensor is a wireless photoelectric smoke detector(hereinafter called detector). It uses special structure design and adopts MCU to analyze the photoelectric signal intelligently, with functions of dustproof, mouth proof, anti-interference, etc. Therefore ensure the stability from designing.
Meanwhile it has wireless network function for a variety of environmental needs, improved user's perception of alarm signal.
B: Smoke detector motion sensor has good reaction on visible smoke caused by slow smoldering or burning. It is suitable for fire protection in residential houses, factories, shopping centers, hotels, office buildings, school buildings, banks, libraries and warehouses, etc.
Functions & Features:
- Adopt MCU auto-processing technology, stability improved
- Wireless network function
- Hush function
- Fault auto-checking function
- Auto reset
- Infrared photoelectric sensor
- Sound & flash alarm/LED indicator
- SMT manufacture technology adopted, high stability
- Dustproof, mothproof, anti-light interference design
- Anti-RF interference(20V/m-1GHZ)
Technical specifications:
Operating voltage:a. AC 220V or AC 110V(9V back-up battery)
b. 9V battery(A 6F22 battery)
Static current: < 25uA(Average value)
Alarm current: < 35mA
Battery life: Lithium battery with lifetime 1 year
Alarm indicator: red LED flash
Sound level: >> 85db/3m
Wireless receive/send RF: 315/433MHZ
Coding type: 2262
Sending distance: 200m(in the open area)
Working temperature: -10 degree ~ +50 degree
Environmental humidity: << 95% RH
Dimension: 128*38mm
Execute criterion: GB4715-2005; EN14606; UL217
Detecting area: 80 square meters when the horizontal height is 6m to 12m, 60 square meters when horizontal height is below 6m. The accurate parameters please refer to fire auto-alarm system design standard GB50116-98
smoke detector motion sensor

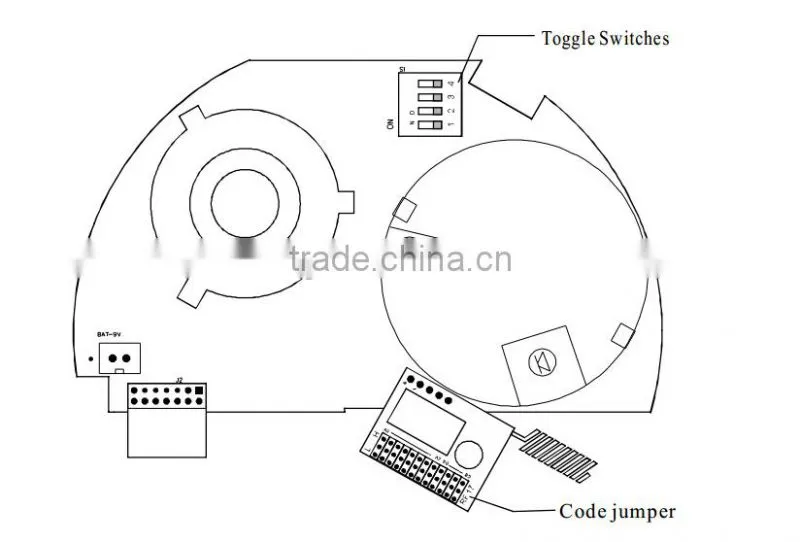

Code set diagram
Notice:
- smoke detector motion sensor's fault auto-check function only refers to the fault check of infrared photoelectric sensor failure and battery lower power, the sensitivity of sensor still need to be tested according to requirements.
- Please clean the surface of detector by soft brush per six moths to ensure the sensitivity and life of product, and please switch off power before clean.
- If there is product failure in use, please contact with the supplier but do not dismantle or repair by yourself, to avoid accident.
- If you don't use it for long time, please discharge the detector, take out the battery and put them into the packing box, and store in dry and ventilate place.
-
The detector can decrease the rate of the accident but can not assure no risk at all. For safety concern, besides proper usage of the detector, please enhance vigilance in daily life and take good protection.
