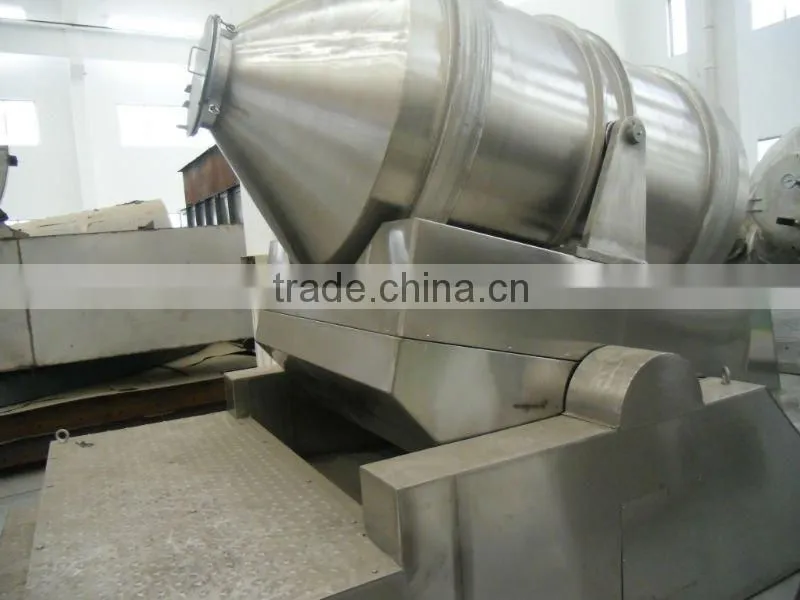

EYH Two-direction Movement Mixer
US$ 3,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Application:
Powder
Place of Origin:
Jiangsu, China
Brand Name:
Lemar
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WH Double Screw Conical MixerUS$ 2,000 - 20,000MOQ: 1 Set -
GHL High Speed Mixing GranulatorUS$ 100 - 500MOQ: 1 Set
-
GHL Wet Mixing & GranulatorUS$ 100 - 500MOQ: 1 Set
-
High Shear Mixer and GranulatorUS$ 100 - 500MOQ: 1 Set
-
GMP Pharmaceutical High Speed Mixing GranulatorUS$ 100 - 500MOQ: 1 Set
Application
Powder
Place of Origin
Jiangsu, China
Brand Name
Lemar
Model Number
SYH
Specifications
The mixing barrel moves in two-directions. Description of EYH Two-direction movement mixer
1.This machine is widely applied in pharmacy, chemical industry, food industry dyeing industry, fertilizer industry and pesticide industry, especially suitable for mixing large-tonnage (1000L - 10000L) solid materials.
2.The mixing barrel swings while rotates so that the materials in the barrel can be fully mixed.Because the discharge port of the barrel is out of the barrel centre line, the mixer features quick mixing and discharging, as well as high volume mixing capacity.
parameters of two-direction movement mixer:

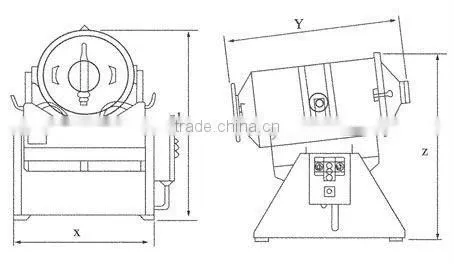

| model | Barrel volume(L) | Loading capacity(L) | Max loading weight(kg/batch) | No. of swing rotation r/min | Total motor power(kw) | Overall dimension X×Y×Z×Z1(mm) | Total weight(kg) | Barrel weight (kg) |
| EYH-10 | 10 | 5 | 2.5 | 85 | 0.021 | 310×400 ×450×395 |
15 | 4 |
| EYH-30 | 30 | 15 | 7.5 | 61 | 0.19 | 540×580 ×900×700 |
60 | 8.5 |
| EYH-60 | 60 | 30 | 15 | 50 | 0.4 | 700×730 ×1100×990 |
115 | 15 |
| EYH-150 | 150 | 75 | 37.5 | 37 | 1.15 | 800×1050 ×1450×1340 |
190 | 50 |
| EYH-300 | 300 | 150 | 75 | 30 | 1.15 | 900×1350 ×1550×1400 |
340 | 60 |
| EYH-600 | 600 | 300 | 150 | 23.6 | 3 | 1170×1640 ×2050×1910 |
1150 | 140 |
| EYH-800 | 800 | 400 | 200 | 19.8 | 3 | 1320×1950 ×2150×2000 |
1600 | 200 |
| EYH-1000 | 1000 | 500 | 250 | 19.8 | 3 | 1360×2040 ×2300×2170 |
1700 | 240 |
| EYH-1500 | 1500 | 750 | 375 | 16.2 | 4.4 | 1580×2400 ×2550×2330 |
2000 | 320 |
| EYH-2000 | 2000 | 1000 | 500 | 16.2 | 7.4 | 1740×2600 ×2770×2550 |
2600 | 430 |
| EYH-3000 | 3000 | 1500 | 750 | 13.8 | 11 | 1800×2900 ×2950×2800 |
3500 | 620 |
| EYH-4000 | 4000 | 2000 | 1000 | 12.8 | 13 | 1970×3300 ×3300×2950 |
4100 | 700 |
| EYH-6000 | 6000 | 3000 | 1500 | 11.2 | 18.5 | 2300×2900 ×3800×3100 |
6100 | 1100 |
| EYH-8000 | 8000 | 4000 | 2000 | 10.4 | 22 | 2540×4100 ×4050×3650 |
7900 | 1450 |
| EYH-10000 | 10000 | 5000 | 2500 | 9 | 30 | 2900×4500 ×4400×4020 |
9500 | 1650 |
