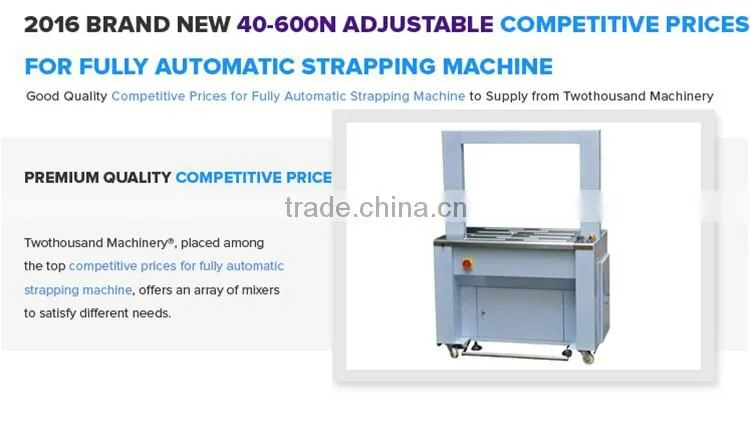

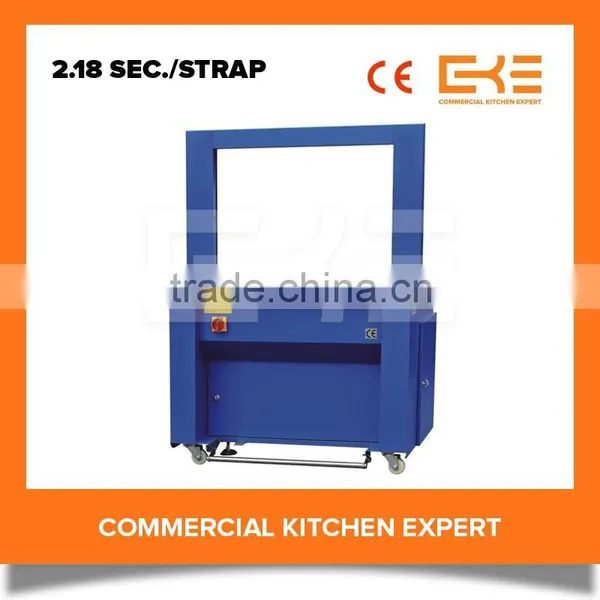

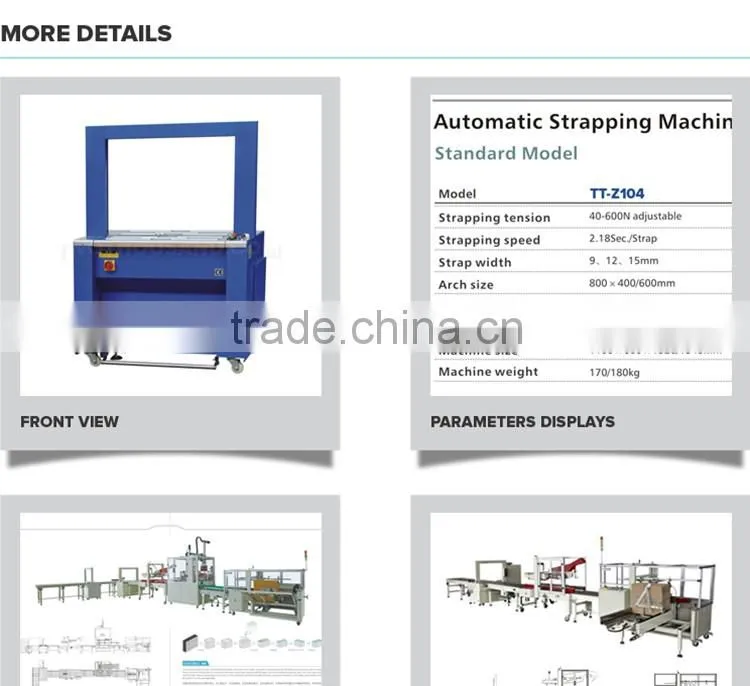

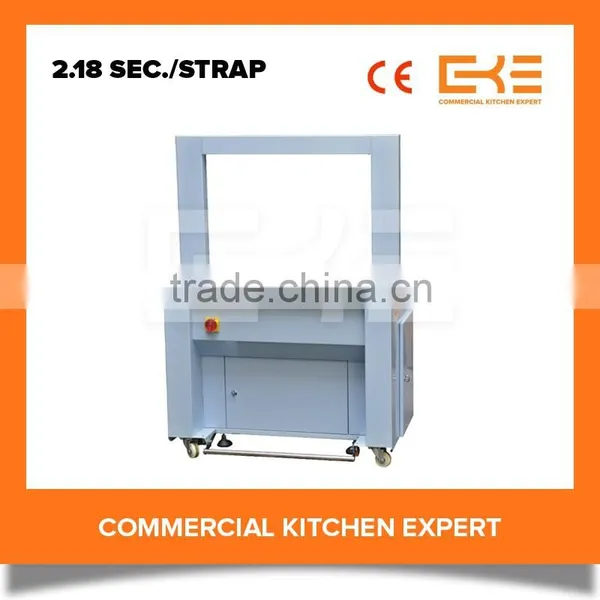

Automatic Strapping Machine (CE Approval) TT-Z104 is Made in Twothousand Machinery Co., Ltd.
Model: TT-Z104
Strapping tension: 40-600N adjustable
Strapping speed: 2.18Sec./Strap
Strap width: 9,12,15mm
Arch size: 800*600mm
Power supply: 380V/50-60Hz
Power consumption: 0.5KVA
Machine size: 1100*600*1540mm
Machine weight: 180kg
>> Feature
1. Rapid speed: 2.0sec/per cycle,30cycles/per min
2. Easy Maintenance: No Greasing, Mechanism is stable and durable, Easy operation
3. Tension Adjustment: Can be adjustable at well, Max. Tension is over 90kgs
4. Precision Structure: Main machine’s component is made of aluminum alloy, Control System is compatible
5. Add on a safety device, built for 24 hrs continuous operation
6. Easy loading or unloading: To load or unload the strapping roll is convenient due to the dispenser is placed outside
7. Extensive applications: can be independent operation or combine with other machines for unmanned
8. Electric appliance adopted: “MITSUBISHI” PLC control, and “ORMON” photoelectric switch control
9. Optional: any arch size
>> Technical Data
| Semi-Automatic Type | Automatic Type | |
| Model | TT-Z103 | TT-Z104 |
| Strapping tension | 40-600N adjustable | 40-600N adjustable |
| Strapping speed | 2.0 Sec./Strap | 2.18 Sec./Strap |
| Strap width | 8-19mm | 9,12,15mm |
| Arch size | 800*600mm | 800*600mm |
| Machine size | 1410*600*1540mm | 1100*600*1540mm |
| Weight | 250kg | 180kg |
| Voltage | 380V / 220V | 380V / 220V |
