Industrial Dish Washing Machine - 3000 PCS/HOUR, 2x100 L Clean Tank, TT-K138
is Made in Twothousand Machinery Co., Ltd.

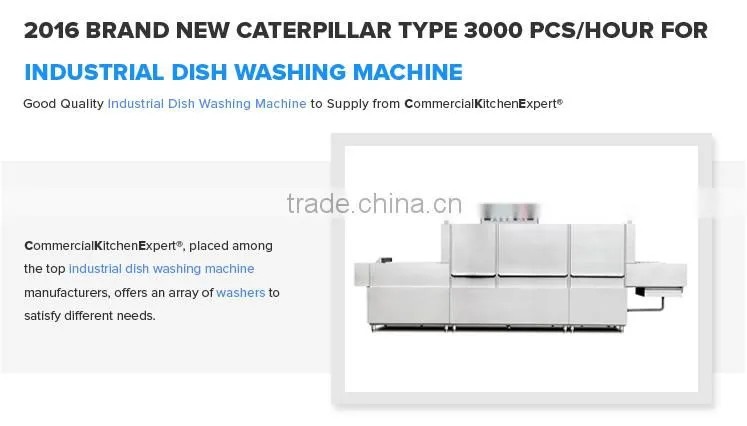

CATERPILLAR TYPE DISHWASHER
DOUBLE CYLINDER, DOUBLE SPRAY
Model: TT-K138
Capacity: 3000 PCS/HOUR
Clean Tank Capacity: 100Lx2
High Temperature Rinse Capacity: 50 L

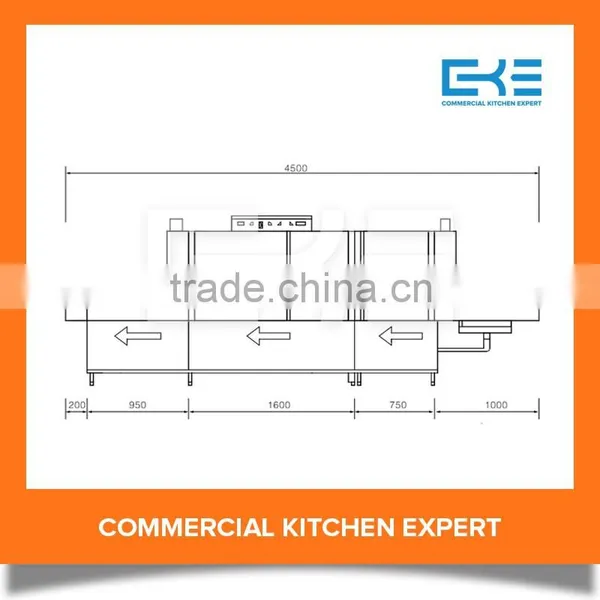

Size: 4500x870x1600 MM
Clean Tank Power: 9 KW
High Temperature Rinse Power: 54 KW
Total Power: 66 KW
Voltage: 380V/50HZ/5N
Washing Height: 350 MM
Max. Water Consumption: 350~450 L/Hour
Input Water Pressure: 0.15~0.30 MPA
SIZE CAN BE CUSTOMIZED
>> Main Applications: Restaurant Chain, Hotel, Dinner Room of Enterprise and Factory, Coffee Shop Etc.
>> Features
1. The Conveying Speed of Caterpillar can be adjustbale according to Customers' need.
2. Optical Ways of Heating, for instance, electric heating, it can also be transformed into other ways of heating,
such as steam, boiler water, which is more considerate and convenient.
3. Safe and Reliable, when the dishwasher is under operation, the pump and the driving motor will automatically
close once gate is opened accidentally to prevent hot water from spilling.
4. High Quality Temperature Control Function, guarantee the rinse water temperature is above 86 degrees,
achieve the best effect of disinfection.
5. Adopt Recycling Water, it to run the first washing step, save the water volume, environmental protection and
energy saving.
>> Technical Data
| MODEL | TT-K136 | TT-K137 | TT-K138 | TT-K140 |
| DISH WASHER TYPE | TUNNEL TYPE | TUNNEL TYPE | CATERPILLAR TYPE | CATERPILLAR TYPE |
| CAPACITY | 250 BASKETS/HOUR | 186 BASKETS/HOUR | 3000 PCS/HOUR | 3000 PCS/HOUR |
| SIZE | 2190x780x1600 MM | 2500x780x1920 MM | 4500x870x1600 MM | 6500x870x1920 MM |
| CLEAN TANK CAPACITY | 2X140 L | 98 L | 2X100 L | 2X100 L |
| HIGH TEMP RINSE TANK CAPACITY | 30 L | 30 L | 50 L | 50 L |
| TOTAL POWER | 42 KW | 48.5 KW | 66 KW | 90 KW |
| FEATURE | / | WITH SINGLE DRYER | / | WITH DOUBLE DRYERS |
