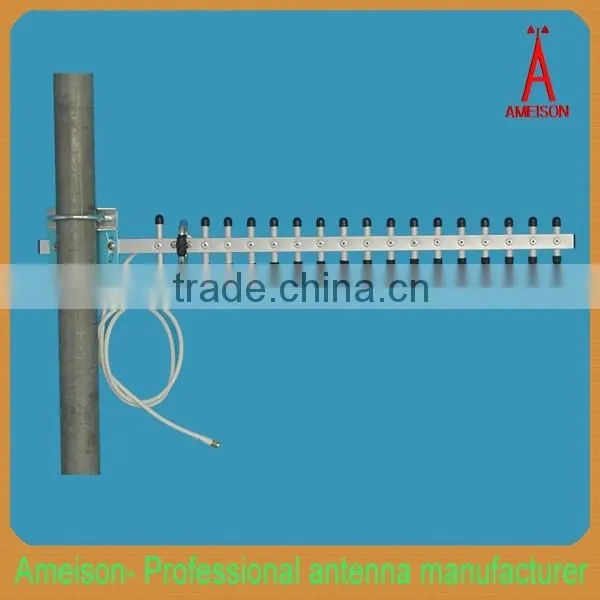

AMEISON 18 dBi 18 Elements 2400-2483MHz Directional Yagi high gain wifi antenna

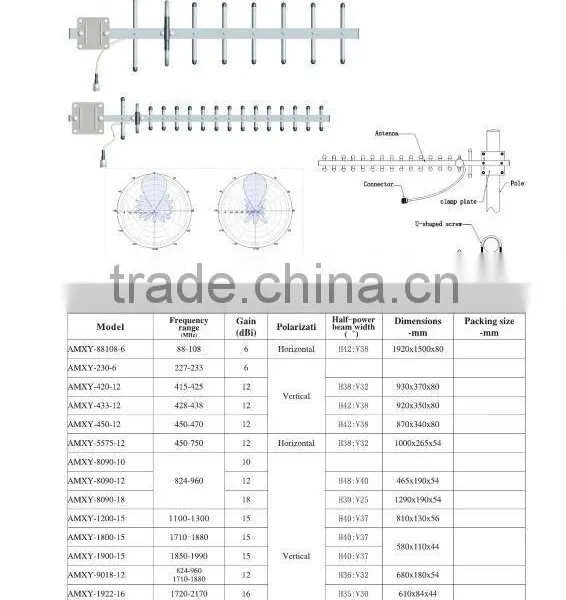

AMXY-2400-18
Feature:
High gain
Aluminum alloy framework
Full day working
Optimized dimension
Mounting way can be Vertical or Horizontal

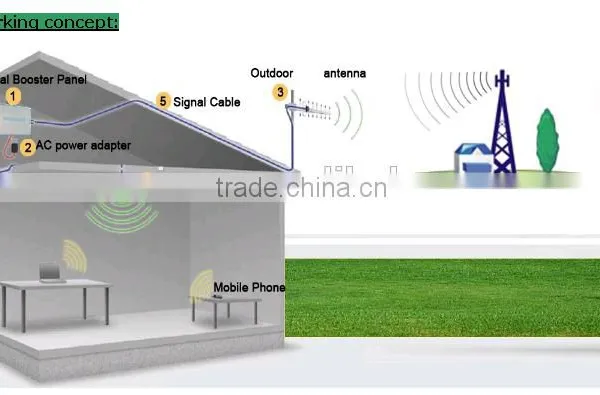

Application:
2.4 GHz WLAN system
Point-to-point, point-to-multipoint system
Wireless bridging, client termination antenna
|
AMXY-2400-18 Electrical Specifications | |
Frequency range(MHz) |
2400-2483 |
Bandwidth(MHz) |
83 |
Gain(dBi) |
18 |
Element |
18 |
Half-power beam width(°) |
H:30 V:28 |
Front-to-back ratio(dB) |
≥16 |
VSWR |
≤1.5 |
Input Impedance(Ω) |
50 |
Polarization |
Horizontal or Vertical |
Maximum input power(W) |
100 |
Lightning protection |
DC Ground |
Input connector type |
RP-SMA male or others |
Mechanical Specifications | |
Dimensions(mm) |
580*70*44 |
Cable length(m) |
1 |
Antenna weight(kg) |
0.35 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |

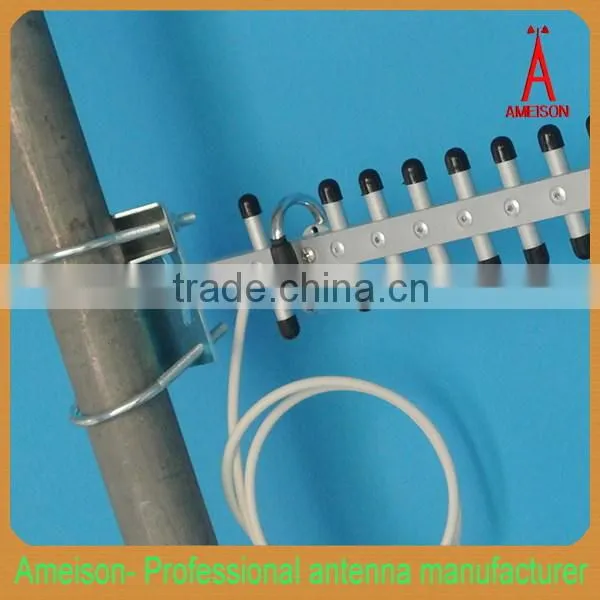

Clamp |
U-shape |
Mounting hardware(mm) |
Φ35 ~ Φ50 |
