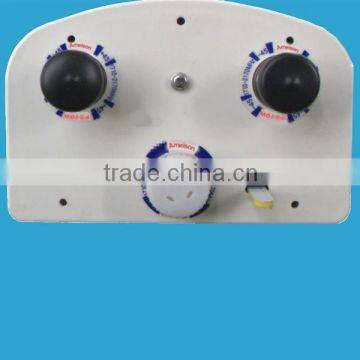

AMEISON 790-2690MHz Penta-band Remote Electrical Downtilt(RET) Panel adjustable electrical downtilt antenna
Model No.:AMET-0709/1727DX6515/17-DT0
Electrical Specifications | |||||
Frequency Range(MHz) | 790~880 | 870~960 | 1710~2170 | 2330~2500 | 2500~2690 |
Polarization | ±45° | ±45° | ±45° | ±45° | ±45° |
Gain (dBi) | 14.5 | 14.5 | 16.5 | 16.8 | 17 |
Electrical downtily(°) | 0 | 0 | 0 | 0 | 0 |
Half-power beam w idth (°) | Hor:65 | Hor:65 | Hor:65 | Hor:65 | Hor:65 |
Cross polarization discrimination (dB) | ≥15(@0°) | ≥15(@0°) | |||
Maximum Input Power (w) | 250 | 100 | |||
VSWR | <1.5 | ||||
(First sidelobe above horizon) Sidelobe suppression(dB) | ≥16 | ||||
Isolation (dB) | >28 | ||||
Front - to - back Ratio (dB) | >25 | ||||
Impedance (Ohm) | 50 | ||||
Intermodulation IM3(dBm) | <-107 | ||||
Lightning Protection | Direct Ground | ||||
Mechanical Specifications | |||||
Connector type | 2X7/16 DIN female | ||||
Connector position | Bottom | ||||
Antenna size (mm) | 1400X280X120 | ||||
Packing size (mm) | 1770X320X200 | ||||
Antenna weight (Kg) | 15.5 | ||||
Packing weight (Kg) | 22 | ||||
Wind loading area (m²) | 0.42 | ||||
Rated wind speed (m/s) | 60 | ||||
Radome material | UPVC | ||||
Mechanical tilt (º) | 0-10° | ||||
Operating temperature (ºC) | -40~+60 | ||||
Mounting hardware (mm) | ¢50~¢115 | ||||
