AMEISON 824 - 2690MHz Integrated Square-Column Shape Water-Tank Camouflage lte combination antenna
- 80000 Piece / Pieces per Month
- Shenzhen or HongKong
- T/T Credit Card PayPal
You May Like
-
AMEISON 820 - 960MHz Integrated Square-Column Shape CDMA/GSM water tank camouflage antenna
-
AMEISON 820-2690MHz Integrated Air-conditioner Camouflage lte 4g antenna
-
AMEISON 1710-2690MHz Integrated Air-conditioner Camouflage 3g 4g outdoor antenna
-
AMEISON 820-960MHz outdoor gsm Integrated Air-conditioner Camouflage Antenna
-
AMEISON 1710-2690MHz Integrated Square-Column Shape Camouflage 4g lte outdoor antenna
-
AMEISON 824-2690MHz Integrated Square-Column Shape camouflaged antenna
Product Details
Place of Origin | Guangdong, China | Brand Name | AMEISON | |
Model Number | AMCF-08091727X651517-DE14E8 |
bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Product Description

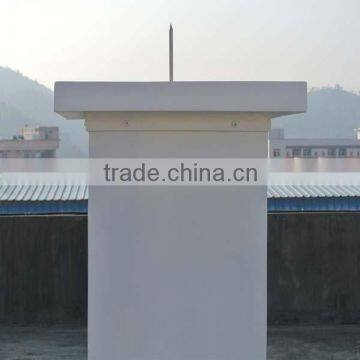

AMEISON 824 - 2690MHz Integrated Square-Column Shape Water-Tank Camouflage lte combination antenna
AMCF-0809/1727X6515/17-DE14/E8
Application:
CDMA/GSM/DCS/PCS/PHS/3G/WLAN/4G LTE system
Wireless communication and Datatransmission system
AMCF-0809/1727X6515/17-DE14/E8 Electrical Specifications | |||||
Frequency range(MHz) | 820-880 | 870-960 | 1710-1880 | 1920-2170 | 2490-2690 |
Polarization | ±45 | ||||
Gain(dBi) | 14.5 | 14.5 | 16.5 | 16.8 | 17 |
half-power beam width(°) | Hor:65 Vor:16 | Hor:65 Vor:15 | Hor:68 Vor:8 | Hor:65 Vor:7.7 | Hor:62 Vor:7.3 |
Electrical downtilt(°) | 0~14 | 0~8 | |||
Front-to-back ratio(dB) | ≥25 | ||||
Input Impedance(Ω) | 50 | ||||
VSWR | ≤1.5 | ||||
Intermodulation IM3(dBm) | ≤ -107 | ||||
Isolation between ports | ≥28dB | ||||
Cross-polar ratio | ≥15dB@0º ≥10dB@+/-60º | ||||
Sidelobe suppression for first sidelobe above horizon | ≥16 dB | ||||
Maximum input power(W) | 250 | 100 | |||
Lightning protection | DC Ground | ||||
Mechanical Specifications | |||||
Input connector type | 2×7/16DIN female | ||||
Connector position | Bottom | ||||
included antenna quantity | 1 | ||||
Horizontal variable-angle range | ±45°(manual) | ||||
Dimensions-mm (mm) | 400×400×2000 | ||||
Antenna weight (Kg) | 39 | ||||
Radome material | FRP | ||||
Radome Finish | baking | ||||
Radome anti-aging | >10 years | ||||
Radome flame rating | GB8624-1997 standard(fire retardant first grade) | ||||
acid-alkali resistance | Non-obvious color fading within 2 yrs | ||||
UV-proof | Antifade within 1 yrs | ||||
Operating temperature(°c) | -40~60 | ||||
Rated Wind Velocity(m/s) | 60 | ||||
Relative humidity | 8%~98% | ||||
Ice thickness | 10mm not destroyed | ||||
Atmos | 70~106kpa | ||||
Protection grade | IP55 | ||||

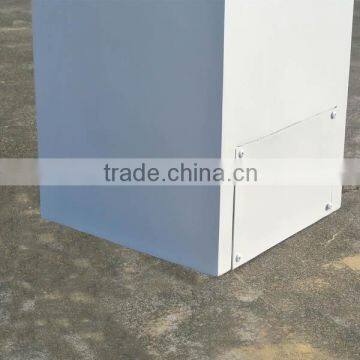

maintenance | bottom maintenance entrance | ||||

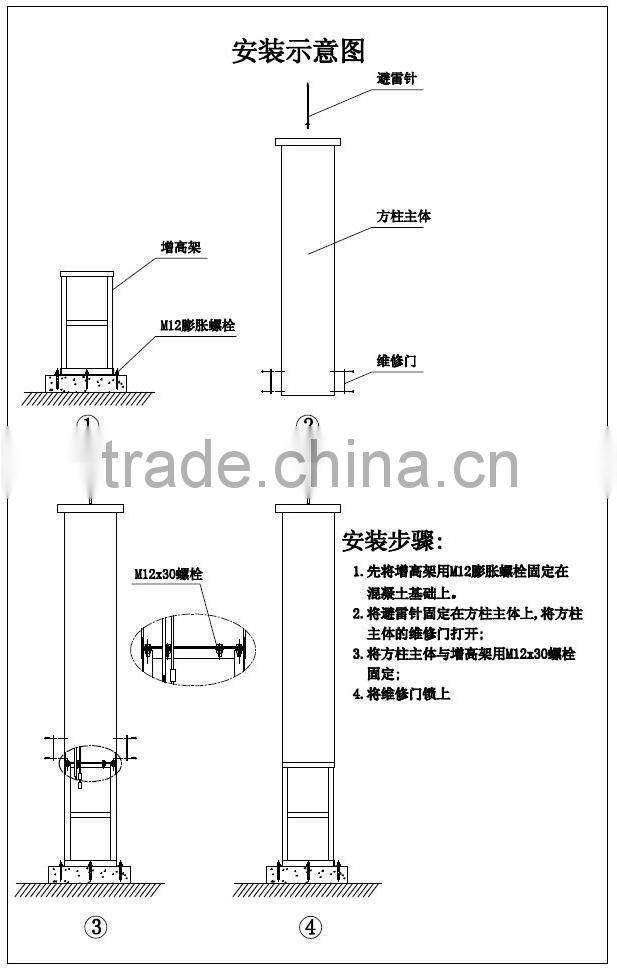

Mounting | floors base with anchoring | ||||
Other requirements | anti-rust and corrosionproperties |
Antenna camouflage
With the development of mobile communication, and the national building construction "ecological city" target ,in order to fulfill the increasing demand of the perfect coordination among the three-BTS, antenna, and environment, we urgently put forward the beautification antenna construction scheme.
The so-called " antenna beautification" can be called " hidden antenna" or camouflage antenna", which means to hide and decorate the antenna by various methods without a transmission loss, to beautify the antenna ,to please people's eyes in public areas, to release people’s fear of radio electromagnetic environment, to ensure the good communication quality.
Ameison promises all our issued products pictures on the internet are shot by our professional photographers, and these are real existence, NO duplication/ stolen figures/ infringement of intellectual property rights/ PS technical means etc.
The ownership of pictures and tests are owned by Ameison, if without permission and usurp unauthorized, Ameison will pursue legal liabilities according to laws and regulations and ask for economic compensation.
Due to there appears technical data is unreal even fake on the market, Ameison always sticks to the facts but not tell stories, all our technical specifications are real and tested by ourselves, welcome to request our related test reports and samples for compared and distinguishing the true from the false.
Genuine Quality Assured
It’s Your Excellent Choice High Quality Products.
Ameison is TOP2 professional communication and wireless antennas industry manufacturer enterprise in Shenzhen, we hope to establish long-term business relationship with you.
More items want to know, please visit our official company website to request the catalog, we warmly welcome you to schedule a visit to our factory anytime.
