Specifications
2013 Ring Die Wood Pellet Making MachineGlobal Pellet Machine salesservices
Passed ISO9001:2008&CE

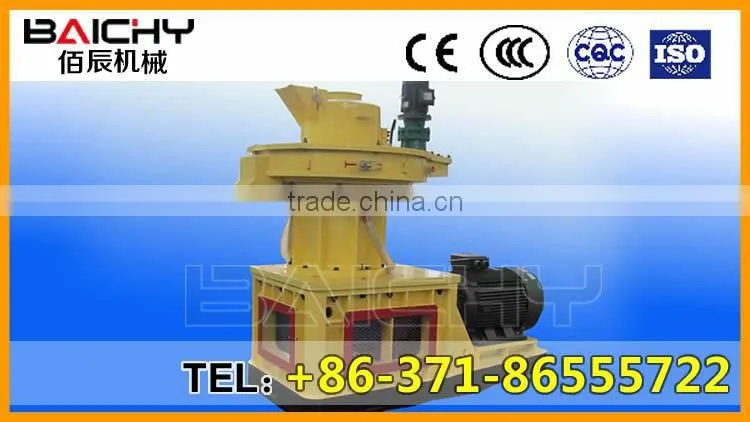

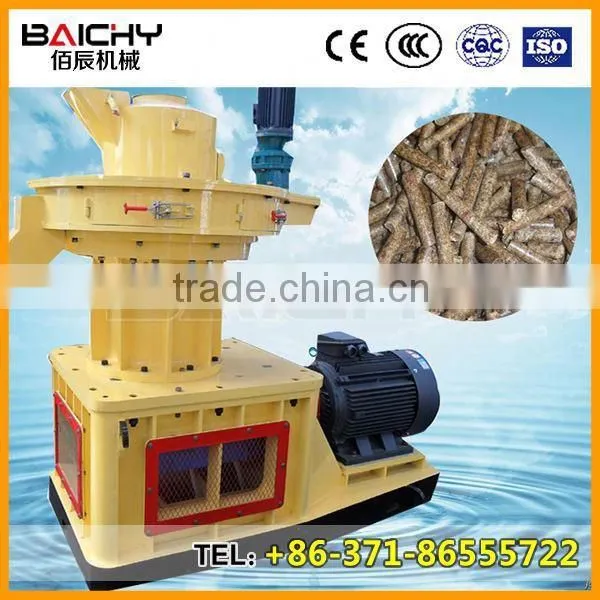

2013 Ring Die Wood Pellet Making Machine
1. Application fields of 2013 Ring Die Wood Pellet Making Machine
Baichy biomass energy solutions application includes: crop residues, wood and its processing residues, manure, municipal solid waste processing.
(1)Wood and wood processing residues Forest growth and forestry biomass energy production processes, including firewood in the forest tending and thinning operations in the fragmented wood, branches and sawdust and other residues; timber harvesting and processing of branches, sawdust, wood chips and skins, etc. ; forestry waste byproducts, such as the fruit shells and cores.
(2)Crop and crop processing residues Agricultural waste in the production process, such as crop straw harvest residues (corn stalks, sorghum stalks and straw, etc.); agro-industrial wastes, such as agricultural production process, the remaining rice husk.
(3)Animal manure Livestock excreta, it is the other converting forms of biomass (mainly grain, straw and forage crops, etc.) , including animal feces and their mixtures with bedding.
(4)Post-processing of municipal solid waste Municipal solid waste are garbage, food waste, etc
2.Design technology of 2013 Ring Die Wood Pellet Making Machine
(1)Wood pellet technology programs (forestry waste)
(2)Straw pelleting process (wheat straw, corn stalks, rice straw)
(3)Forage particles and briquetting process (barley, alfalfa grass, Pennisetum)
(4)Animal waste treatment process (chicken manure, pig manure)
(5)Waste treatment process scheme (MSW - fertilizer)
Main Technical Parameter of 2013 Ring Die Wood Pellet Making Machine
Model |
LGX-1600 |
LGX-900 |
LGX-750 |
LGX-550 |
LGX-450 |
|
|
Power (kw) |
Main power |
160 |
90 |
75 |
55 |
45 |
Output equipment |
2.2 |
1.5 |
1.5 |
Main shaft driving |
Main shaft driving |
|
Dry electric Pump |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
|
Weight( t ) |
12.2 |
6.8 |
5.6 |
3.6 |
2.9 |
|
Speed of shaft (r/min) |
1450 |
1450 |
1450 |
1450 |
1450 |
|
Volage (v) |
380,3phase |
380,3 |
380,3 |
380,3 |
380,3 |
|
Diameter of Die (mm) |
850 |
550 |
500 |
450 |
400 |
|
Specification size of pellet (mm) |
4-12 |
4-12 |
4-12 |
4-12 |
4-12 |
|
Pelleting temperature (°C) |
80-100 |
80-100 |
80-100 |
80-100 |
80-100 |
|
Moisture of material (%) |
15-25 |
15-25 |
15-25 |
15-25 |
15-25 |
|
Capacity(t/h) |
2-2.5 |
1.2-1.5 |
1-1.2 |
0.8 |
0.6 |
|
Spare parts of 2013 Ring Die Wood Pellet Making Machine :
Our engineer can design the detail professional 2013 Ring Die Wood Pellet Making Machine production line for u, please contact me at Baichy company with your detail request:
1. What kind of material u are dealing with?
2. How about raw material mositure and size?
3. Input capacity request?
4. Any special request depend on your side?
Here I am waiting for your kindly reply. Thanks.
Alanna.Liu
Baichy Machiney Equipment
