High Production Dust Collector Bag Fabric
1.Introduction of Dust Collector Bag Fabric
Baichy Dust Collector Bag Fabric is my company researchers for dedusting and dust collection of the crushing equipment , milling equipment researched and developed a highly efficient dust removal equipment. Dust Collector Bag Fabric advanced cleaning technology, substantial increase in air to cloth ratio,deal with large amount of wind, small footprint, high purification efficiency, reliable, simple structure and small amount of maintenance.Dust removal efficiency can reach above 99%, Baichy Dust Collector Bag Fabric is our sophisticated technology and efficient dust removal equipment.
2.Features of Dust Collector Bag Fabric
1. Self-powered cleaning to timely cycle to blow out dust completely
2. Thorough cleaning, low energy consumption, long life
3. Compartment for bags / unloading bags, no downtime
4. Improve operating conditions for bag replacement
5. The whole machine sealing performance is good
6. leakage rate is very low.
3.Technical data of Dust Collector Bag Fabric
| Model | Total filter area(m) | Filtering wind speed (m/min) | Input air (m³/h) | No. of filter bag (pc) | Specification (mm) | Air consumption (m³/h) | Density of inlet (g/m³) | Density of outlet (mg/m³) |
|---|---|---|---|---|---|---|---|---|
| DMC32 | 24 | 1.04-1.67 | 1500-2400 | 32 | Φ120×2000 | 0.032 | 200 | 50 |
| DMC48 | 36 | 1.15-1.62 | 2500-3500 | 48 | Φ120×2000 | 0.048 | ||
| DMC64 | 48 | 1.21-1.74 | 3500-5000 | 64 | Φ120×2000 | 0.064 | ||
| DMC80 | 60 | 1.25-1.67 | 4500-6000 | 80 | Φ120×2000 | 0.08 | ||
| DMC96 | 72 | 1.27-1.62 | 5500-7000 | 96 | Φ120×2000 | 0.096 | ||
| DMC112 | 84 | 1.28-1.68 | 6500-8500 | 112 | Φ120×2000 | 0.11 | ||
| DMC120 | 90 | 1.3-1.76 | 7500-9500 | 120 | Φ120×2000 | 0.12 | ||
| DMC168 | 126 | 2.54-2.87 | 9500-10500 | 168 | Φ120×2000 | 0.168 |
1. Presale service: choosing the most suitable equipment ,Freely designing the best technical
production process and design special product according to your demands
2. Medium-sales service:Inspect every part before production and deliver goods on schedule
3. Aftersales service: We sent engineer to the scene to guide installation, debugging and training operators.
Company Information

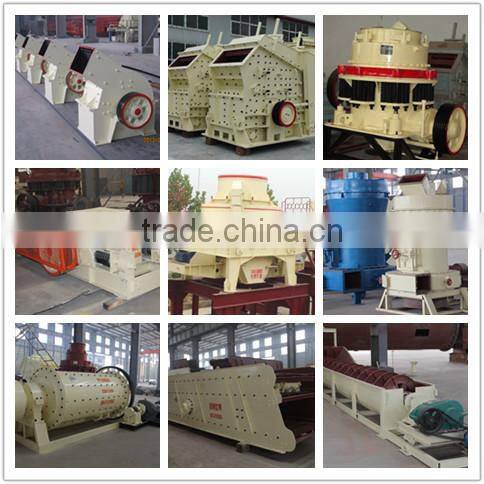

Henan Baichy Machinery Equipment Co., Ltd. was founded in 2003, and now it has been becoming a high-tech mining company. Our company integrates research and development, designing, manufacturing, sales and after-sales services. The brand products, cone crusher, sand making machine, high-efficient fine crusher, high-pressure medium-speed mill, vertical mill, micronizer, three-ring mill, ball mill, etc, are in the leading level of the world. Our company became the member of "CSSA Chinese gravel Association", and all the products have gained ISO9001: 2008 quality management system certificate and IQNet international certification.
Why chose us?
1. We Are Directly Selling Factory (Not Dealer):
- All machineries from Henan Baichy Machinery Equipment CO., LTD are made by ourselves with 11 years experience
- provided with lower price, good quality
- assured full after service.
2.Baichy Enterprise Culture:
- Enterprise objective: quality first, sustained development.
- Operation concept: focusing on quality, persisting in good faith.
- Operation principle: customer foremost, mutual-win objective.
We're looking forward to you inquiry on Dust Collector Bag Fabric
