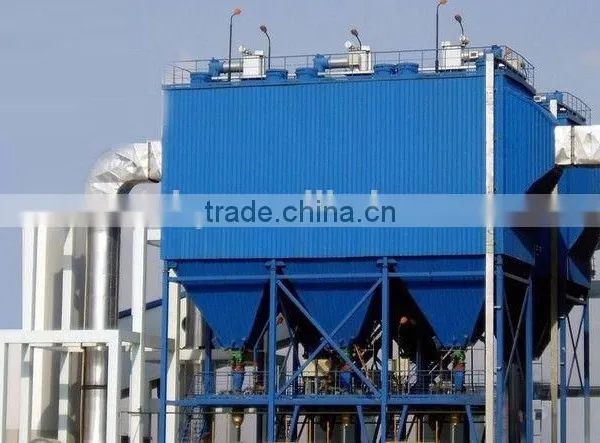

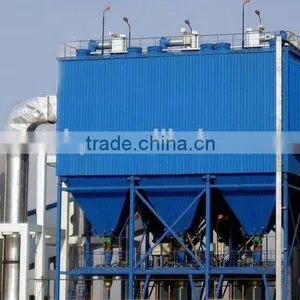

Industrial air cleaning equipment, DMC series dust collector
Brief introduction of industrial air cleaning equipment, DMC series dust collector
Pulse dust collector is a kind of high efficient collector which is designed on the base of overseas advanced technology. It adopts highly efficient off-line method, so it can clean dust with larger capacity, higher efficiency, lower system resistance, longer life of filter-bag ect. It is widely used to collect dust in grinder, crusher, packing machine, silo top, matching materials of cement industry. It can clean not only air with common dust, but air with high density(even 1300g/nm3), so it can collect final product of vertical mill and 0-sepa separator. It can be also widely used in grain, light industry, electric power, chemical industry, metallurgy, etc.

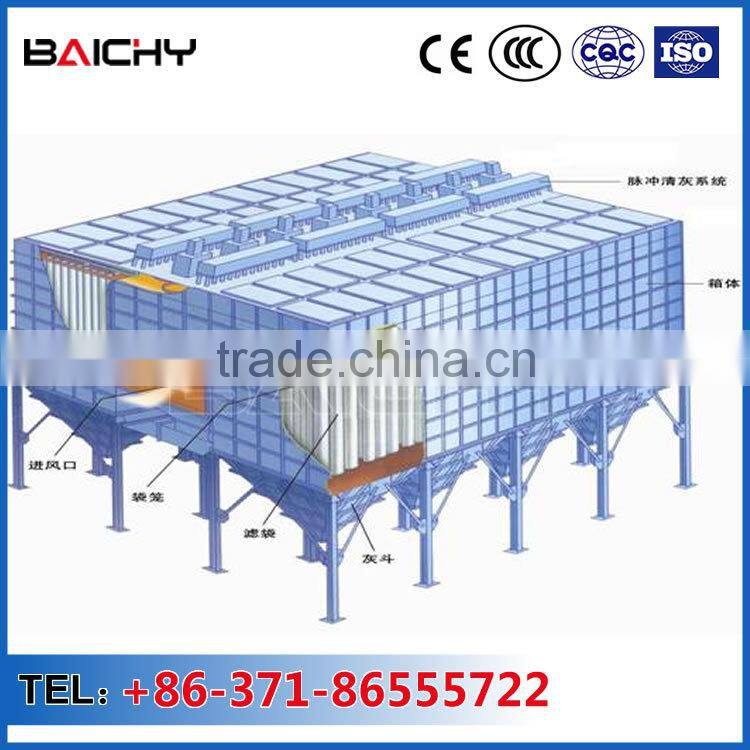

Woking principle of industrial air cleaning equipment, DMC series dust collector
After dust laden air enters the dust collector, due to sudden expanding airflow end and the role of air distribution plate, some of the large particle falls into hopper because of gravity and inertia;other small and tiny particle comes into filtering chamber, then deposits on media's outer surfaces because of brow-nianmotion and fiber interception. The clean air emerges into the cleaned air chamber and from there it is discharged. The resistance of dust collector increases in accordance with expanding of dust concentration.
When reaching a setpoint, the pulse valve of cleaning system jets a high speed&pressure airflow to clean the sut. That time PLC controls the open&close of the pulse valve. While opening, the compressed air in packet enters theinner of filter cartridge equably, creates immediate pressure and great surge,and dislodges the dust layer falling into container.
Features of industrial air cleaning equipment, DMC series dust collector
- Off-line method cleans dust and dust collecting efficiency can reach 99.99%, there is no second dust absorbing, so it is suitable to deal with smoke with high density, and it can directly collect product with high density;

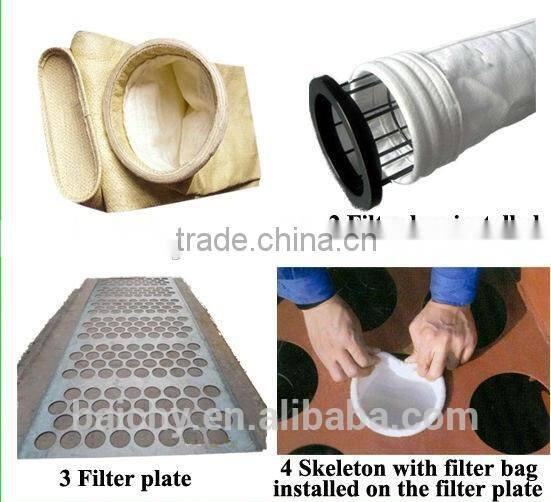

- Fliter material with high quality can meet any working condition;
- PLC intelligent controlling system can be operated easily, precisely and reliably;
- Gas tank structure and module manufacturing makes installation much easier;
- Advanced balancing wind design reduces operating resistance of dust collector.
1.Pre-sale services:
(1) Select equipment model;
(2) Design and manufacture products according to clients’ special requirement;
(3) Train technical personnel for clients.
2.Services during the sale:
(1)Pre-check and accept products ahead of delivery;
(2)help clients to draft solving plans.
3. After-sale services:
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site;
Welcome to visit our factory!
Welcome to inquiry about pulse dust collector!
