Specification of BLTB-75T stone hammer breaker
|
Model Parameter |
BLTB-75T |
|
Weight |
Kg |
450 |
Length |
mm |
1822 |
Required Oil Flow |
L/min |
50-90 |
Working Pressure |
Kg/cm² |
120-150 |
Impact Rate |
b.p.m |
400-800 |
Hose Diameter |
In |
1/2 |
Chisel Diameter |
mm |
75 |
Chisel Length |
mm |
750 |
Applicable Excavator |
m³ Ton |
0.2-0.35 6-9 |
BLTB-75T stone hammer breaker suit for 6-9 Ton excavator
Stone hammer breaker manufacturer's advantages
(1) Easy control, friendly used and easy position make it more convenient to excavator work.
(2) Top type outside bracket can highed up easily.
(3) the total length of breaker is higher than side type and box type, it is used for breaking high builidng or roof or something tall.
(4) The outside bracket for top breaker is easily for maintence.
BLTB-75T stone hammer breaker show
Trade show
BLTB-75T stone hammer breaker package
Stone hammer breaker is packed in vacuum packing and wooden packing
Payment term
Payment terms for BLTB75T stone hammer breaker
(1) T/T payment at sight-30% of payment in advance, and 70% of payment before shipment.
(2) With large quantity of goods in stock, we can send goods to customers fastly and delivery time is quite short.
Warranty of BLT-75T stone hammer breaker
(1) 12 months or (1500 hrs): Cylinder,Piston,Valve, Back head *
(2) 06 months or (1000 hrs): Front head *
(3) 03 months or (500 hrs): Front bush, Brackets *
(4) 01 month or (100 hrs): Chisel Pin, Accumulator *
Note: All the warranty covered from Invoice Date/ Hrs which ever is earlier and must for proper maintenance only.
Beilite Machinery Co., Ltd., is one of largest manufacturer of stone hammer breaker --hydraulic breaker in China; We offer a wide variety of stone hammer breaker --hydraulic breaker series to our customers. Namely Side type, Top (Open) type and Box-silenced type, there are more 12 different models for each type that range between light, medium and heavy duty.
Our stone hammer breaker --hydraulic breakers are currently exported to North and South America, Europe, Middle East and South East Asia. Such as India, Gothenburg, Turkey, Mauritius, Malaysia and so on.

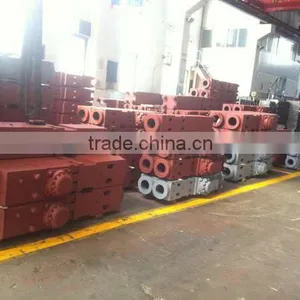

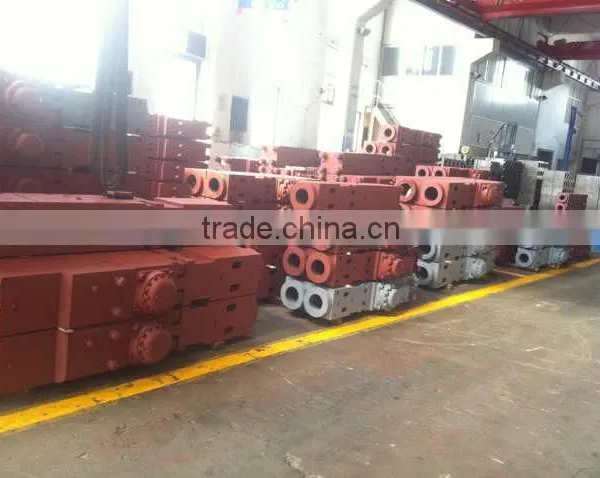

Workshop and equipment
Certification
Attention in using stone hammer breaker
Attention in using stone hammer breaker -- hydraulic hammer!!
1.Do not lift things with the stone hammer breaker -- hydraulic hammer. Lifting materials by hanging wire in the bracket or the chisel not only causes damage to the breaker but also is very dangerous when operating
2.On a hard and large rock, start breaking at an edge.Even a hard and big rock can be relatively easily broken when new stoneghammer breaker -- hydraulic hammer begins at a crack or an edge
3.Do not allow the stone hammer breaker -- hydraulic hammer to fall to stone hammer breaker -- hydraulic hammer to breaker a rock. Dropping the stone hammer breaker -- hydraulic hammer onto a rock will apply excessive force to stone hammer breaker -- hydraulic hammer or the base machine, causing damage to many parts of the breaker and the base machine.
Why choose BEILITE COMPANY as your best business partner?
(1)Be experienced to handle all of your question about breaking hammers,rebuilding and repair,heavy demolition tool bits,and the rock breaker parts.
(2)Help you choose the right hammer for your euipment,as well as help diagnose any issues you may be having with your rock breaking hammer.
* I am very interested, but need more reassurance. Can you help?
Absolutely- Our company (Original name is Wenling Beilite Machinery Co.,Ltd) have been assessed by CE and ISO Certification. Clients can download the certificates from our website. You also can verify the CE, Our CE NO. is CN.CE.1336-08114.
* You are a trader or a manufacturer?
We are a leading manufacturer of hydraulic breaker and its spare parts, and provide full support to our customers includes competitive price, after-sales services, fast delivery and ect.
* How can I be sure the part will fit my excavator?
Give us correct model number/ machine serial number / any numbers on the parts itself. Or measure the parts to give us dimension or drawing.
* How about the lead time?
We hold a great deal of breaker and spare parts in stock. The lead time is very short, usually in 7-10days after order confirmation.
* How about the package?
The goods are packed in strong fumigated wooden pallets or iron pallets. They could also packed according to customers request.
* How about the payment terms?
We usually accept T/T or L/C, other terms also could be negotiated.
Pls feel free to contact us!!!
