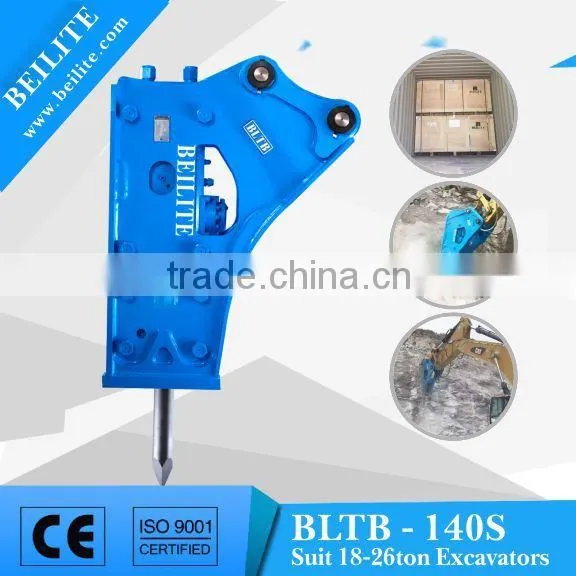

BLTB140A Excavator rock breaker with ISO9001 Quality Standard
(SKYPE ID: beilite7)
Part 1.Specification details of BLTB140 excavator breaker are listed as below for reference:
| BLTB140 Rock hammer | Box-silenced Type | Top Type | Side Type |
| Gross Weight (kg) | 1800 | 1750 | 1800 |
| Total Length (mm) | 2830 | 2820 | 2420 |
| Required Oil Flow (L/min) | 120-180 | 120-180 | 120-180 |
| Working Pressure (kg/cm2) | 160-180 | 160-180 | 160-180 |
| Impact Rate (b.p.m) | 350-500 | 350-500 | 350-500 |
| Hose Diameter (In) | 1 | 1 | 1 |
| Chisel Diameter (mm) | Φ 140 | Φ 140 | Φ 140 |
| Chisel Length (mm) | 1300 | 1300 | 1300 |
| Applicable Excavator (ton) | 18-26 | 18-26 | 18-26 |
Part 2.Applicable Excavator Brand and Model with BLTB140A hydraulic rock breaker:
| Excavator Model Type | BLTB140 Hydraulic rock breaker |
| KOMATSU | PC200,PC220 |
| HITACHI | EX210.EX220.ZX200.ZX210.ZX230.ZX240.ZX250 |
| CATPERRILAR (CAT) | 320.325 |
| DOOSAN DAEWOO | DH220.DH225.DH258 |
| KOBELCO | SK270,SK220,SK230 |
| VOLVO | EC210.EC240 |
| JONYANG | JY320 |
| HYUNDAL | R200.R210.R220.R215.R225.R245 |
| ATLAS | 2006LC.2106LC.2306LC |
| KATO | HD921.HD1023.HD1100 |
| LIEBHEER | R904.R914.R924 |
| SUMTOMO | S280,SH200,SH210,SH240 |
Part 3.Advantage for BLTB140A hydraulic rock breaker:
(1) Easy control, friendly used and easy position make it more convenient to excavator work.
(2) Top type outside bracket can highed up easily.
(3) the total length of breaker is higher than side type and box type, it is used for breaking high builidng or roof or something tall.

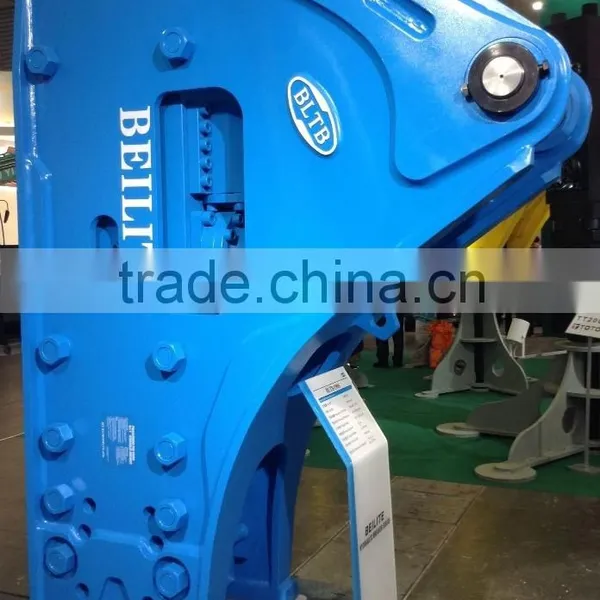

(4) The outside bracket for top breaker is easily for maintence.like pictures showing as follow:
Part 4.Payment terms for BLTB140A hydraulic rock breaker :
(1) T/T payment at sight-30% of payment in advance, and 70% of payment before shipment.
(1) With large quantity of goods in stock, we can send goods to customers fastly and delivery time is quite short.
(2)Standard Exported Wooden Case or as customers' requirement.
Part 1.Warranty period for BLTB140A hydraulic hammer:
(1) 12 months or (1500 hrs): Cylinder,Piston,Valve, Back head *
(2) 06 month or (1000 hrs): Front head *
(3) 03 month or (500 hrs): Front bush, Brackets *
(4) 01 month or (100 hrs): Chisel Pin, Accumulator *
Note:All the warranty covered from Invoice Date/ Hrs which ever is earlier and must for proper maintenance only*
Part 2.Attention in using BLTB140A hydraulic hammer
(1) Donot lift things with the breaker. Lifting materials by hanging wire in the bracket or the chisel not only causes damage to the breaker but also is very dangerous when operating.
(2) On a hard or large rock, start breaking at an edge. Even a hard and big rock can be relatively easily broken when hammering begins at a crack or an edge.
(3) Do not allow the breaker to fall to break a rock. Dropping the breaker onto a rock will apply excessive force to the breaker or the base machine, causing damage to many parts of breaker and the base machine.

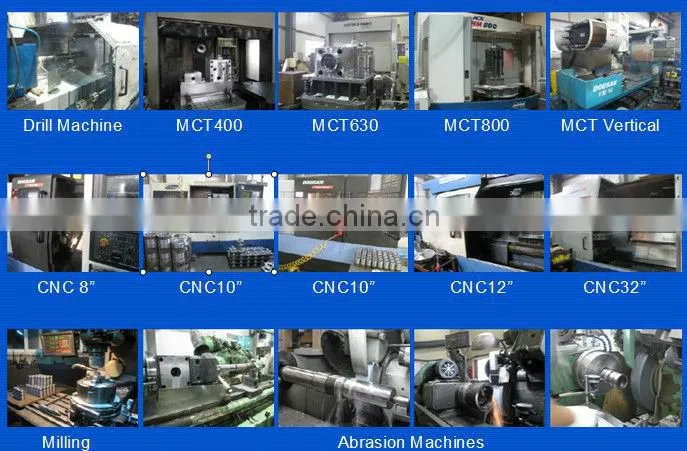

BLT Machinery Co., Ltd. is a leading manufacturer of hydraulic breakers and its spare parts,widely used in the construction,aggregate,demollition,and other mining industries.As actual manufacturer,we will play a manufacturer's advantage to provide full support to our customers include competitive price,after-sales services,fast delivery time and advertising and ect.
Waiting for your contact.Many thanks.
Beilite Machinery Co.,Ltd.
No.1 Hydraulic Breaker Manufacturer of China
Xinhe Industrial Zone,Wenling Ciyt,Zhejiang China
Tel: +86 0576-86520569 Fax: +86 0576-86534736
Mob: +86 183 5766 9912,
Hydraulic Breaker | Hydraulic Hammer | Excavator Mining Equipment | Spare Parts
