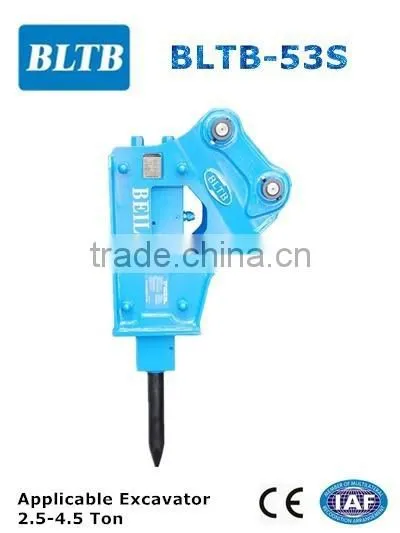

BLTB-53S hydraulic hammers with ISO9001 Quality Standard
Part 1.Specification details of BLTB-53 hydraulic hammers are listed for reference:
| BLTB-53 | Box-silenced Type | Top Type | Side Type |
| Gross Weight (kg) | 200 | 200 | 200 |
| Total Length (mm) | 1342 | 1400 | 1140 |
| Required Oil Flow (L/min) | 20-50 | 20-50 | 20-50 |
| Working Pressure (kg/cm2) | 90-120 | 90-120 | 90-120 |
| Impact Rate (b.p.m) | 600-1100 | 600-1100 | 600-1100 |
| Hose Diameter (In) | 1/2 | 1/2 | 1/2 |
| Chisel Diameter (mm) | Φ53 | Φ53 | Φ53 |
| Chisel Length (mm) | 530 | 530 | 530 |
| Applicable Excavator (ton) | 2.5-4.5 | 2.5-4.5 | 2.5-4.5 |
Part2.Advantage for BLTB hydraulic breakers:
(1) Easy control, friendly used and easy position make it more convenient to excavator work.
(2) Top type outside bracket can highed up easily.
(3) the total length of breaker is higher than side type and box type, it is used for breaking high builidng or roof or something tall.
(4) The outside bracket for top breaker is easily for maintence.like pictures showing as follow:
(1) With large quantity of goods in stock, we can send goods to customers fastly and delivery time is quite short.
(2)Standard Exported Wooden Case or as customers' requirement.
Part 1.Warranty period for BLTB hydraulic hammers:
(1) 12 months or (1500 hrs): Cylinder,Piston,Valve, Back head *
(2) 06 month or (1000 hrs): Front head *
(3) 03 month or (500 hrs): Front bush, Brackets *
(4) 01 month or (100 hrs): Chisel Pin, Accumulator *
Note:All the warranty covered from Invoice Date/ Hrs which ever is earlier and must for proper maintenance only*
Part 2.Attention in using BLTB hydraulic hammers:(1) Donot lift things with the breaker. Lifting materials by hanging wire in the bracket or the chisel not only causes damage to the breaker but also is very dangerous when operating.
(2) On a hard or large rock, start breaking at an edge. Even a hard and big rock can be relatively easily broken when hammering begins at a crack or an edge.
(3) Do not allow the breaker to fall to break a rock. Dropping the breaker onto a rock will apply excessive force to the breaker or the base machine, causing damage to many parts of breaker and the base machine.
Beilite Machinery Co., Ltd. is a leading manufacturer of hydraulic breakers and its spare parts,widely used in the construction,aggregate,demollition,and other mining industries.As actual manufacturer,we will play a manufacturer's advantage to provide full support to our customers include competitive price,after-sales services,fast delivery time and advertising and ect.
(1)Be experienced to handle all of your question about breaking hammers,rebuilding and repair,heavy demolition tool bits,and the rock breaker parts.
(2)Help you choose the right hammer for your euipment,as well as help diagnose any issues you may be having with your rock breaking hammer.
(3)Continuely develop new hammer for customers:
New Hydraulic hydraulic hammer series --excavator hydraulic hammers with autolub system:
(4)Hydraulic Breakers with ISO9001 and CE Certification:
Certification:
Waiting for your contact.Many thanks.
