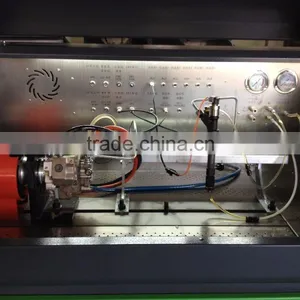

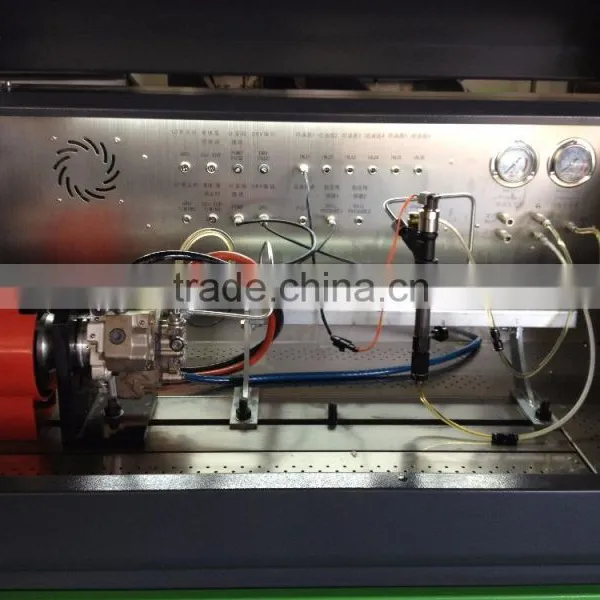

Common Rail Injector Testor JZ-6000 BOSCH DENSON
US$ 4,900 - 5,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Injector
Size:
Standard Size
Car Make:
Diesel Engine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shandong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Commom Rail Injector Bench Testor JZ-6800 BOSCH DENSON DELPHI ExperimentsUS$ 4,900 - 5,000MOQ: 1 Piece -
Car Disc Brake Pad / Pads for Toyota Honda Mitsubishi in Semi Metal Low Metal CeramicUS$ 2 - 2MOQ: 100 Sets
-
Ignition Spark Plug B12-04US$ 1 - 2MOQ: 1 Piece
-
Common Rail Testor JZ-1000 Bosch Denso Simens InjectorsUS$ 4,900 - 5,000MOQ: 1 Piece
-
Common Rail Injector Testor HEUI680 C7 C9 InjectorUS$ 4,900 - 5,000MOQ: 1 Piece
Type
Injector
Size
Standard Size
Car Make
Diesel Engine
OE NO.
JZ-6000
Place of Origin
Shandong, China
Brand Name
Qijia
Model Number
Common Rail Injector Testor JZ-6000
Warranty
3 Months
Products Description

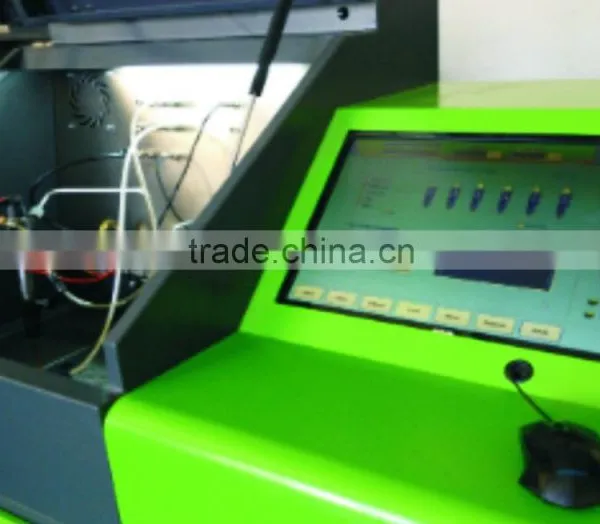

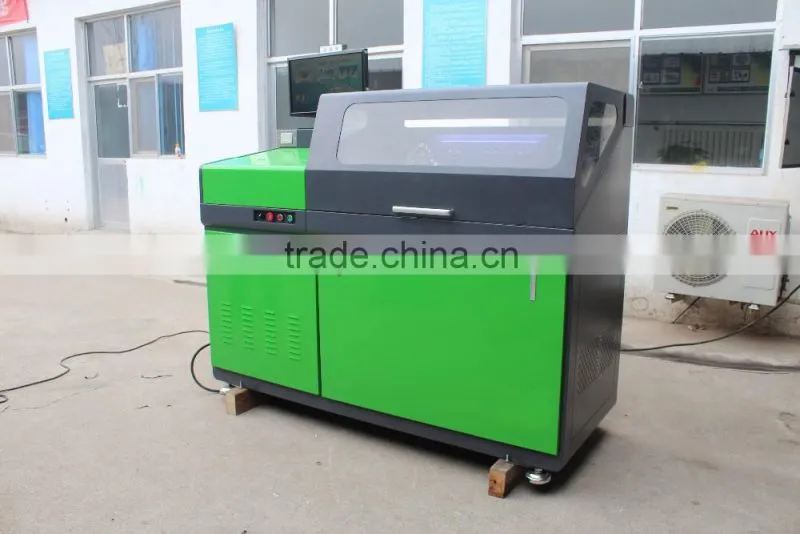

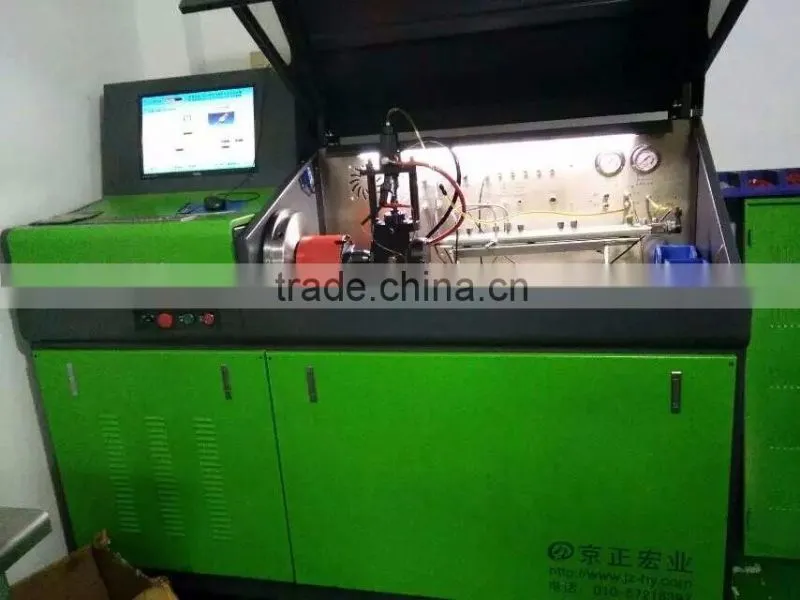

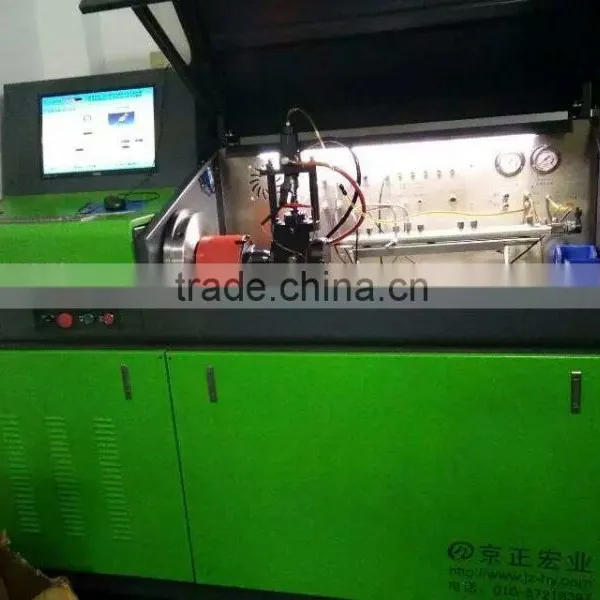

JZ-6000 adopts full-automatic control, and can perform maintenance test of Euro Ⅲ, EuroⅣ,
EuroⅤinjector and high-pressure pump conveniently. It can test hundreds of kinds of injector and
high-pressure pump including BOSCH, SIEMENS, DELPHI, DENSO, Caterpillar etc. with complete
experimental data. This test bench, integrated with original imported high-precision flow sensor,
has functions: automatic measurement of oil quantity and automatic generation of fuel pump
nozzle maintenance report etc..
Product can add module for EUP/EUI test.
Main motor :Shanghai "Weihu" Converter :"LK" ,"QMA", " FRENIC "
pump :Bosch Original CP3 fuel rail:Bosch Original with DRV fuel rail
Low pressure hose :Korean APH heatresisting and high tensile oil tube
Injector sensor: Original import sensor Pump sensor :High-precision gear glow sensor
Display : Brand new HD LED display
Filter: Euro III Special Filter
pump :Bosch Original CP3 fuel rail:Bosch Original with DRV fuel rail
Low pressure hose :Korean APH heatresisting and high tensile oil tube
Injector sensor: Original import sensor Pump sensor :High-precision gear glow sensor
Display : Brand new HD LED display
Filter: Euro III Special Filter
Temperature Control System :Efficient and intelligent heating and cooling group

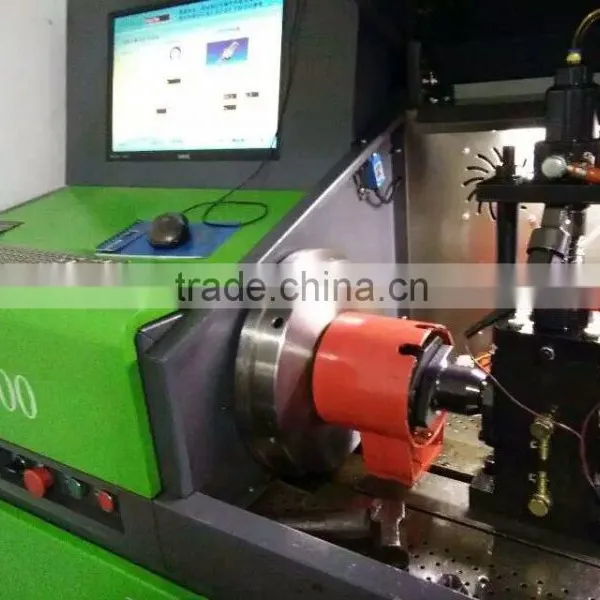

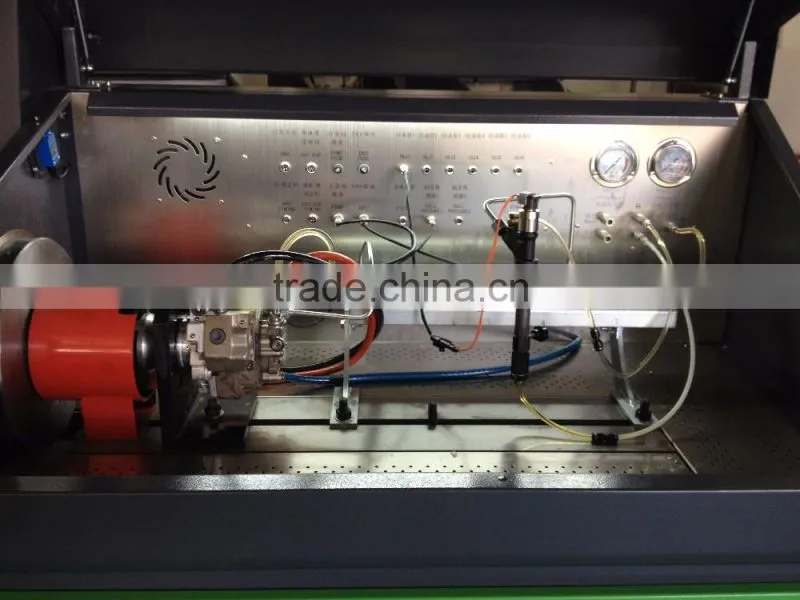

Pump test
Can drive different kinds of high-pressure pumps like Bosch CP1/CP2/CP3, Delphi CRSP, Denso
HP3/HP4, Siemens DCP and Denso HP0 pump.
Test bench RPM, Automatic steering control, Automatic rail pressure regulation, the maximum can
reach 2000Bar,can stabilize within 10Bar, and can measure oil amount and generates report
automatically.
After comparing experimental data of hundreds of kinds of pump, it can automatically judge the
pump to be tested is good or not via reports.
All high pressure pump drive channels have short circuit protection function.
Product Configuration
1.Output power:11KW 2.Main motor speed control:0-1800 rpm 3.Speed control mode:converter control
4.Power parameters:three-phase four wire 380V 50/60HZ 5.Fuel temperature 40±2°6.Tank volume：30L
7.Temperature contorol system：High efficiency intelligent heating cooling group，air conditioning cooling（optional）
8.Maximum rail pressure：2000par 9.Injector flow sensor:Imported eliptical type flow sensor
10.Pump flow sensor：Original blade type flow sensor 11.Filter accuracy：＜5um
12.Dimensions:1900*820*1550mm 13:Net weight：580KGS
Packing&Shipping
Packaging & Shipping
1). Each valve will be packed in a plastic box
2). Then 1pcs in one bag.
3). 100 pcs per bag in one carton
4). Stocked products will be delivered within 5 days after get the payment.
5). Out of stock products will be delivered within 10-20 days.
6). Large order depends on the production plan.
Company Description
Main Products for our company :
Chongqing Zenchum Commerce Co., Ltd is foreign trade company was authorized by manufacturer with ISO and TS16949, specializing in producing high accuracy and stable good quality diesel engines spare parts. Our main products as following :
1. Delphi common rail injector control valve:9308-621C,9308-622B,625C(under developing)
2.Bosch Common rail injector valve assembly
3.DENSO injector spacer BF15
4.Bosch injector and DENSO injector
5.Common rail nozzles and SM,P,PN,DN,S -type nozzles
6.Pump head rotor
7.Pump metering valve8.Pressure limiting valve9.Pressure sensor
10.Pump plunger
11.Delivery valve
12.Gasket kits: copper washer & shims and spring
13.Valve seat for F00VC01334
14.Full type spacer and pin.
